Duct Air Temperature Sensor Replacement - Upper Right Side

Duct Air Temperature Sensor Replacement - Upper Right Side

Removal Procedure

1. Remove the instrument panel (I/P) assembly. Refer to Instrument Panel Assembly Replacement Instrument Panel Assembly Replacement.

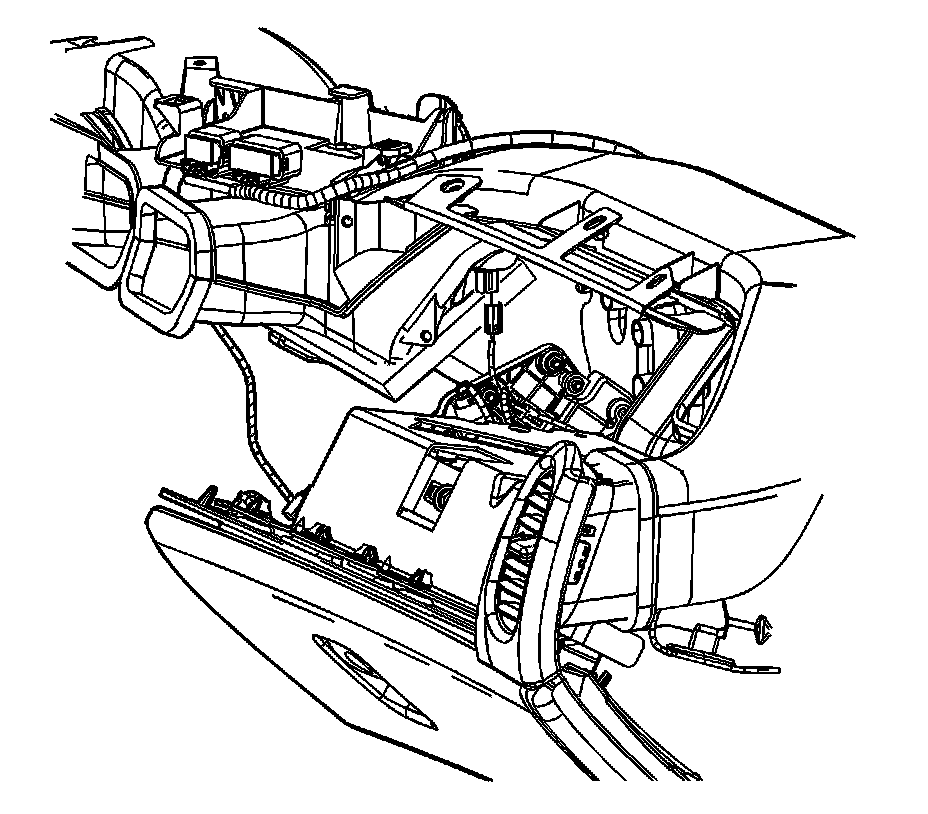

2. Disconnect the right upper air temperature sensor electrical connector.

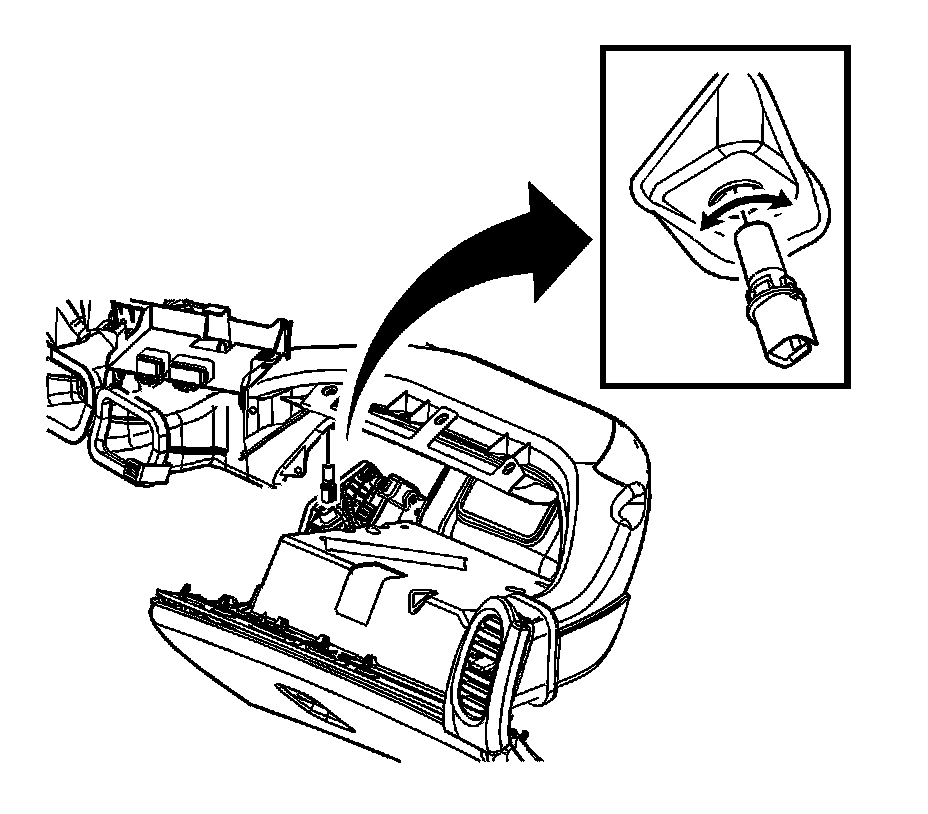

3. Remove the right upper air temperature sensor from the air distribution duct.

Installation Procedure





1. Install the right upper air temperature sensor to the air distribution duct.





2. Connect the right upper air temperature sensor electrical connector.

3. Install the I/P assembly. Refer to Instrument Panel Assembly Replacement Instrument Panel Assembly Replacement.
