Outside Rearview Mirror Housing Cover Replacement
Outside Rearview Mirror Housing Cover Replacement
Removal Procedure
Warning:
Refer to Glass and Sheet Metal Handling Warning Glass and Sheet Metal Handling Warning
1. Remove the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement Outside Rearview Mirror Glass Replacement.

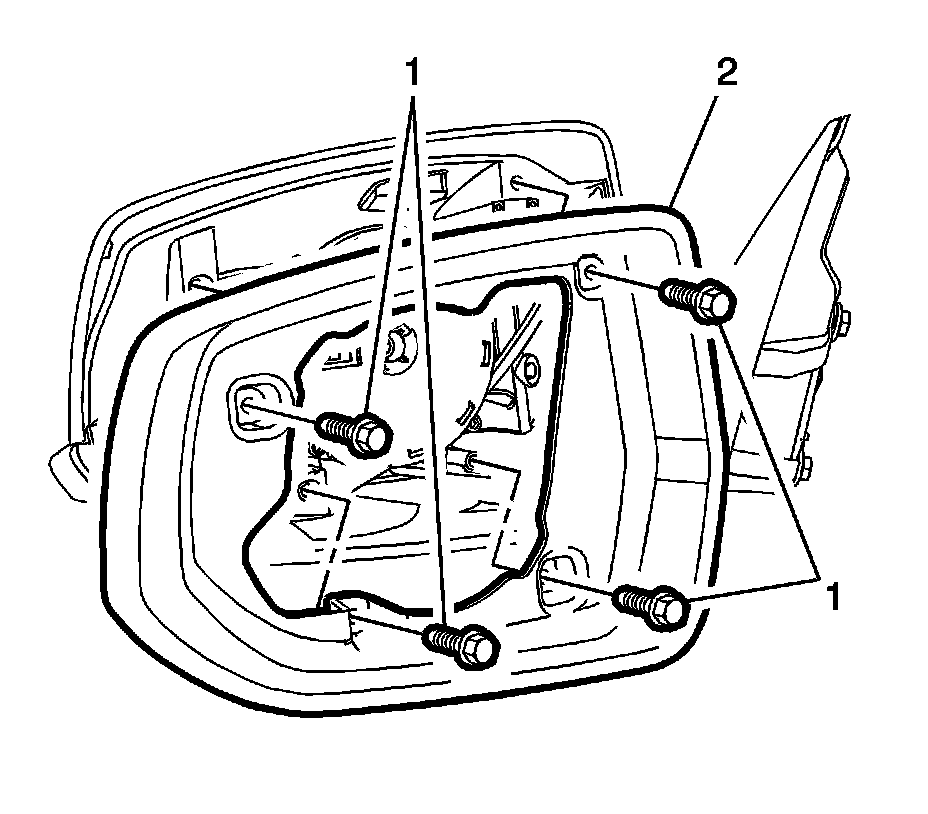

2. Remove the four screws (1) from the outside rearview mirror bezel (2).
Note:
Do not remove screw (1) from the inside edge of the mirror housing.

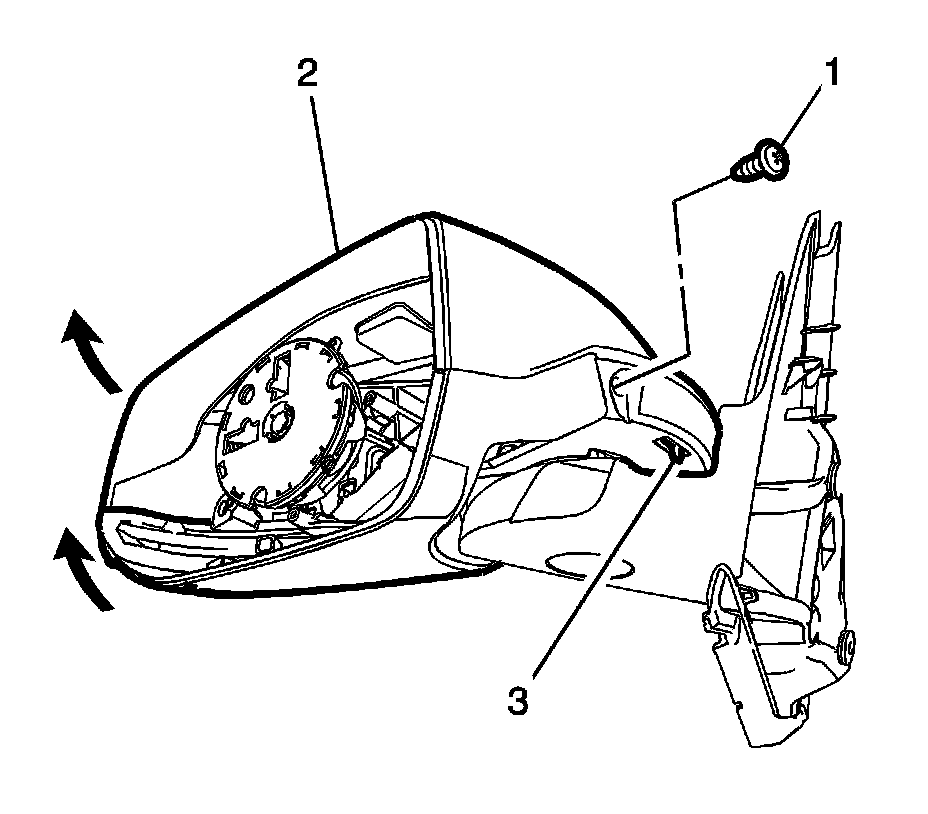

3. Grasp the outside rearview mirror housing (2), turn the assembly clock-wise exposing the retaining clip (3) which is located under the mirror housing.
Note:
The retaining clip (2) must be fully released before pulling upward on the mirror housing.

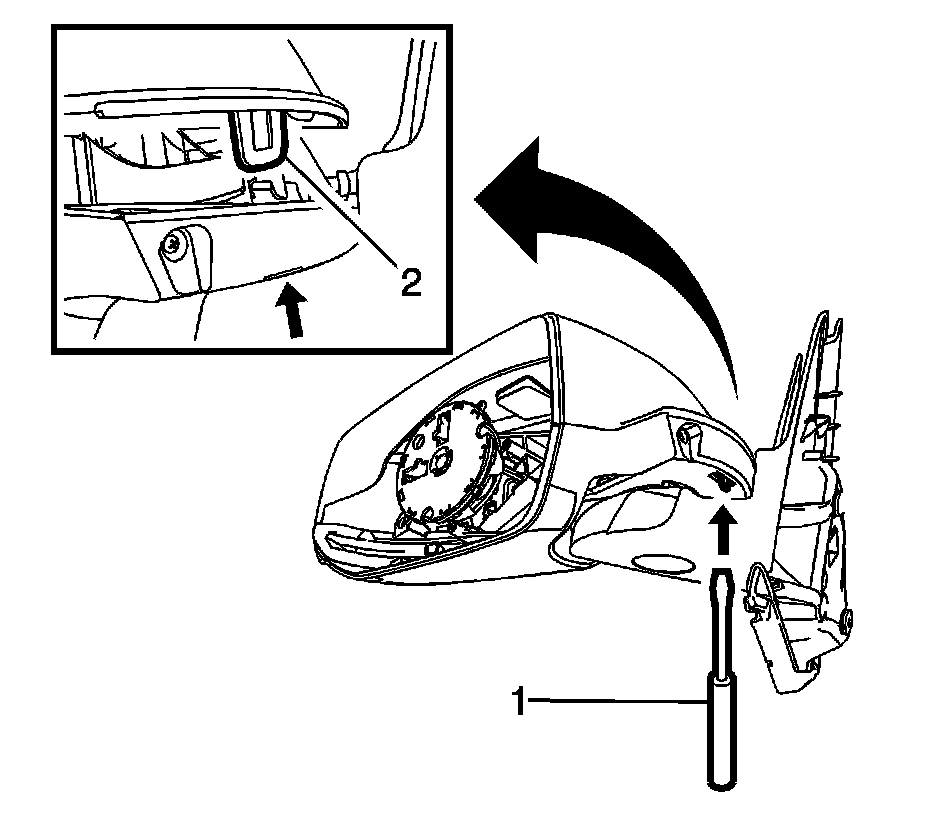

4. From under the mirror housing insert a suitable tool (1) in the opening then push upward releasing the retaining clip (2) from the assembly.
5. Remove the mirror housing cover (1).
Installation Procedure

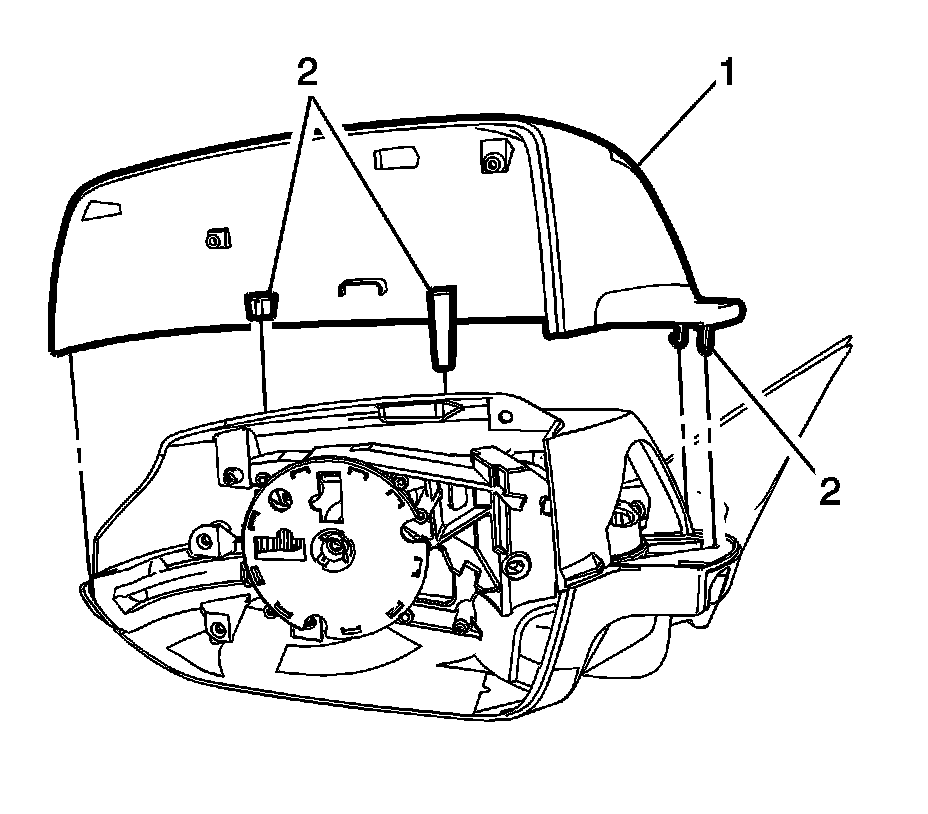

1. Align the mirror housing cover retaining clips (2) with the base of the outside rearview assembly, push downward until the housing cover is fully seated into the outside rearview base.
Caution:
Refer to Fastener Caution Fastener Caution
2. Install the four screws (1) to the outside rearview mirror housing bezel (2), tighten the fastener to 5 Nm (44 lb in)..
3. Place the outside rearview mirror to the full rearview position.
4. Install the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement Outside Rearview Mirror Glass Replacement.
5. Inspect the mirror for proper operation.
