Auxiliary Water Pump
Auxiliary Water Pump

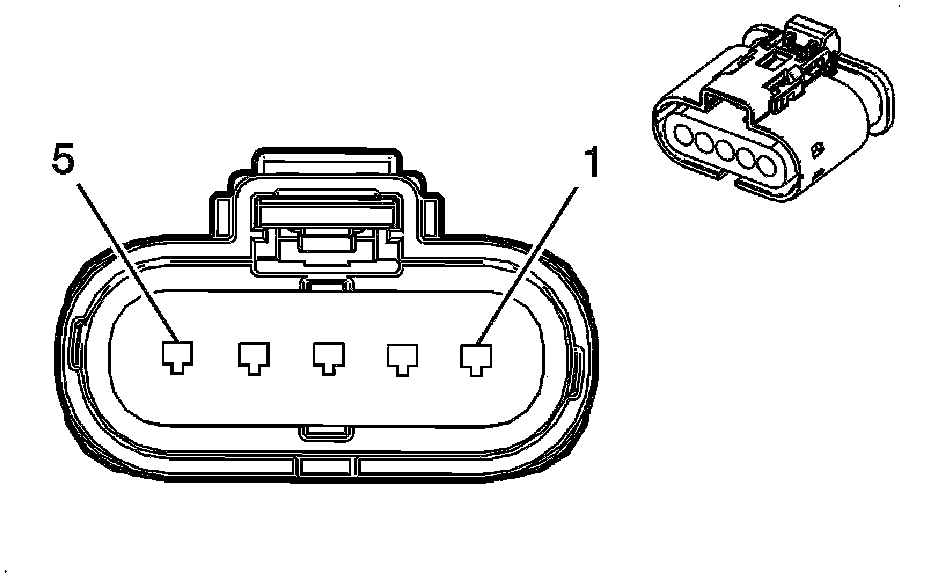

Component Connector End Views

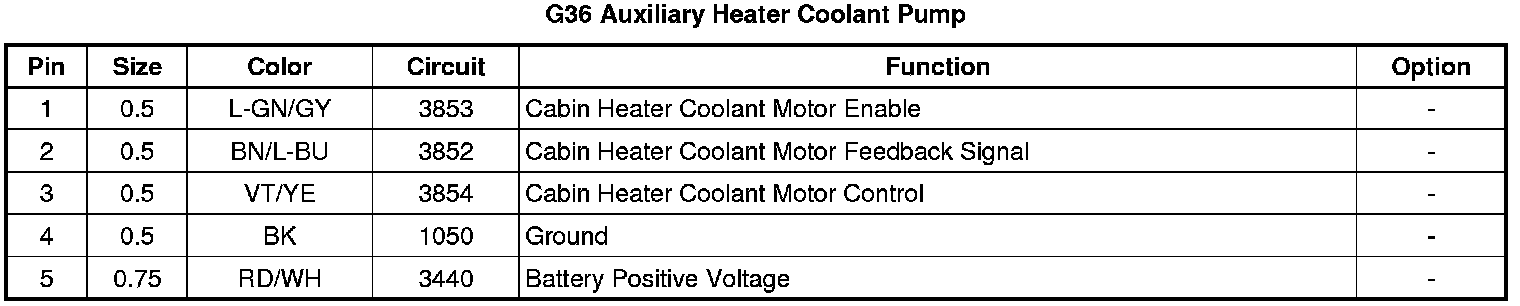

G36 Auxiliary Heater Coolant Pump
