Volt L4-1.4L Elect
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Console
Console
Component Connector End Views

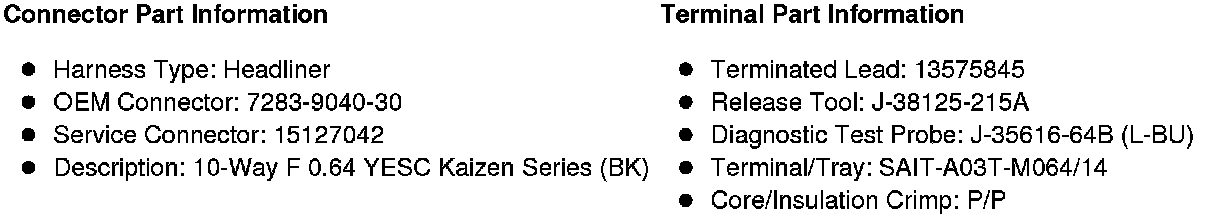

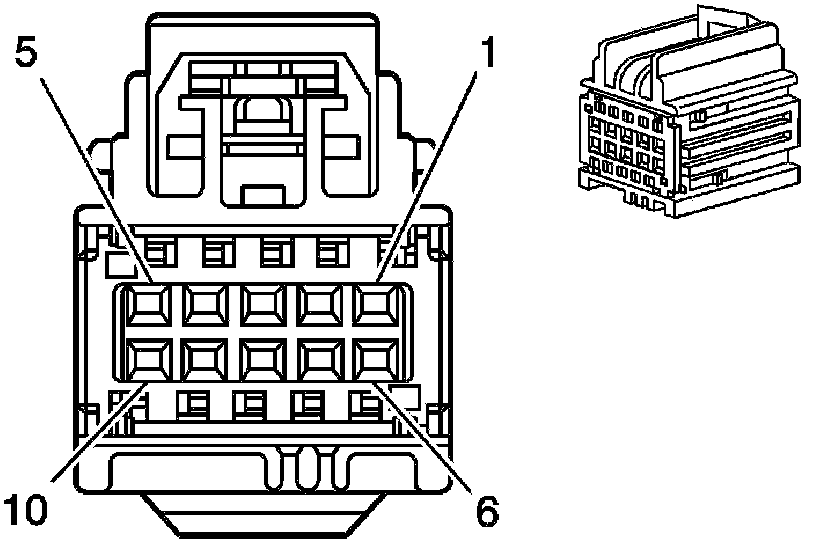

S48B Multi-Function Switch - Overhead Console
