Driver / Vehicle Information Display Switch
Driver / Vehicle Information Display Switch
Component Connector End Views

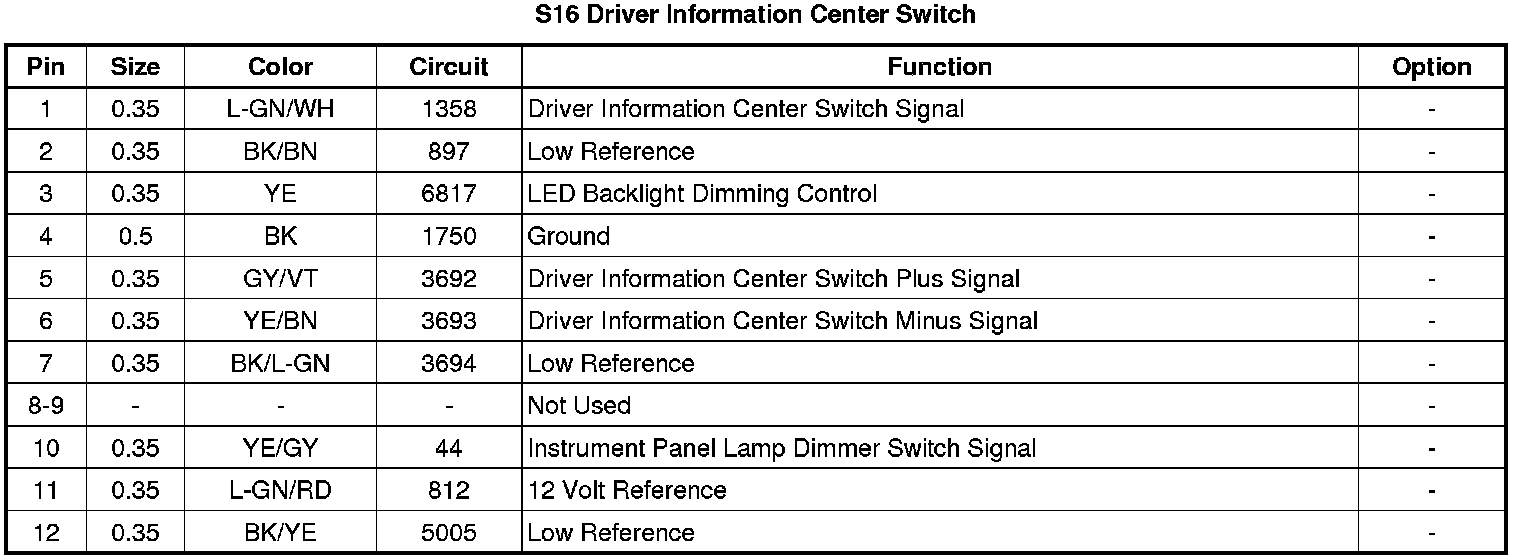

S16 Driver Information Center Switch
