Leak Detection Pump, Evaporative System
Leak Detection Pump, Evaporative System
Component Connector End Views

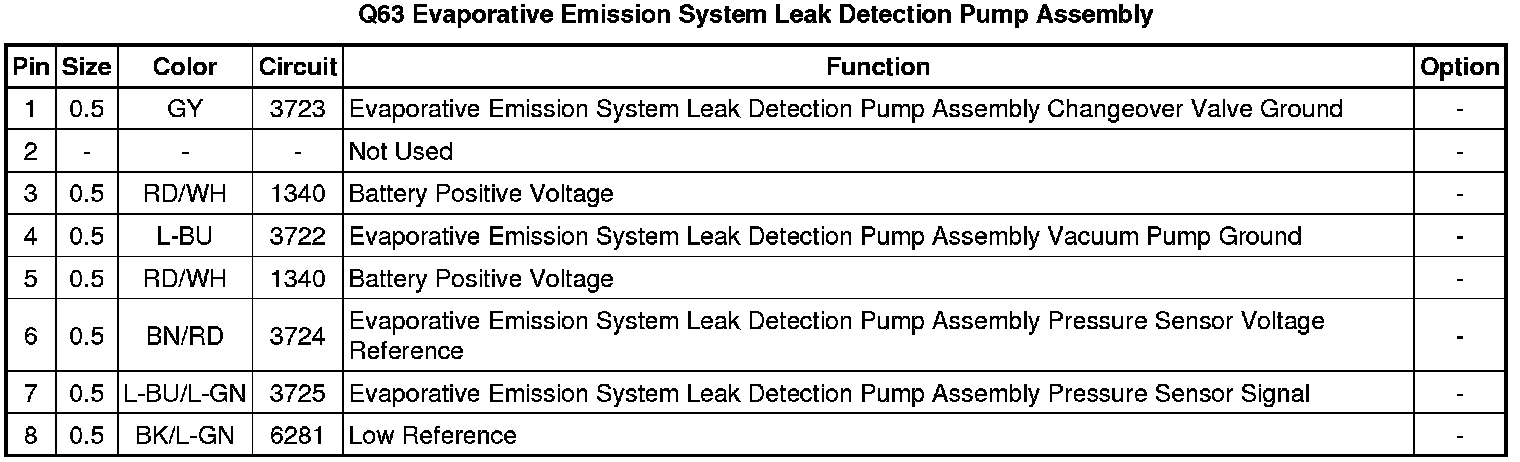

Q63 Evaporative Emission System
Leak Detection Pump
Assembly
