Home
>>
Chevrolet
>>
2012
>>
Volt L4-1.4L Elect
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Start / Stop Switch
Start / Stop Switch

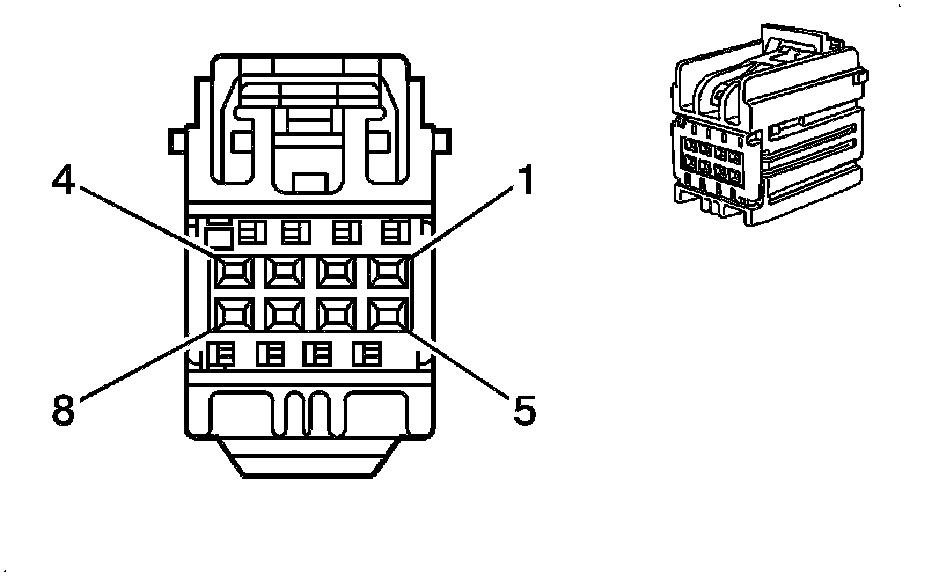

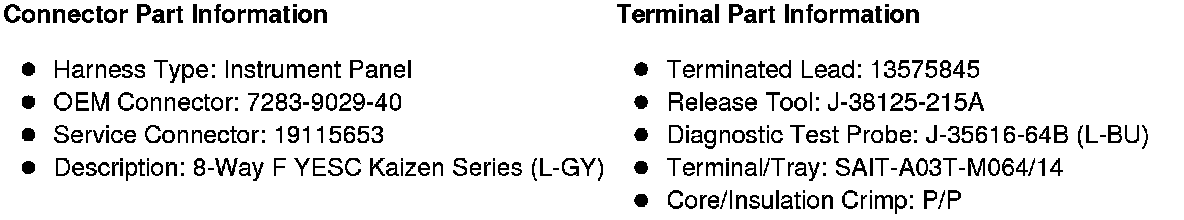

Component Connector End Views

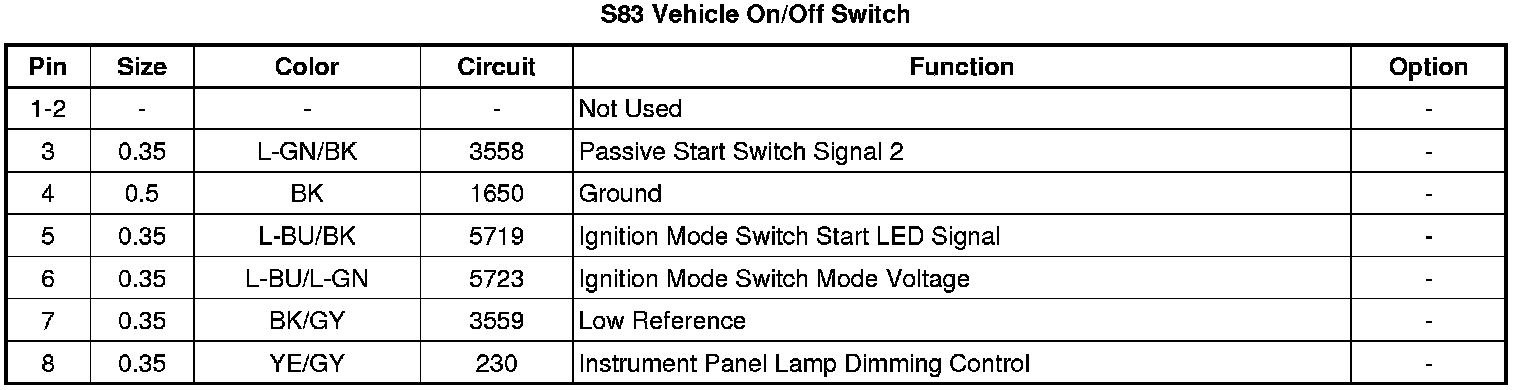

S83 Vehicle On/Off Switch
