Transmission Speed Sensor, A/T

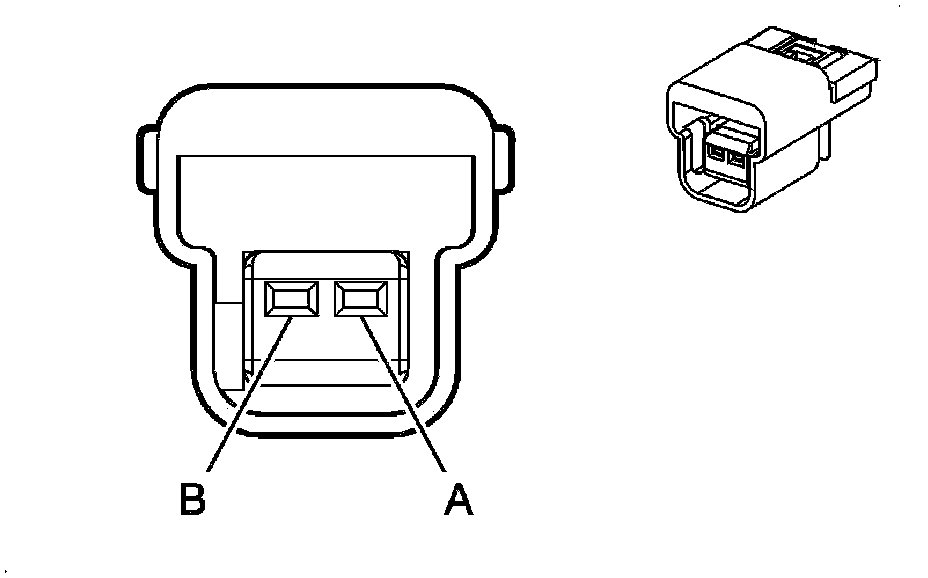

Component Connector End Views

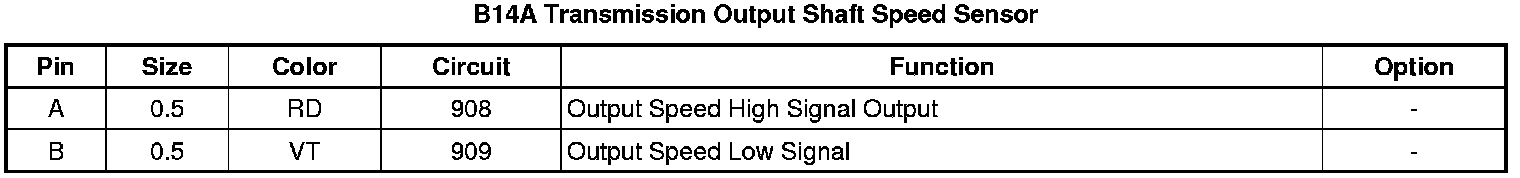

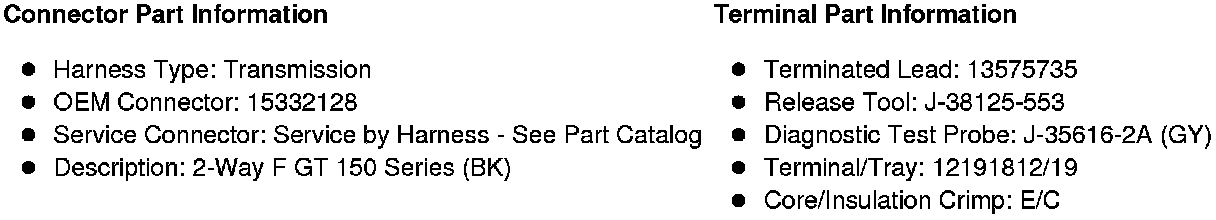

B14A Transmission Output Shaft Speed Sensor
