Water Pump, Electric Drive
Water Pump, Electric Drive

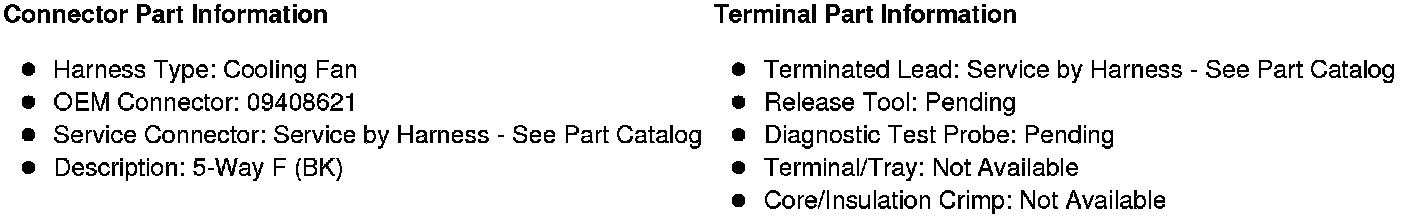

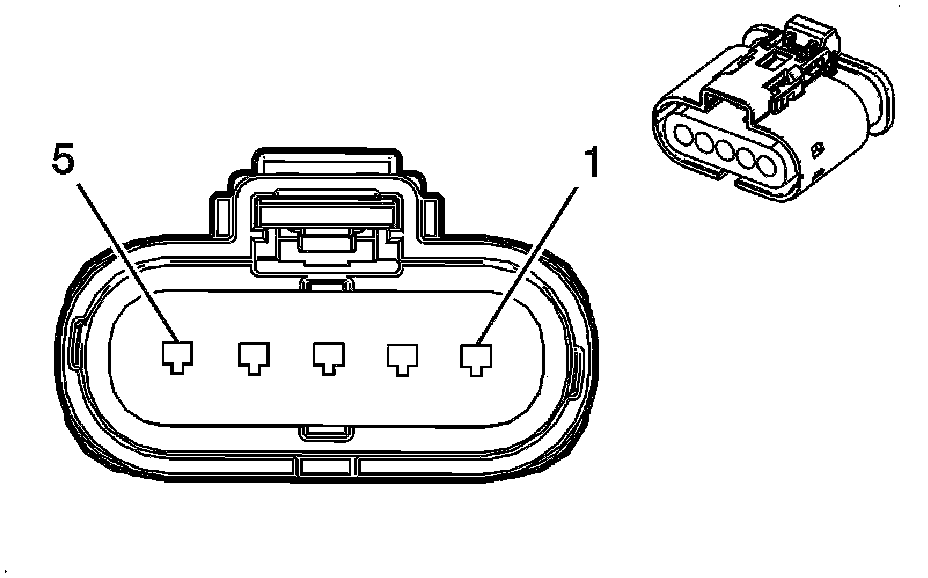

Component Connector End Views

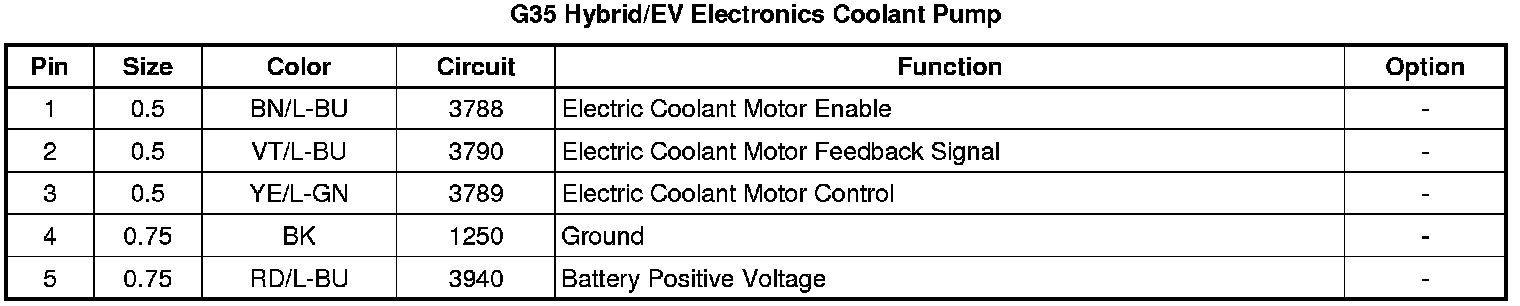

G35 Hybrid/EV Electronics Coolant Pump
