Underbody Harness Routing
Harness Routing Views

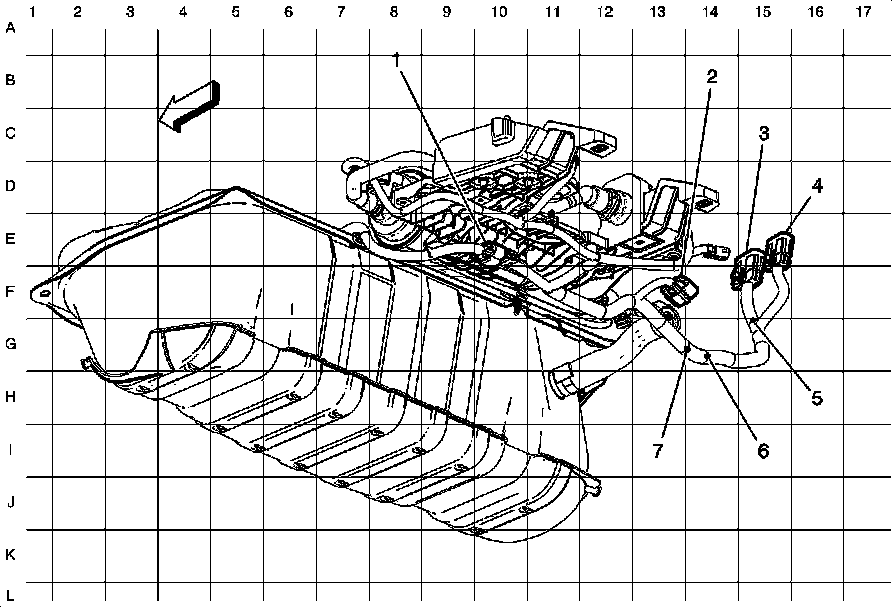

Underbody Harness Routing
1
- X354
2
- X355
3
- X350
4
- X351
5
- J375
6
- J376
7
- J377
