Engine: Locations

Disassembled Views

Accessory Drive Components




1 - Water Pump Belt
2 - Water Pump Pulley Bolt
3 - Water Pump Pulley
4 - Water Pump Bolt
5 - Water Pump
6 - Crankshaft Balancer
7 - Crankshaft Balancer Bolt

Engine Front Cover And Oil Pump Assembly (1 of 2)




1 - Camshaft Position Actuator Solenoid Valve Bolt
2 - Intake Camshaft Position Actuator Solenoid Valve
3 - Exhaust Camshaft Position Actuator Solenoid Valve
4 - Intake Camshaft Position Sensor Bolt
5 - Intake Camshaft Position Sensor
6 - Intake Camshaft Position Sensor Seal Ring
7 - Engine Front Cover
8 - Engine Front Cover Gasket
9 - Exhaust Camshaft Position Sensor Seal Ring
10 - Exhaust Camshaft Position Sensor
11 - Exhaust Camshaft Position Sensor Bolt
12 - Engine Front Cover Oil Gallery Plug
13 - Engine Front Cover Oil Gallery Plug Seal Ring
14 - Oil Pressure Relief Valve Piston
15 - Oil Pressure Relief Valve Spring
16 - Oil Pressure Relief Valve Plug
17 - Oil Pan Sealing
18 - Engine Front Cover Bolt (M10)
19 - Crankshaft Front Oil Seal
20 - Engine Front Cover Bolt (M6)
21 - Water Drain Plug Seal Ring
22 - Water Drain Plug
23 - Exhaust Camshaft Position Actuator Solenoid Valve Bolt

Engine Front Cover And Oil Pump Assembly (2 of 2)




1 - Oil Pump Cover Bolt
2 - Oil Pump Cover
3 - Oil Pump Vane Ring
4 - Oil Pump Vane Rotor
5 - Oil Pump Vane
6 - Oil Pump Slide Spring Pin
7 - Oil Pump Slide Spring
8 - Oil Pump Slide Pivot Pin
9 - Oil Pump Slide Seal
10 - Oil Pump Slide Seal Spring
11 - Oil Pump Slide
12 - Oil Pump Vane Ring

Timing Chain Components




1 - Timing Chain Tensioner Bolt
2 - Timing Chain Tensioner
3 - Timing Chain Tensioner Shoe
4 - Camshaft Timing Chain
5 - Intake Camshaft Sprocket Bolt (With Actuator)
6 - Intake Camshaft Position Sensor Exciter Wheel
7 - Intake Camshaft Sprocket (With Position Actuator)
8 - Upper Timing Chain Guide Bolt
9 - Upper Timing Chain Guide
10 - Exhaust Camshaft Sprocket (With Position Actuator)
11 - Exhaust Camshaft Position Sensor Exciter Wheel
12 - Exhaust Camshaft Sprocket Bolt (With Actuator)
13 - Timing Chain Guide Pivot Pin
14 - Crankshaft Sprocket
15 - Timing Chain Guide Right Side
16 - Timing Chain Guide Bolt
17 - Timing Chain Tensioner Shoe Bolt

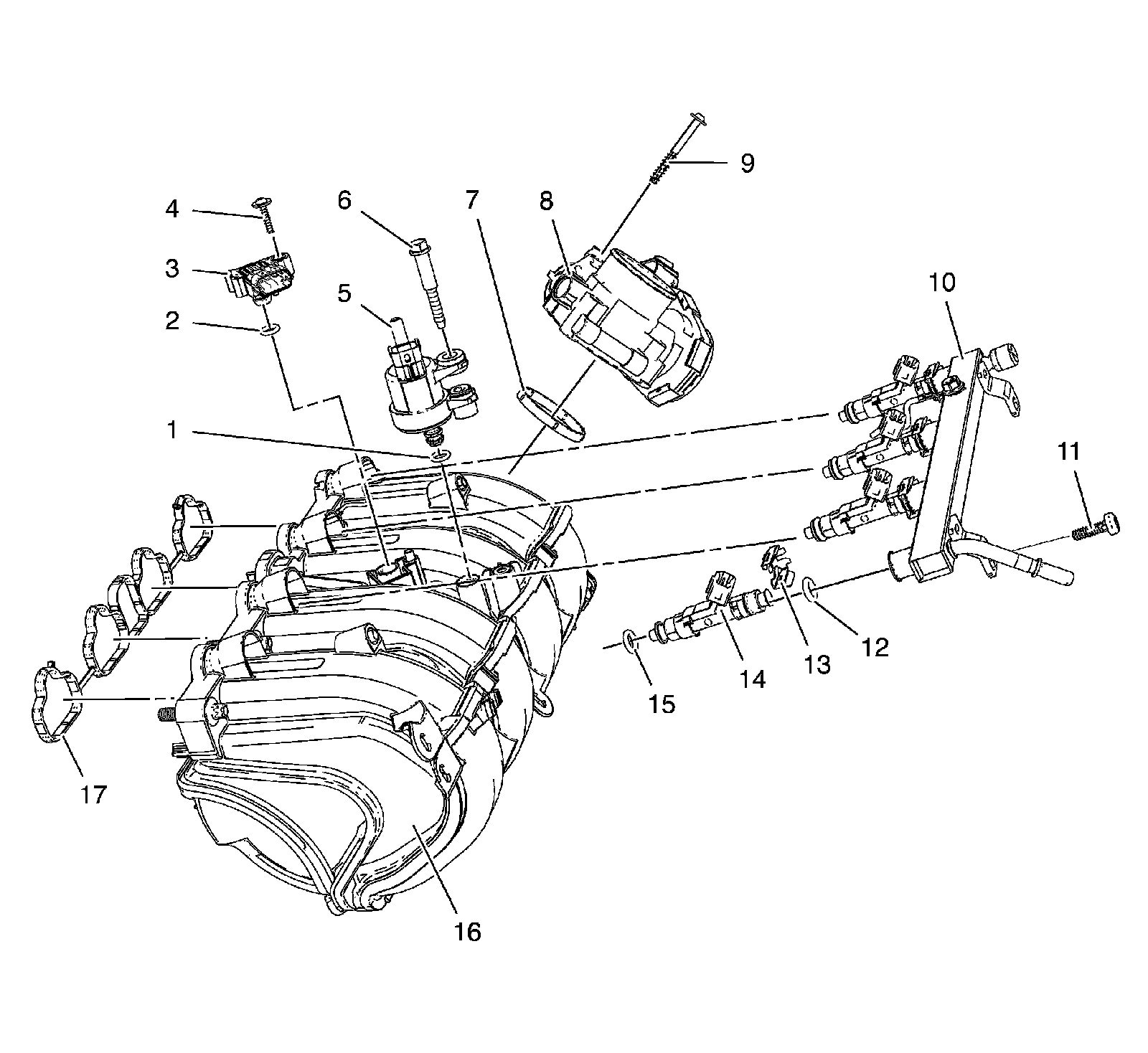

Intake Manifold Assembly




1 - Evaporative Emission Canister Purge Solenoid Valve Seal Ring
2 - Manifold Absolute Pressure Sensor Seal Ring
3 - Manifold Absolute Pressure Sensor
4 - Manifold Absolute Pressure Sensor Bolt
5 - Evaporative Emission Canister Purge Solenoid Valve
6 - Evaporative Emission Canister Purge Solenoid Valve Bolt
7 - Throttle Body Seal Ring
8 - Throttle Body
9 - Throttle Body Bolt
10 - Fuel Injection Fuel Rail
11 - Fuel Injection Fuel Rail Bolt
12 - Fuel Injector Seal Ring
13 - Fuel Injector Retainer Clamp
14 - Fuel Injector
15 - Fuel Injector Seal Ring
16 - Intake Manifold
17 - Intake Manifold Gasket

Cylinder Head Assembly




1 - Camshaft Cover
2 - Oil Level Indicator
3 - Camshaft Cover Bolt
4 - Oil Filler Cap
5 - Oil Filler Cap Seal Ring
6 - Camshaft Cover Gasket
7 - Camshaft Bearing Cap Bolt
8 - Camshaft Bearing Cap
9 - Cylinder Head Bolt
10 - Valve Keys
11 - Valve Spring Retainer
12 - Valve Spring
13 - Engine Lift Bracket Left Side
14 - Engine Lift Bracket Bolt
15 - Cylinder Head
16 - Intake Valve
17 - Exhaust Valve
18 - Engine Lift Bracket
19 - Engine Lift Bracket Bolt
20 - Engine Lift Bracket
21 - Engine Lift Bracket Bolt
22 - Oil Pressure Indicator Switch
23 - Oil Pressure Indicator Switch Seal Ring
24 - Hydraulic Valve Lash Adjuster
25 - Hydraulic Valve Lash Adjuster Arm
26 - Exhaust Camshaft
27 - Intake Camshaft

Engine Block Assembly




1 - Transmission Guide Sleeve
2 - Transmission Guide Sleeve
3 - Cylinder Head Guide Sleeve
4 - Engine Block
5 - Cylinder Head Guide Sleeve
6 - Knock Sensor
7 - Knock Sensor Bolt
8 - Upper Crankshaft Thrust Bearing
9 - Upper Crankshaft Bearing
10 - Crankshaft
11 - Lower Crankshaft Bearing
12 - Lower Crankshaft Thrust Bearing
13 - Crankshaft Bearing Cap Tie Plate
14 - Crankshaft Bearing Cap Tie Plate Bolt (M10)
15 - Oil Pan
16 - Oil Pan Bolt
17 - Oil Pan Drain Plug Seal Ring
18 - Oil Pan Drain Plug
19 - Crankshaft Position Sensor Bolt
20 - Crankshaft Position Sensor
21 - Crankshaft Position Sensor Seal Ring
22 - Crankshaft Bearing Cap Tie Plate Bolt (M8)
23 - Crankshaft Position Sensor Reluctor Ring
24 - Flex Plate Bolt
25 - Flex Plate Bolt Washer
26 - Flex Plate
27 - Crankshaft Rear Oil Seal
28 - Crankshaft Position Sensor Reluctor Ring Bolt
29 - Connecting Rod Bearing Cap Bolt
30 - Connecting Rod Bearing Cap
31 - Lower Connecting Rod Bearing
32 - Upper Connecting Rod Bearing
33 - Connecting Rod
34 - Piston Pin
35 - Piston
36 - Piston Oil Ring (With Oil Ring Spacer)
37 - Lower Compression Ring
38 - Upper Compression Ring
