Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2012
>>
Volt L4-1.4L Elect
>>
Repair and Diagnosis
>>
Hybrid Drive Systems
>>
Diagrams
>>
Connector Views
Connector Views
Component Connector End Views

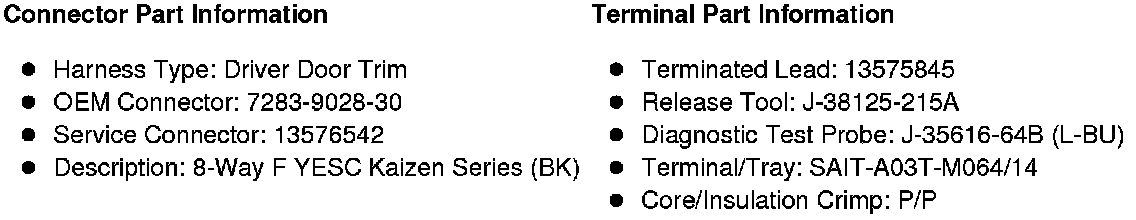

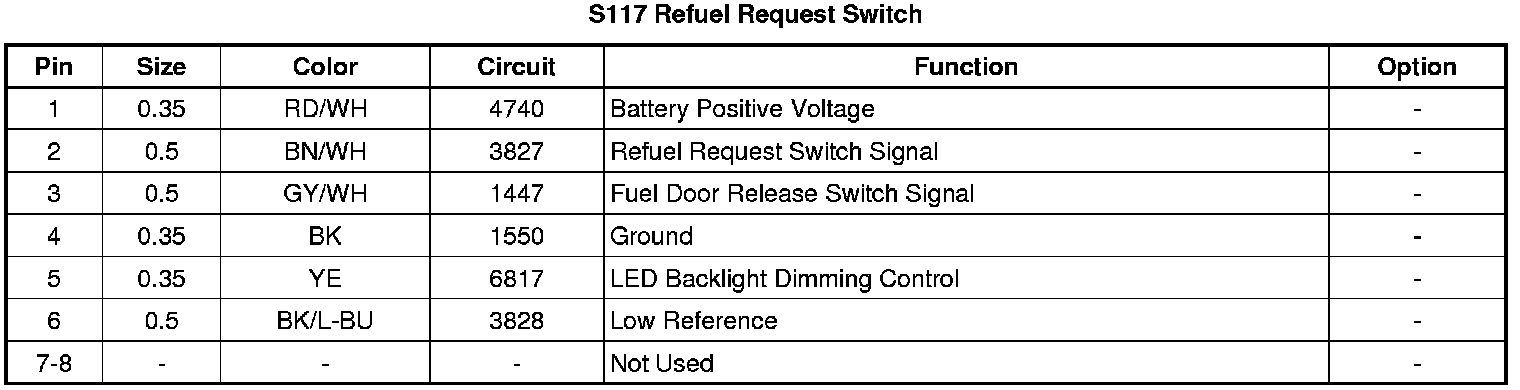

S117 Refuel Request Switch
