Air Temperature Sensor ( Ambient / Intake )
>>
Intake Air Temperature Sensor
Intake Air Temperature Sensor

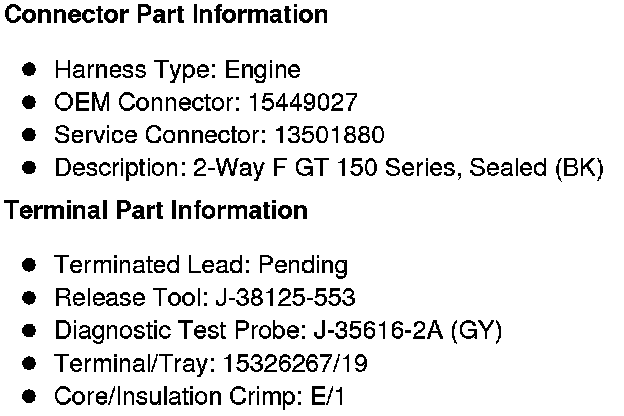

Component Connector End Views
B66B Intake Air Temperature Sensor (LSA)
