Exhaust Tail Pipe Flow Control Valve Solenoid
Exhaust Tail Pipe Flow Control Valve Solenoid

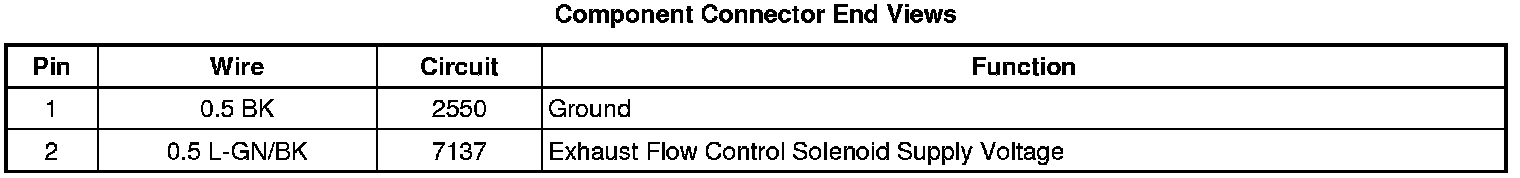

Component Connector End Views

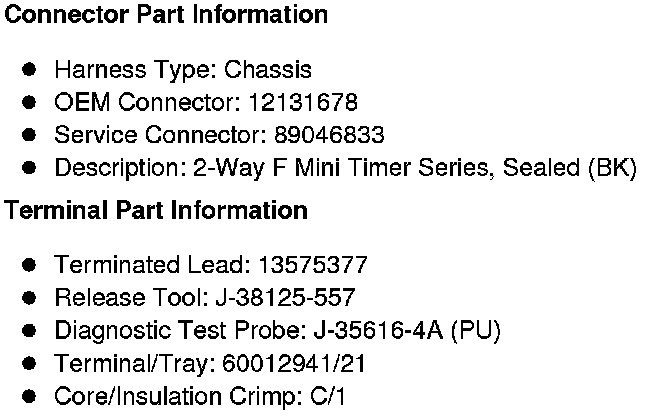

Q15 Exhaust Tail Pipe Flow Control Valve Solenoid (LSA)
