Transmission Shift Lever Position Indicator (MYB or MYC)
Transmission Shift Lever Position Indicator (MYB or MYC)

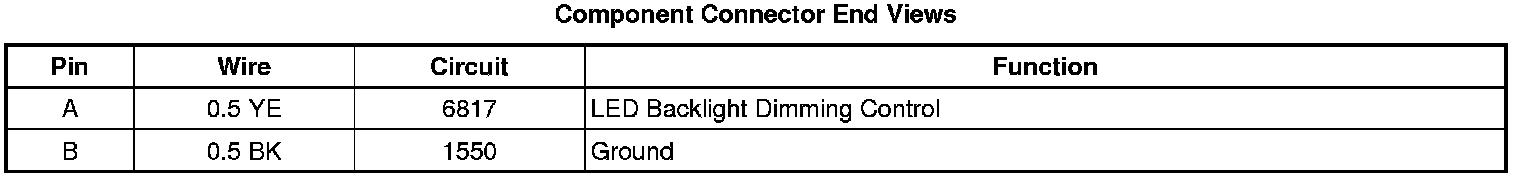

Component Connector End Views

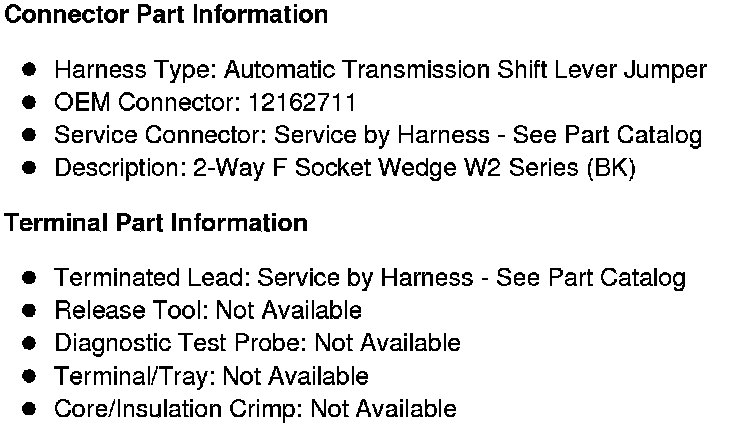

P2 Transmission Shift Lever Position Indicator (MYB or MYC)
