Mirrors
>>
Power Mirror Switch
Power Mirror Switch

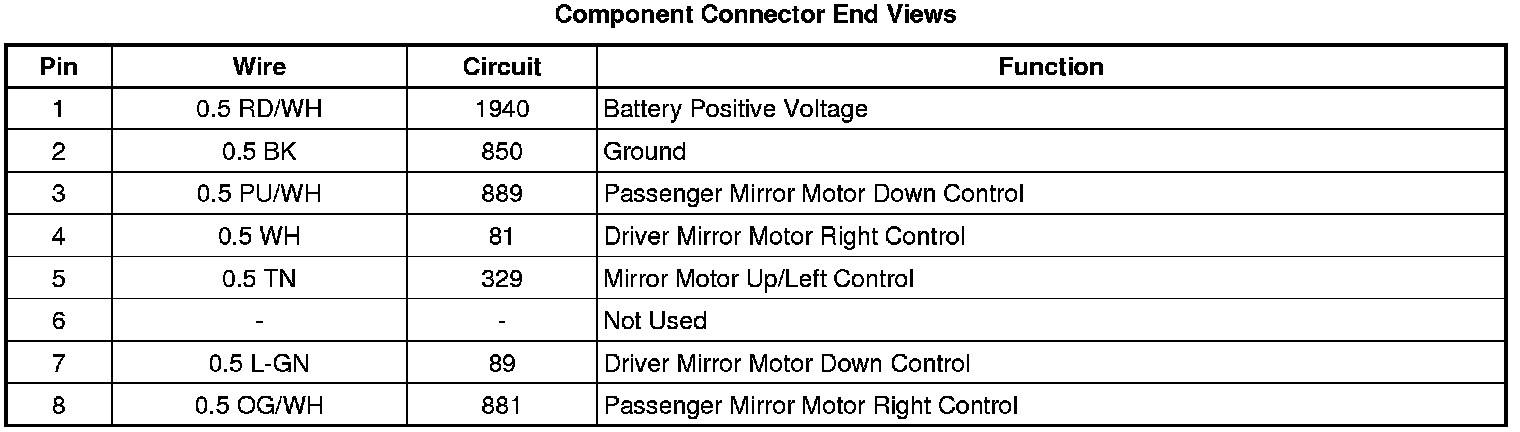

Component Connector End Views

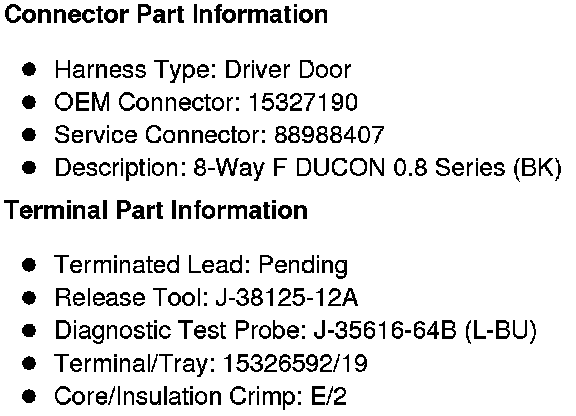

S52 Outside Rearview Mirror Switch
