Collision Avoidance and Parking Assist Systems




Object Detection Schematics

UD7





Data Communication Schematics
G402, G403, and G404

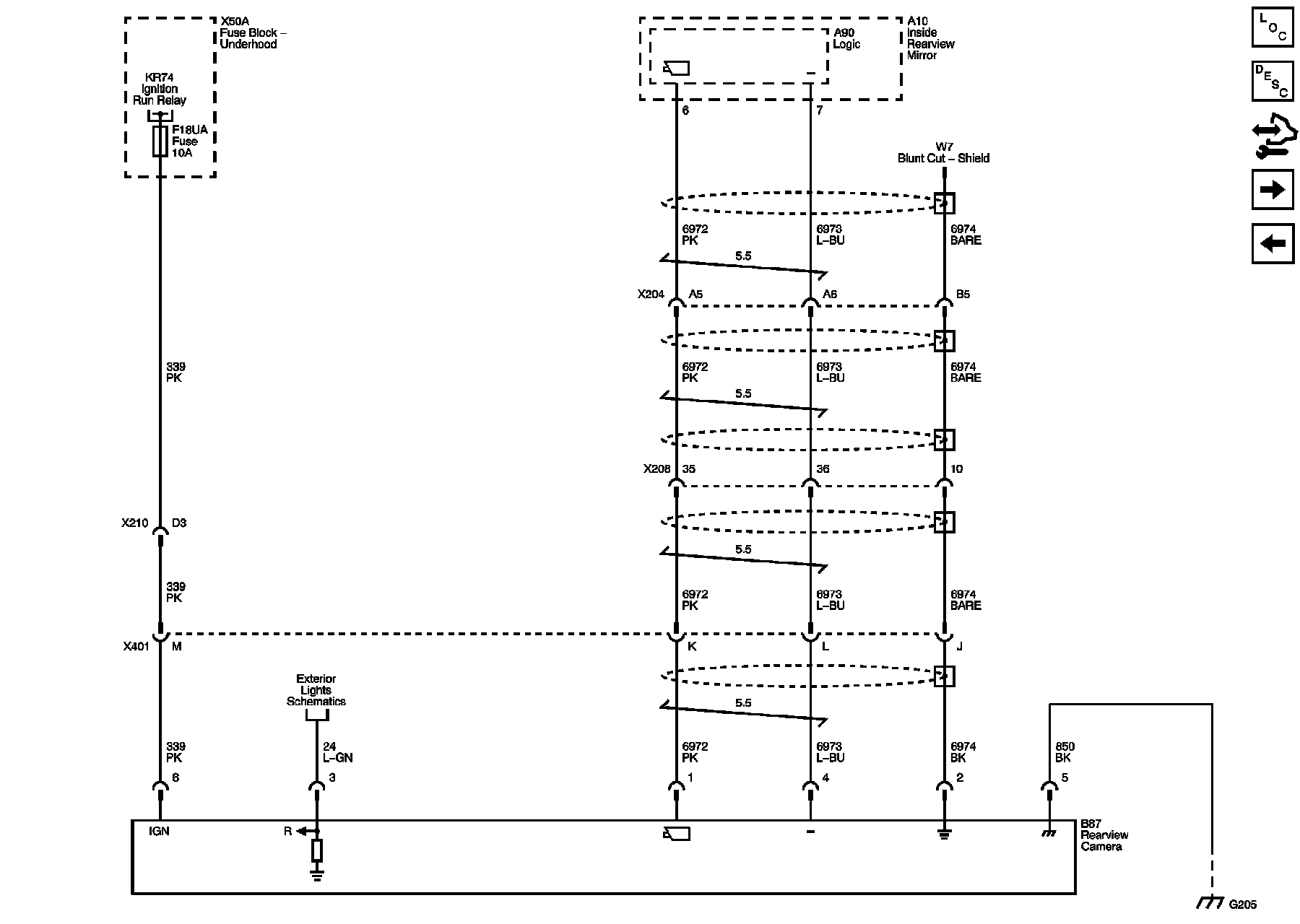

Object Detection Schematics Rear View Camera
