Flywheel: Specifications

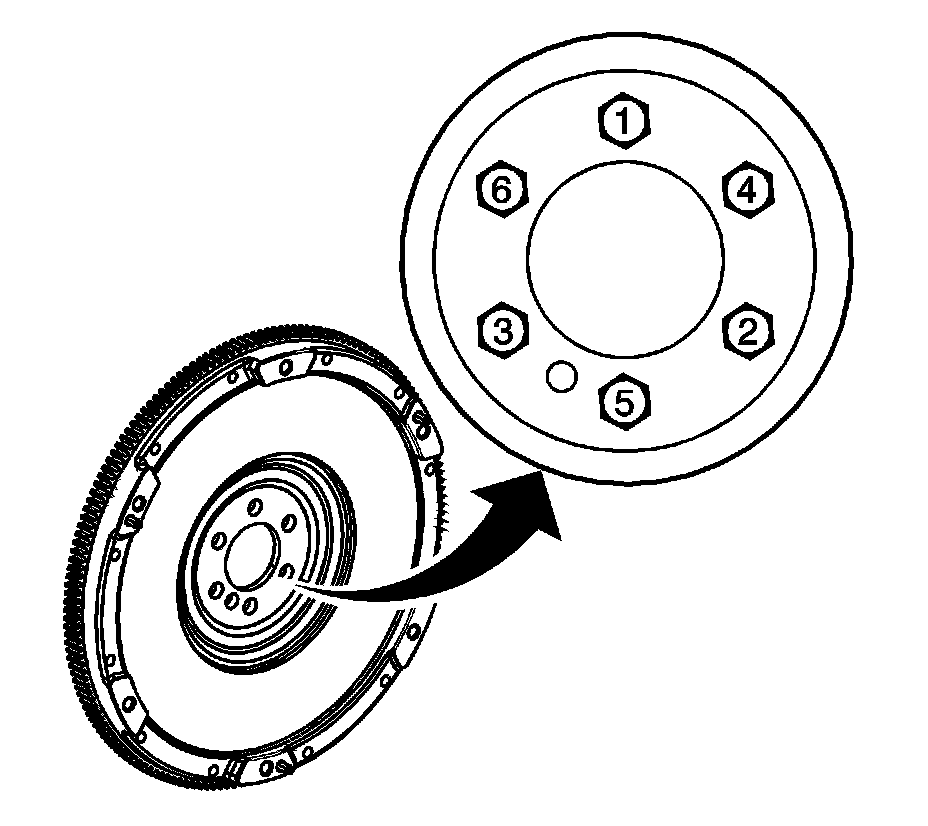

Bolts (1-6) first pass in sequence
20 Nm (15 lb ft)
Bolts (1-6) second pass in sequence
50 Nm (37 lb ft)
Bolts (1-6) final pass in sequence
100 Nm (74 lb ft)
