Wiper Arm: Adjustments

Windshield Wiper Arm Adjustment

1. Loosen the windshield wiper arms from windshield wiper transmission. Refer to Windshield Wiper Arm Replacement Service and Repair

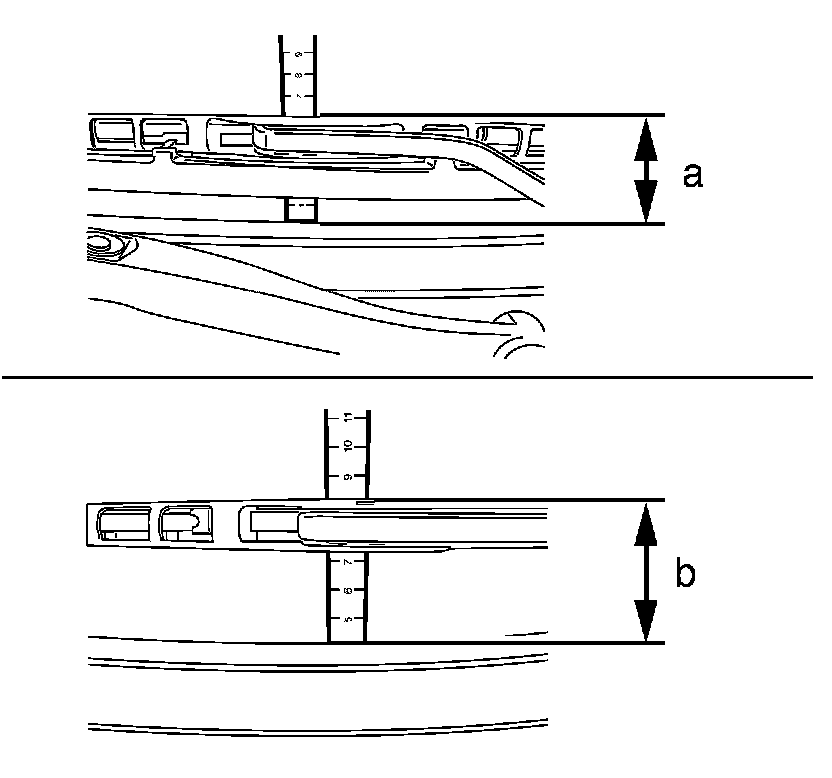

2. Measure the upper edge of water deflector (rubber lip) to wiper arm attachment point.

3. Position the wiper arm to the basic setting.

* Driver side (a) approximately 6.5 cm (2.6 in)

* Passenger side (b) approximately 8.5 cm (3.3 in).
