Radio/Navigation System Schematics





Radio/Navigation System Schematics

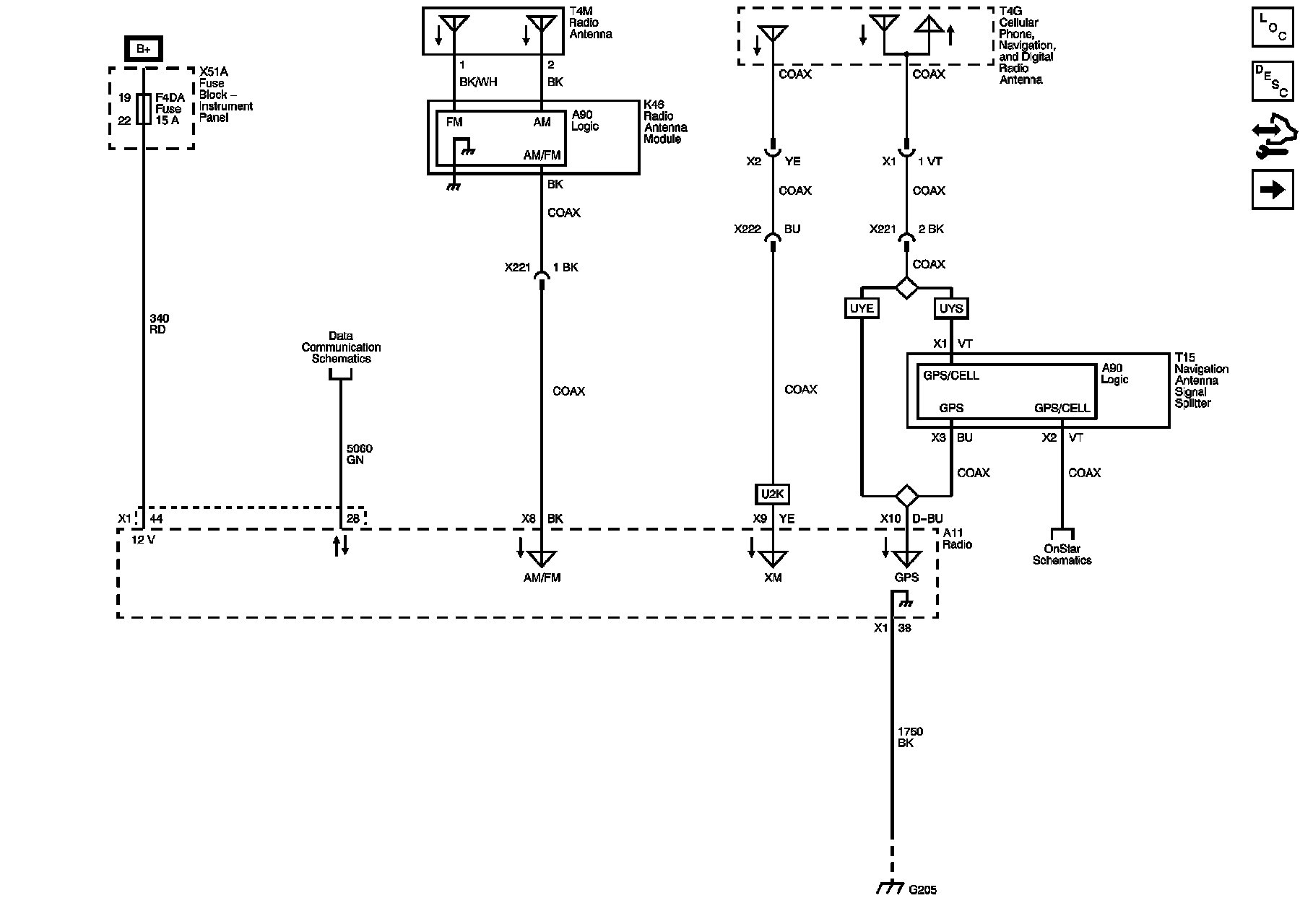

Power, Ground, Serial Data and Antennas

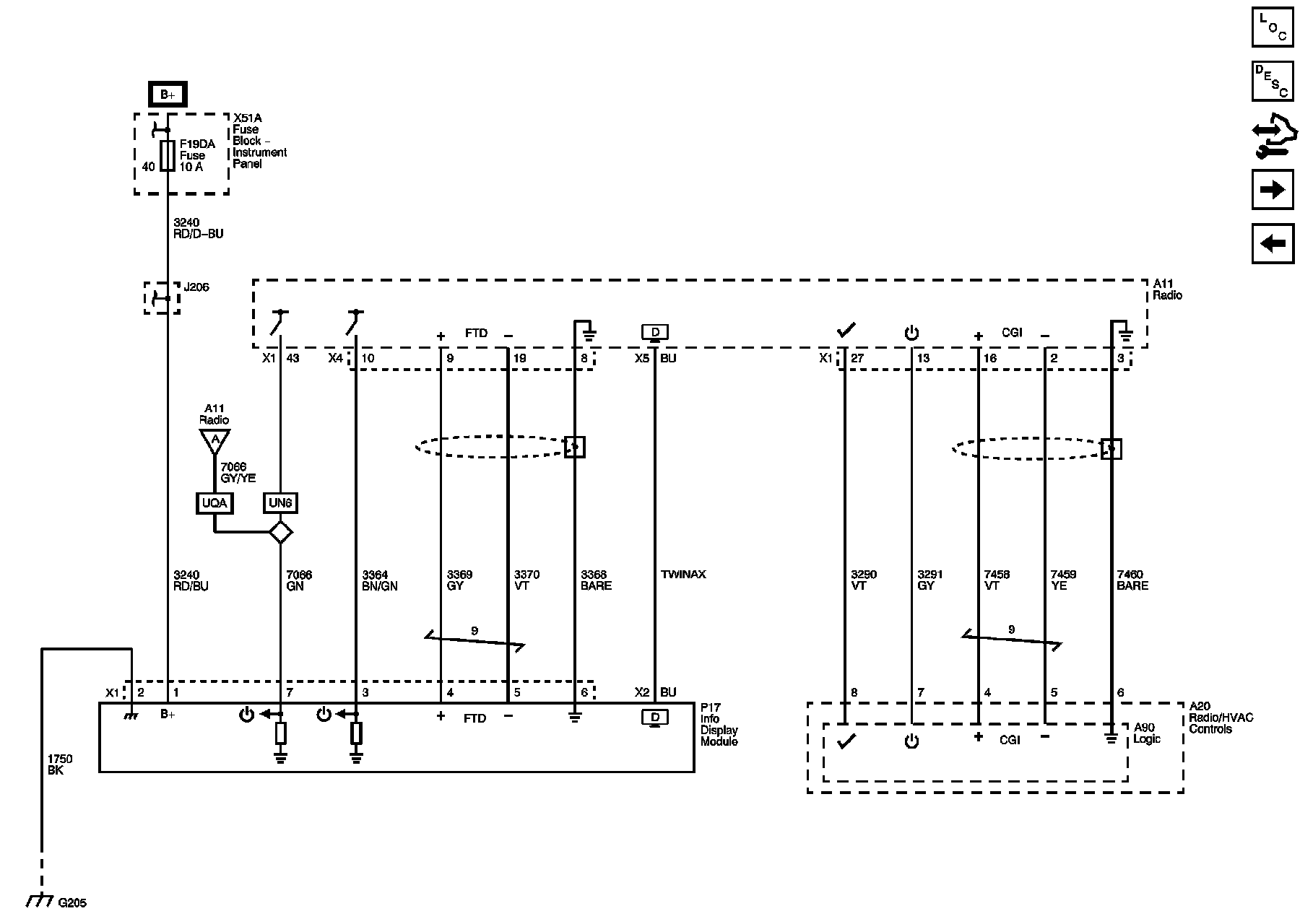

Power, Ground, Controls and Serial Data (UYE)

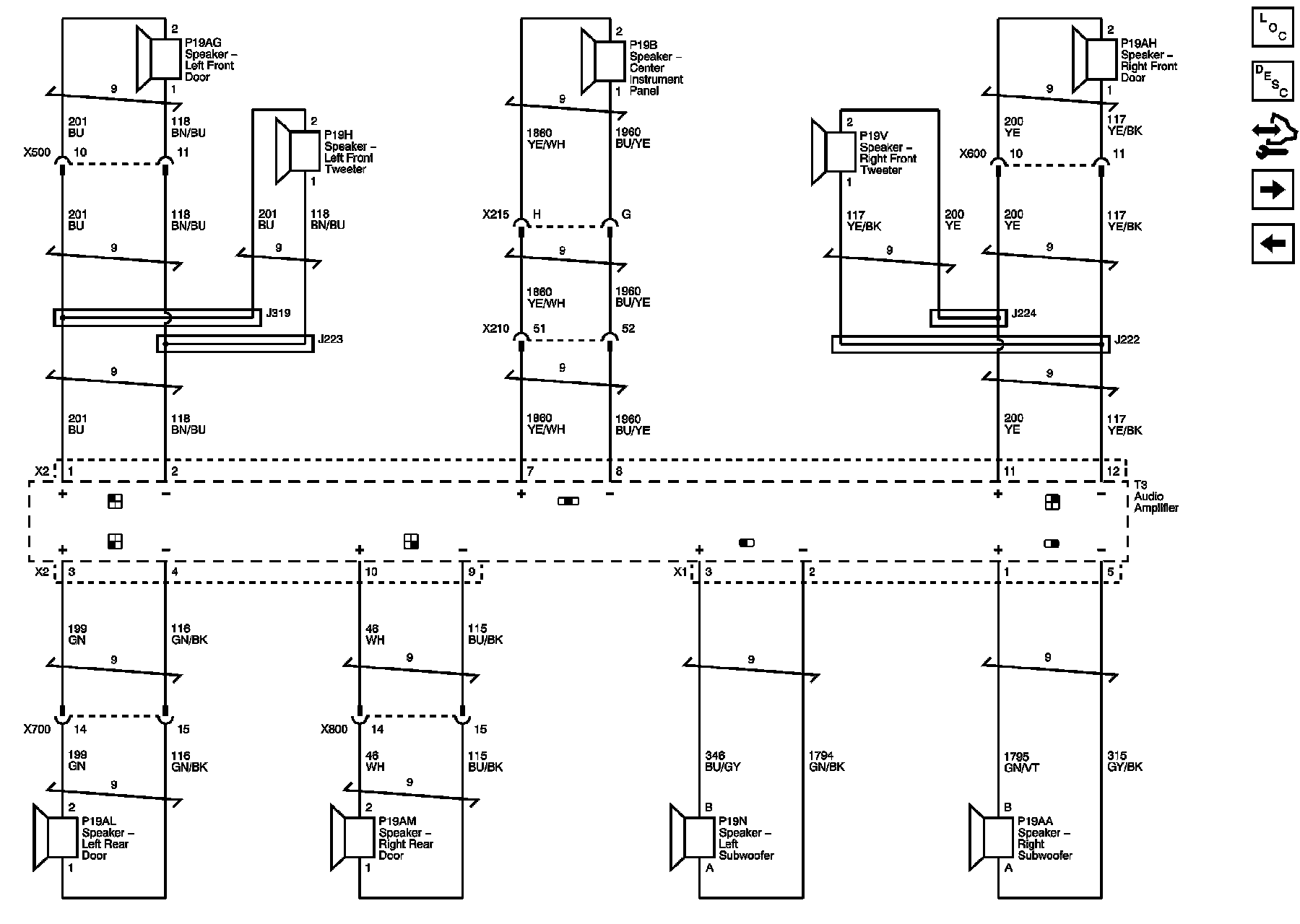

Speakers (UW6)





Navigation System (UFU)





Speakers (UQA)

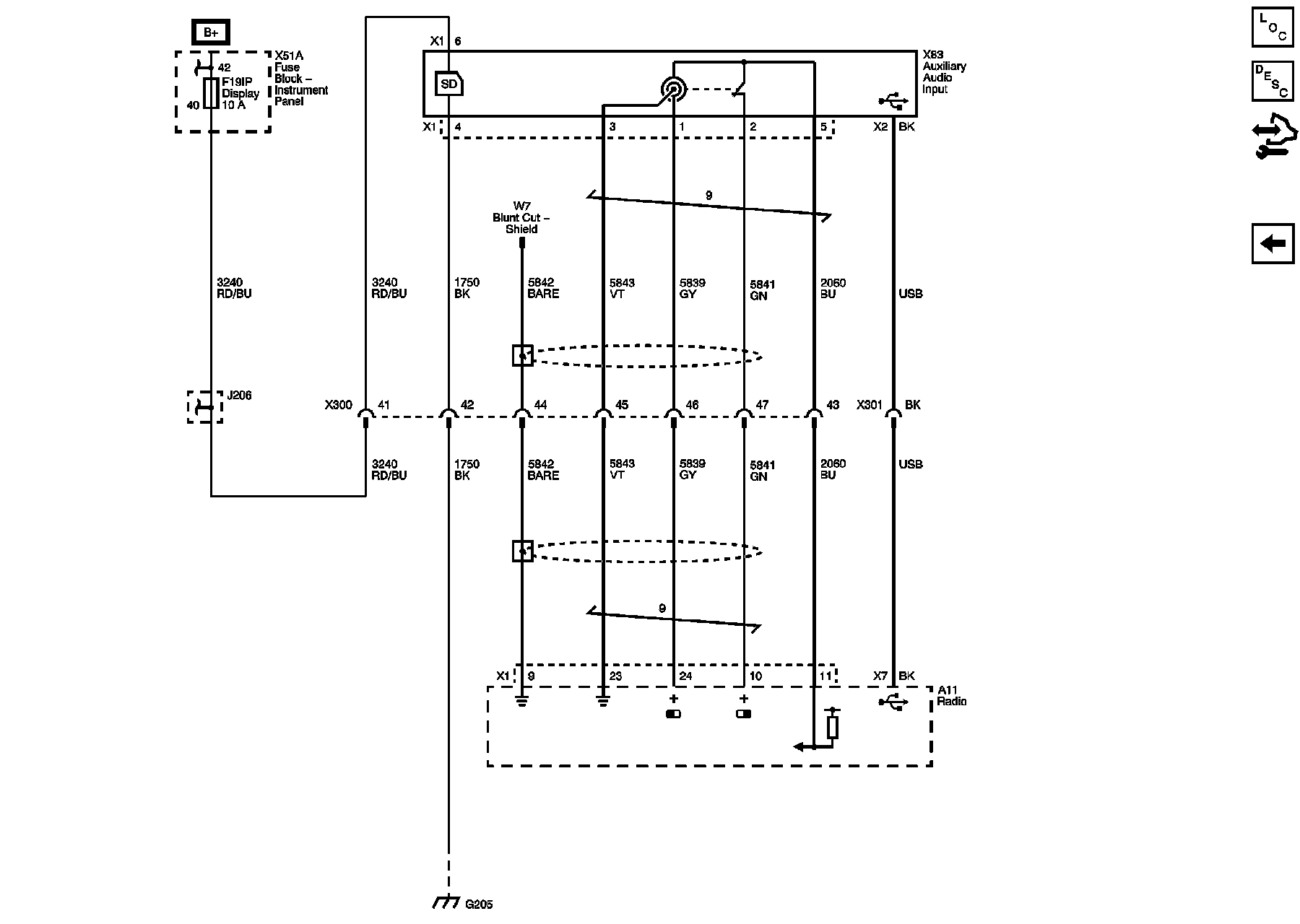

Auxiliary Inputs (without KTA)
