Front Subframe: Service and Repair

Drivetrain and Front Suspension Frame Replacement


Removal Procedure

1.Install the engine support fixture. Refer to Engine Support Fixture .

2.Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

3.Remove the front wheels. Refer to Tire and Wheel Removal and Installation .

4.Remove the front fascia. Refer to Front Bumper Fascia Replacement Service and Repair.

5.Remove the front compartment splash shield. Refer to Front Compartment Splash Shield Replacement Service and Repair.





6.Tie the radiator, air conditioning condenser, and fan module assembly to the upper radiator support to keep the assembly with the vehicle when the frame is lowered.

7.Disconnect the left and right stabilizer links from the strut assemblies. Refer to Stabilizer Shaft Link Replacement .

8.Remove the two steering gear retaining bolts. Refer to Steering Gear Replacement .

9.Using mechanics wire, suspend the steering gear from the powertrain.

10.Remove the front exhaust pipe. Refer to Exhaust Front Pipe Replacement .

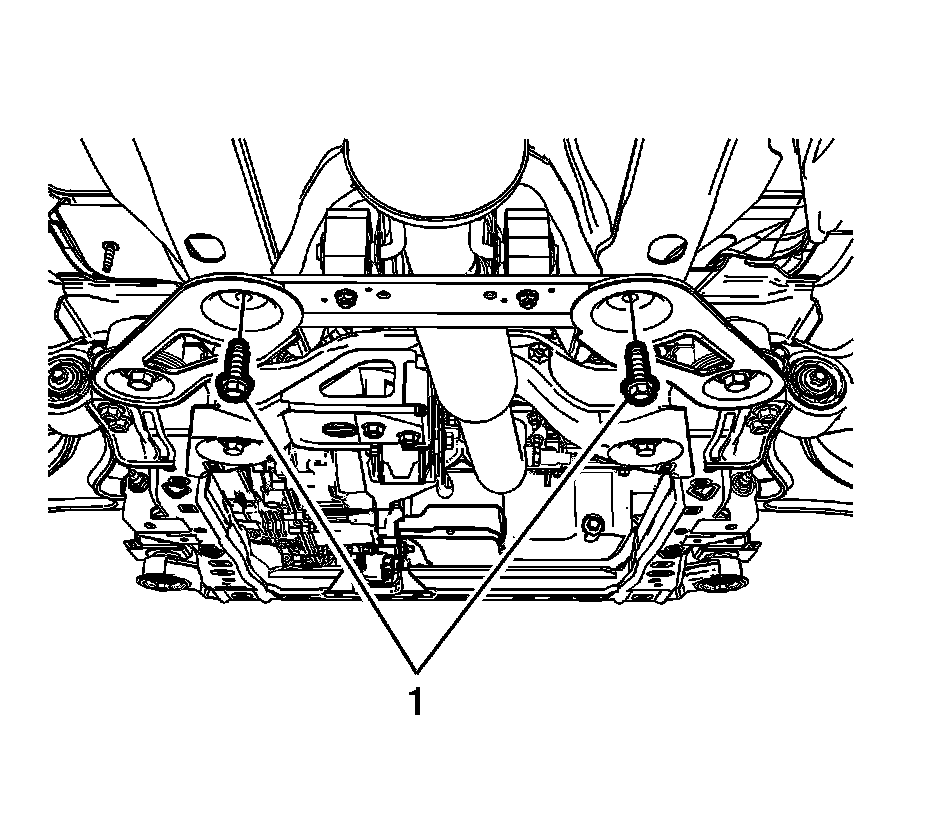

11.Remove the frame reinforcement fasteners (1).





12.Remove the front transmission mount through bolt (1).





13.Remove the rear transmission mount to frame fasteners (1, 2).





14.Separate the lower ball joints from the steering knuckles (1). Refer to Lower Control Arm Replacement .

15.Remove the electrical harness from the clips in the frame (2).

16.Mark the location of the frame using spray paint for correct positioning during installation.

17.Carefully lower the vehicle until the frame contacts the support table.

18.Remove the two rear frame-to-body bolts.

19.Remove the frame reinforcements.

20.Remove the two front frame-to-body bolts.

21.Carefully raise the vehicle to separate the frame from the body.

Note:Do not separate the stabilizer bar bracket from the insulator and stabilizer bar when transferring parts.

22.If replacing the frame, transfer components as necessary.

Installation Procedure

1.Carefully lower the vehicle until contacts the frame assembly and is correctly positioned within the spray painted areas.

Caution:Refer to Fastener Caution .

2.Install the frame retaining bolts then tighten the bolts to160 N �m (118 lb ft).





3.Install the frame reinforcements then tighten the bolts (1) to60 N �m (44 lb ft) plus 30 degrees.

4.Remove the mechanics wire and install the steering gear with NEW bolts and tighten to110 N �m (81 lb ft) plus 150 degrees, plus 15 degrees.





5.Install the electrical harness and the power steering cooler line to the clips in the frame (2).

6.Connect the ball joint studs to the steering knuckles (1). Refer to Lower Control Arm Replacement .





7.Install the rear transmission mount through bolt (1) and tighten to100 N �m (74 lb ft).

8.Install the front transmission mount bolts and nut then tighten to100 N �m (74 lb ft).

9.Untie the radiator, air conditioning condenser, and fan module assembly from the upper radiator support.

10.Connect the left and right stabilizer links to the strut assemblies. Refer to Stabilizer Shaft Link Replacement .

11.Install the front exhaust pipe. Refer to Exhaust Front Pipe Replacement .

12.Remove the engine support fixture.

13.Install the front fascia. Refer to Front Bumper Fascia Replacement Service and Repair .

14.Install the front compartment splash shield. Refer to Front Compartment Splash Shield Replacement Service and Repair.

15.Install the front wheels. Refer to Tire and Wheel Removal and Installation .

16.Lower the vehicle.

17.Check the wheel alignment.
