Home >> Chevrolet >> 2013 >> Malibu L4-2.4L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antenna - Keyless Entry >> Keyless Entry Antenna - Center Console Front

Keyless Entry Antenna - Center Console Front





Component Connector End Views

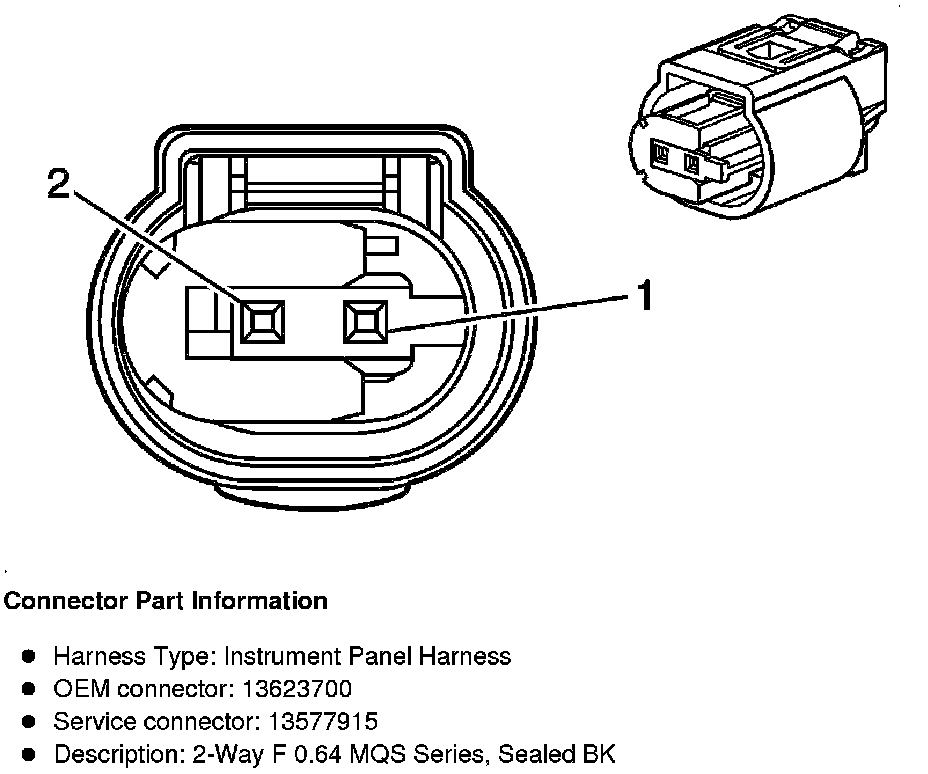

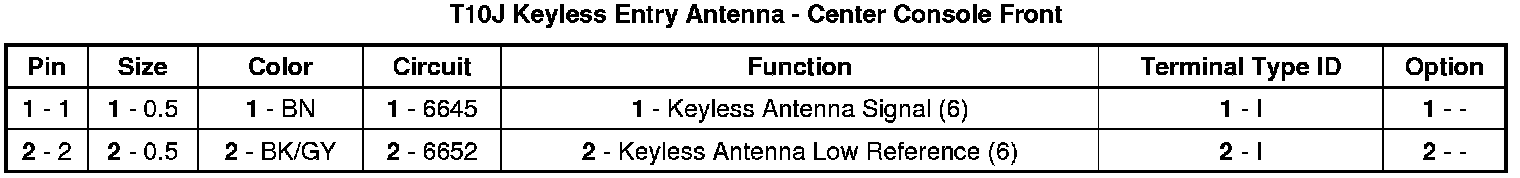

T10J Keyless Entry Antenna - Center Console Front
