Cellular Phone Microphone
Cellular Phone Microphone

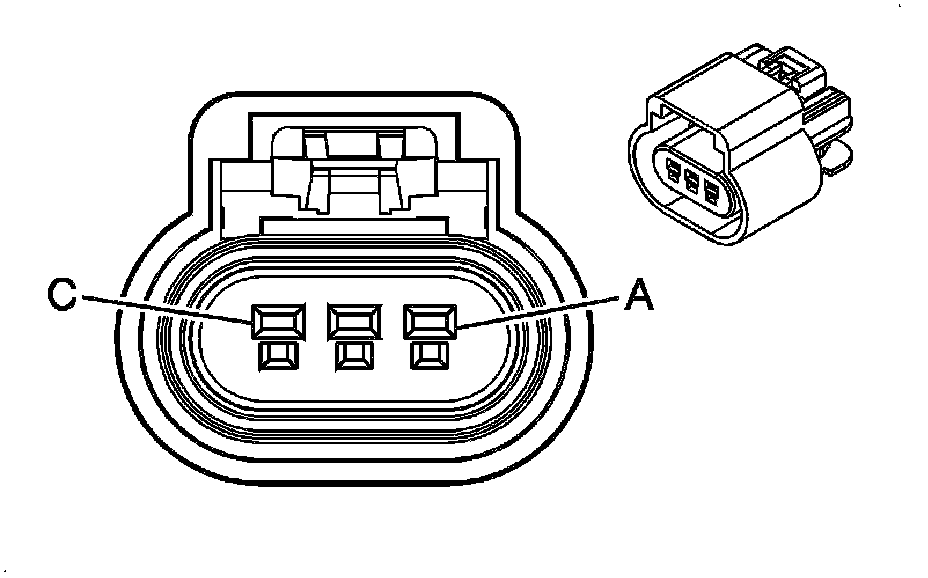

Component Connector End Views
B24 Cellular Phone Microphone
