Accessory Power Receptacle - 110V AC X1
Accessory Power Receptacle - 110V AC X1
Component Connector End Views

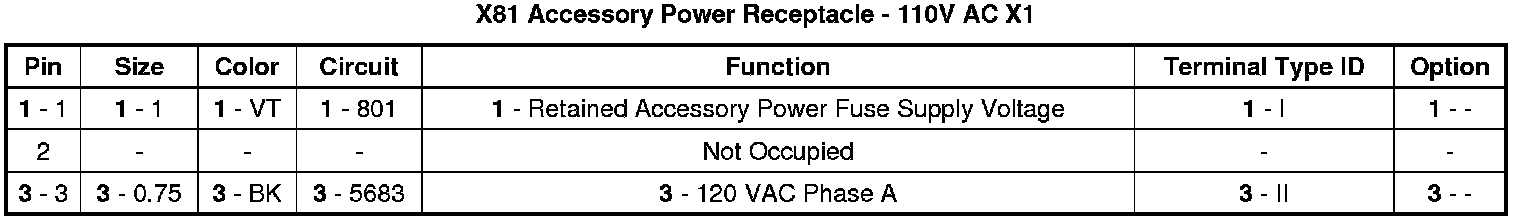

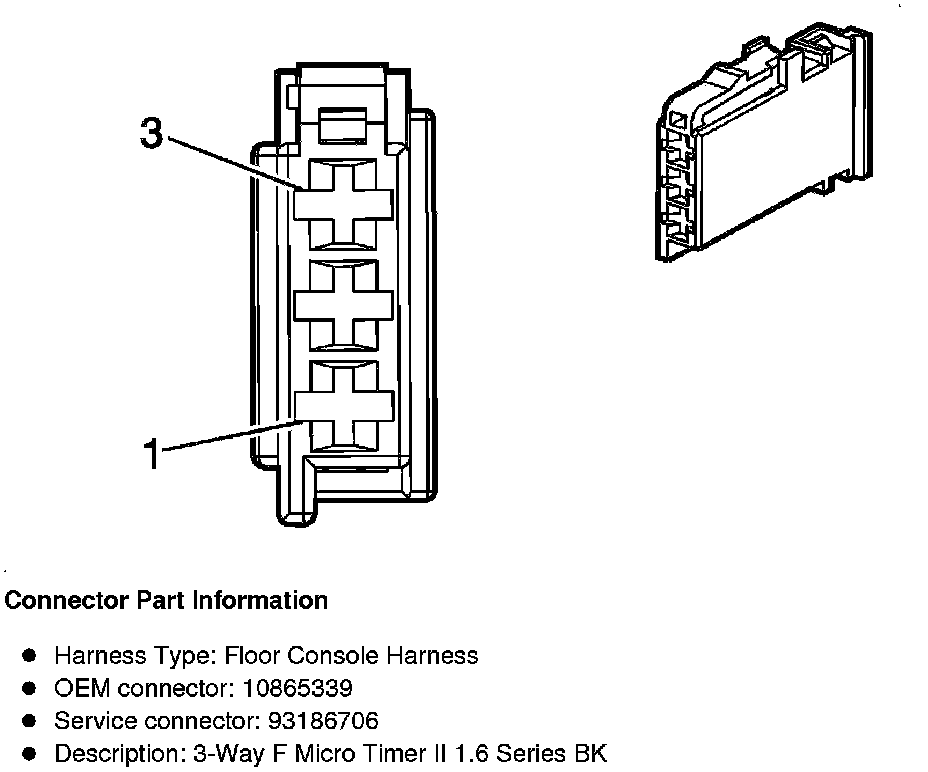

X81 Accessory Power Receptacle - 110V AC X1
