Control Solenoid Valve Assembly X4 (MHH, MH8)





Component Connector End Views

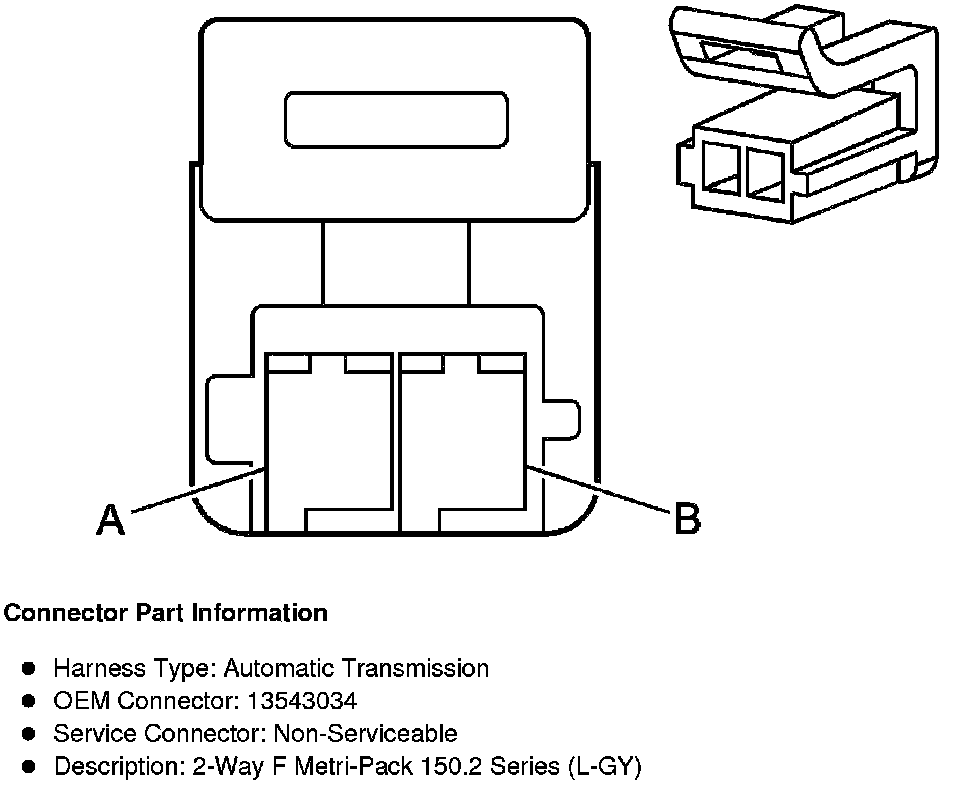

Q8 Control Solenoid Valve Assembly X4 (MHH, MH8)
