Keyless Entry Antenna - Center Console Rear
Keyless Entry Antenna - Center Console Rear
Component Connector End Views

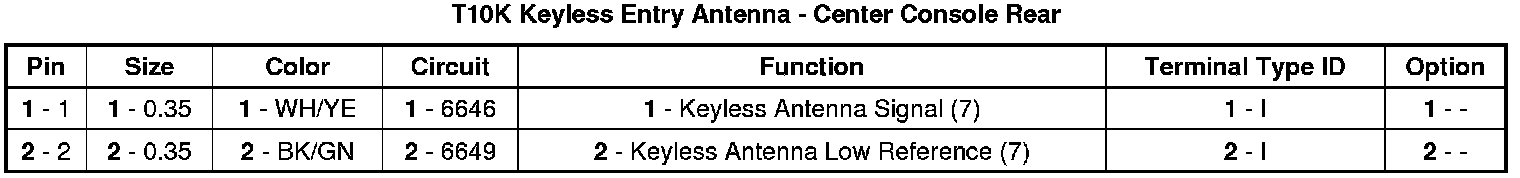

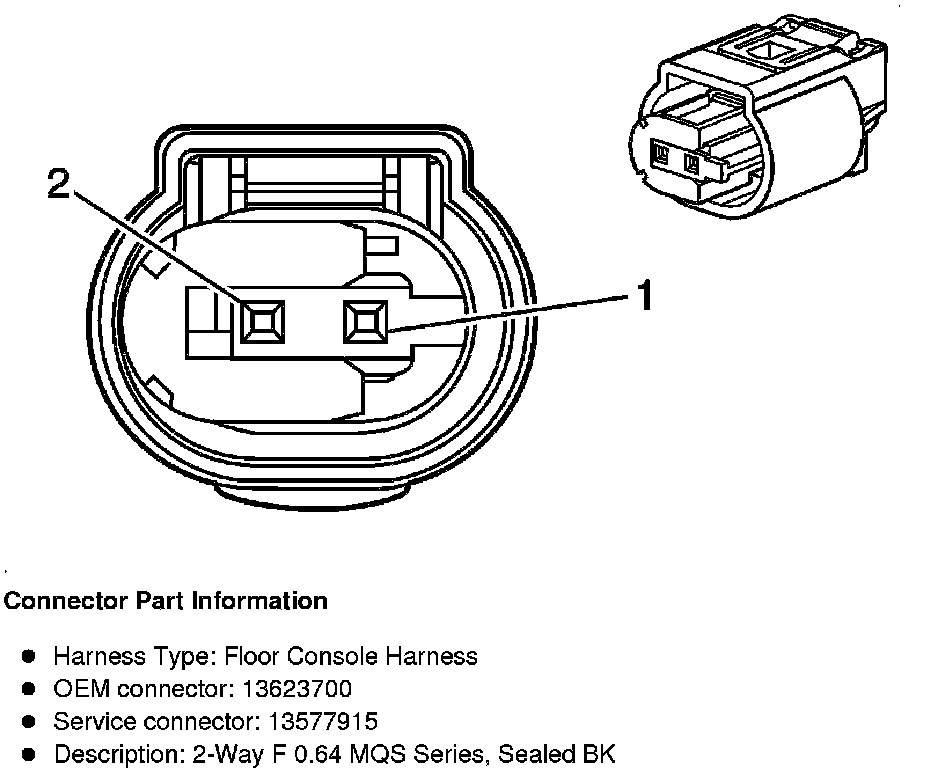

T10K Keyless Entry Antenna - Center Console Rear
