Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
2013
>>
Malibu L4-2.4L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector End Views By Name
>>
Seat Air Bag - Passenger
Seat Air Bag - Passenger

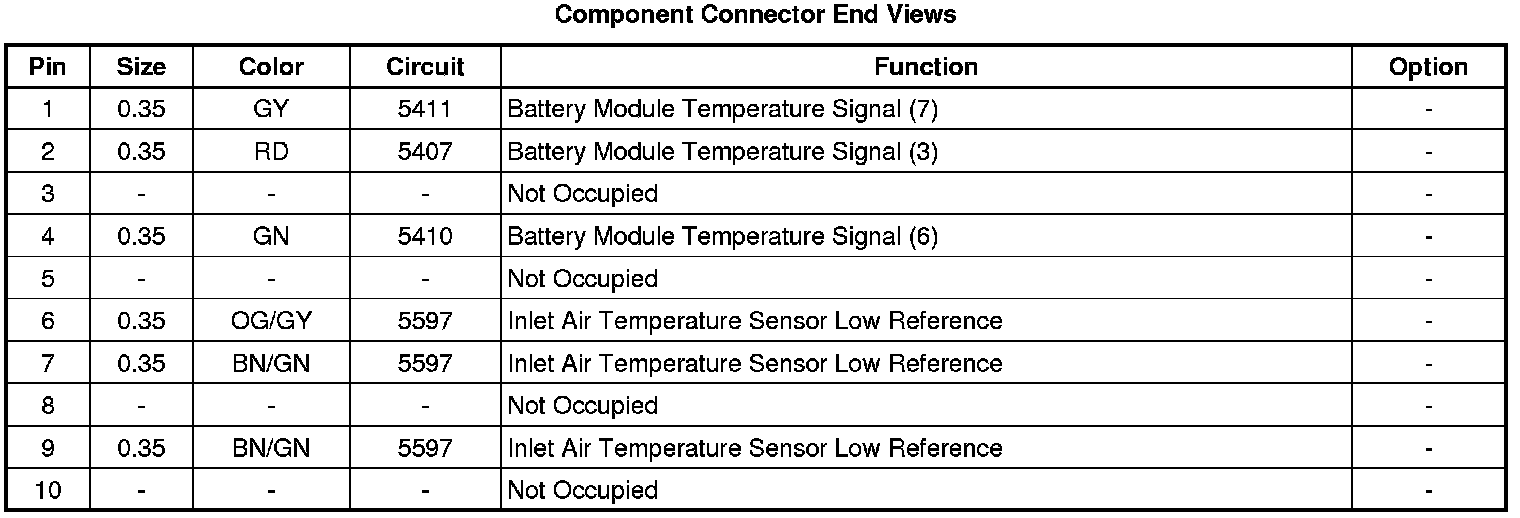

Component Connector End Views

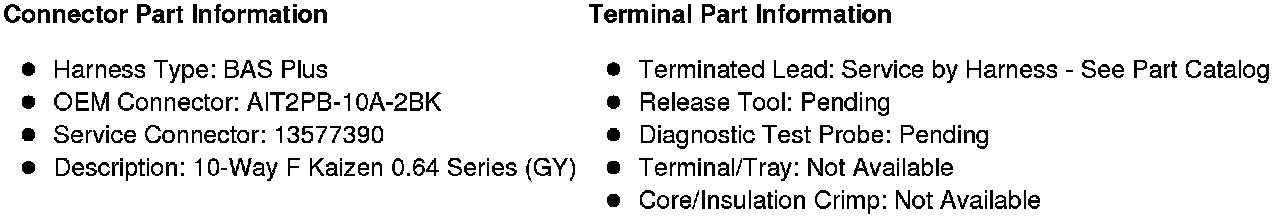

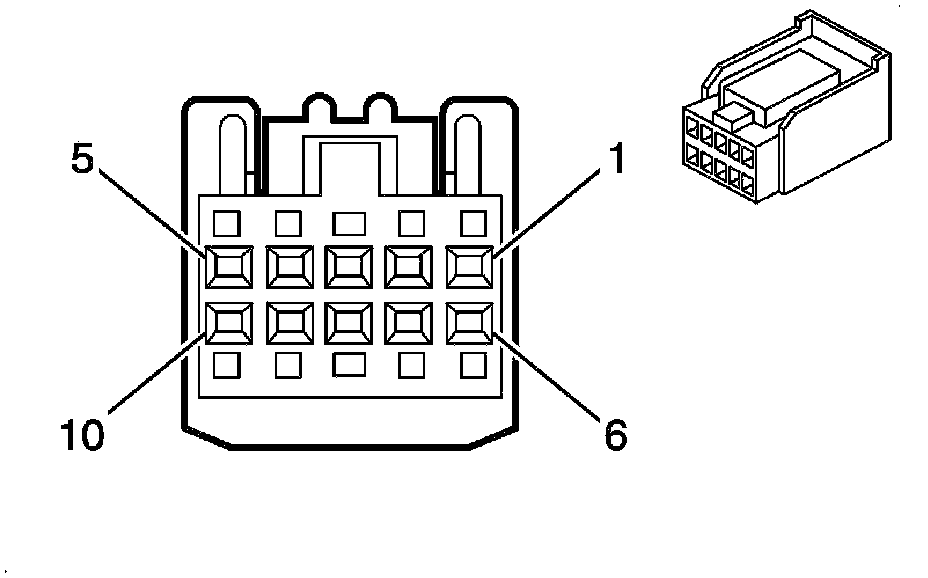

F106P Seat Air Bag - Passenger
