Seat Lumbar Support Switch - Driver (APG)
Seat Lumbar Support Switch - Driver (APG)

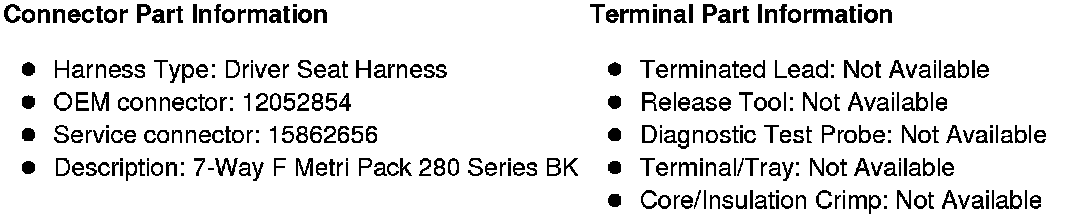

Component Connector End Views

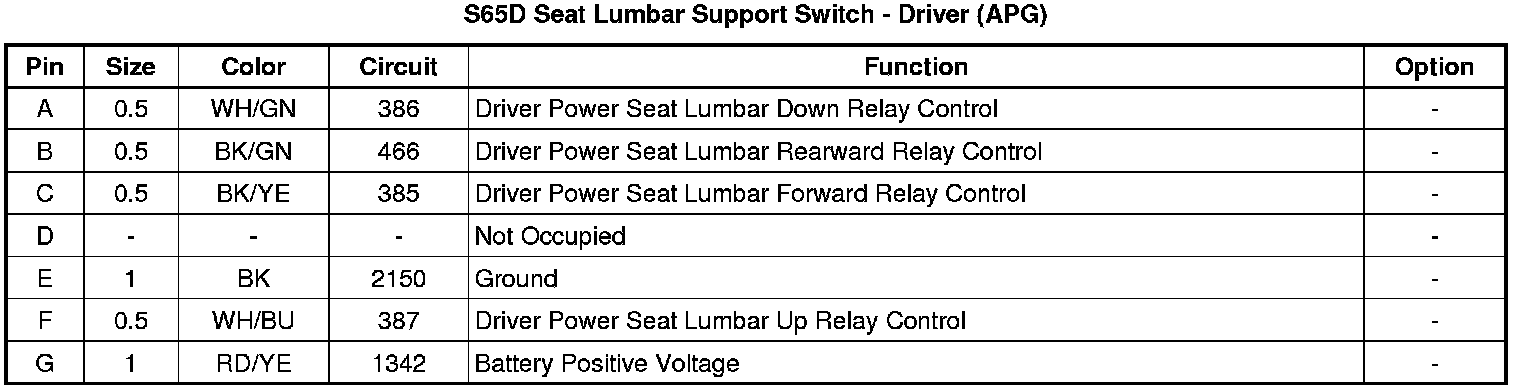

S65D Seat Lumbar Support Switch - Driver (APG)
