Speaker - Left Front Door (UW6)
Speaker - Left Front Door (UW6)
Component Connector End Views

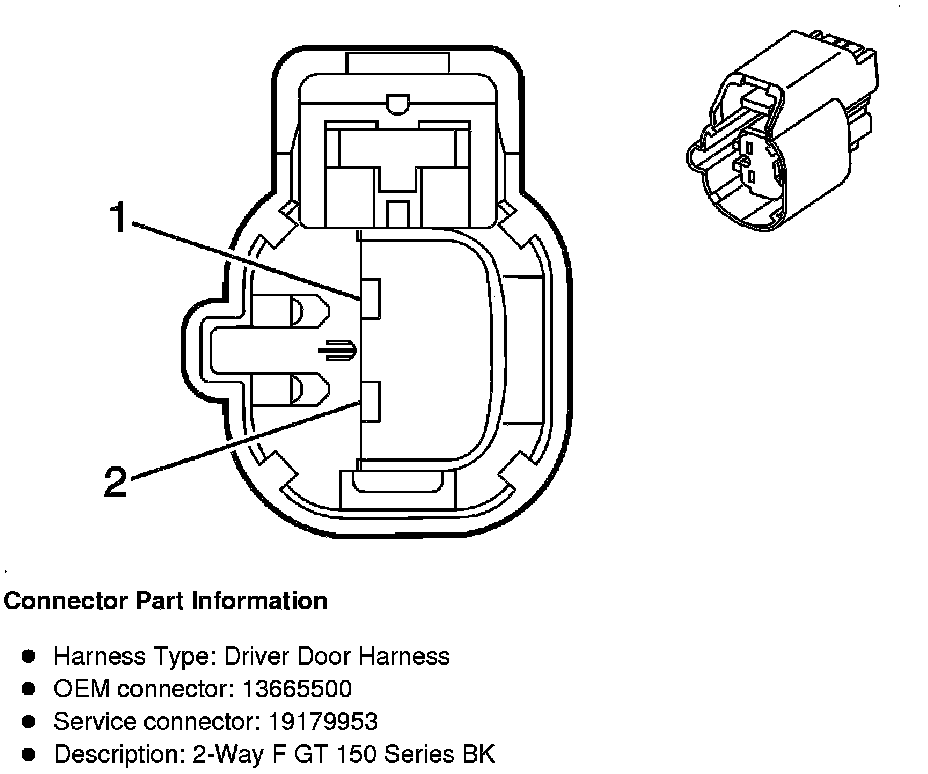

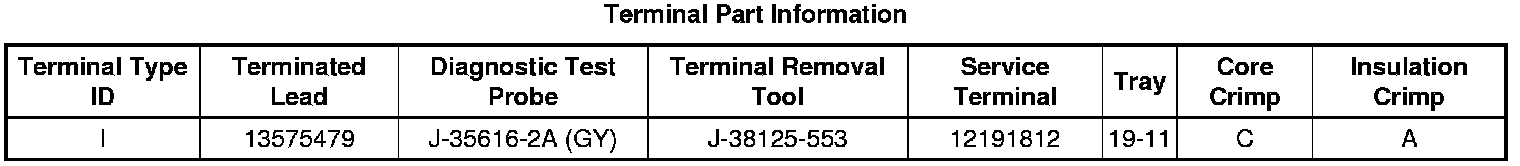

P19AG Speaker - Left Front Door (UW6)
