Speaker - Right Rear Door (UQA)
Speaker - Right Rear Door (UQA)
Component Connector End Views

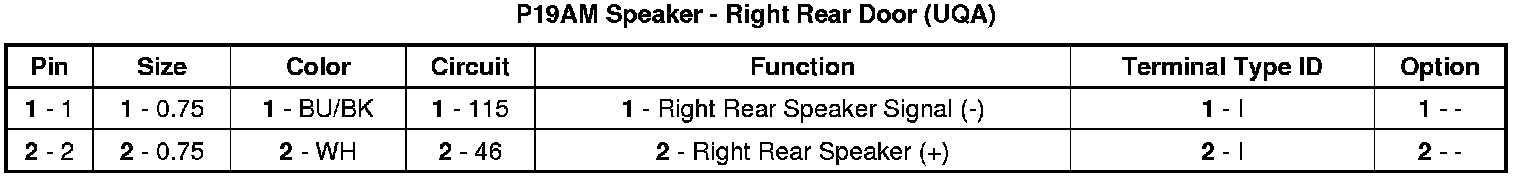

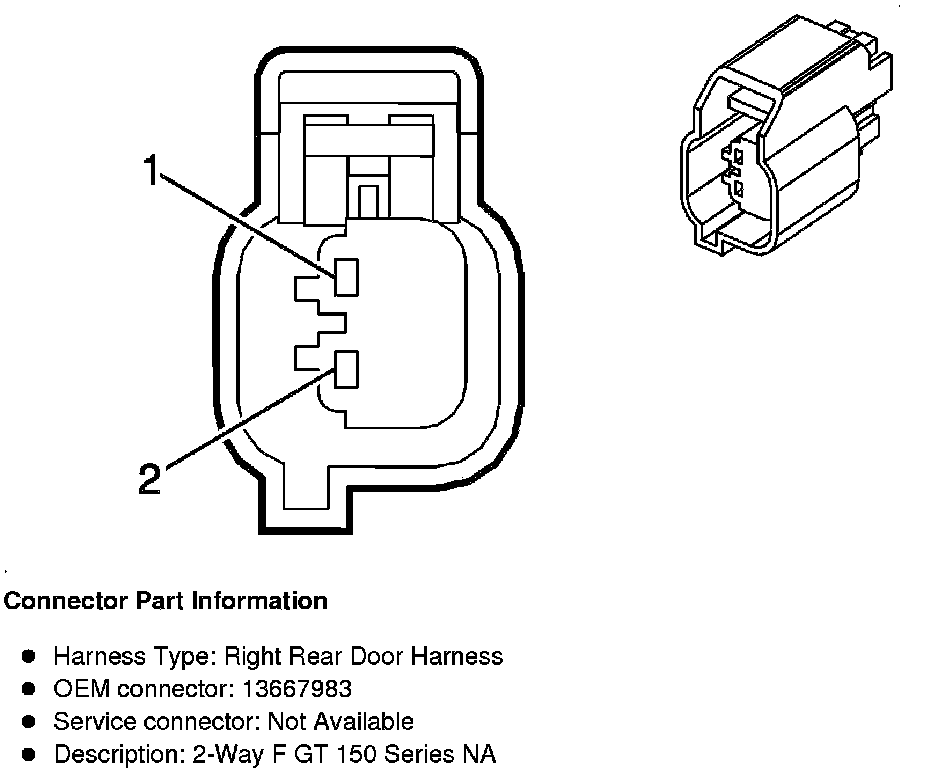

P19AM Speaker - Right Rear Door (UQA)
