Engine - Coolant Temperature Sensor/Switch
Engine - Coolant Temperature Sensor/Switch

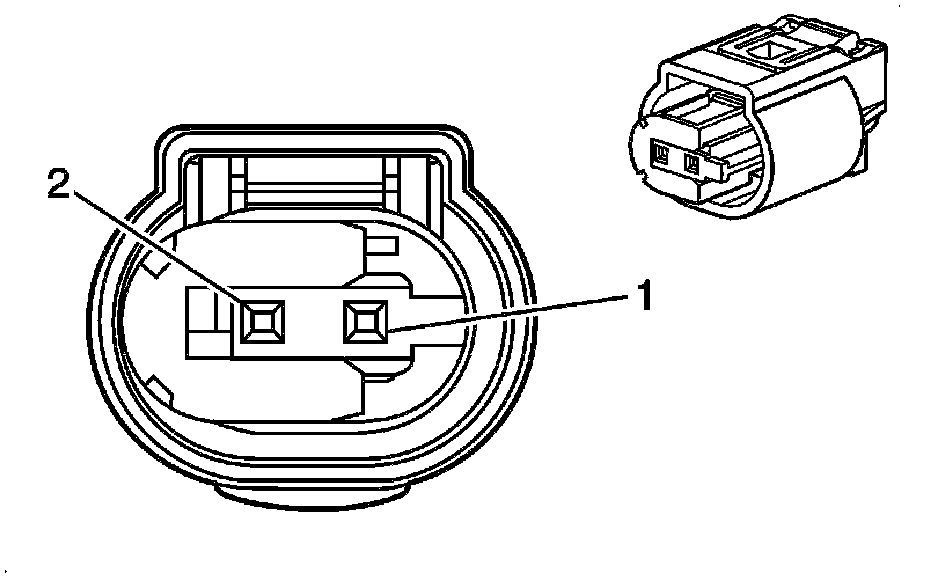

Component Connector End Views

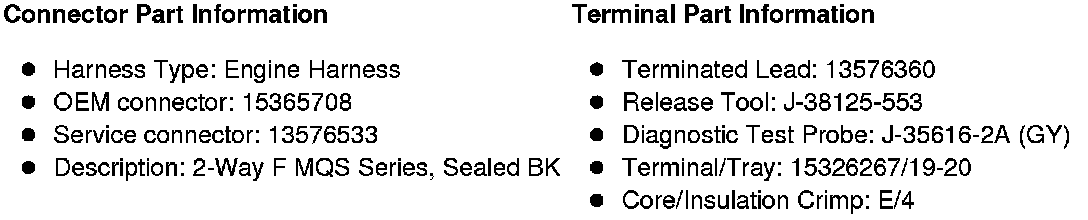

B34 Engine Coolant Temperature Sensor (LUK)
