Front Door Handle
>>
Door Handle Assembly - Driver Exterior
Door Handle Assembly - Driver Exterior

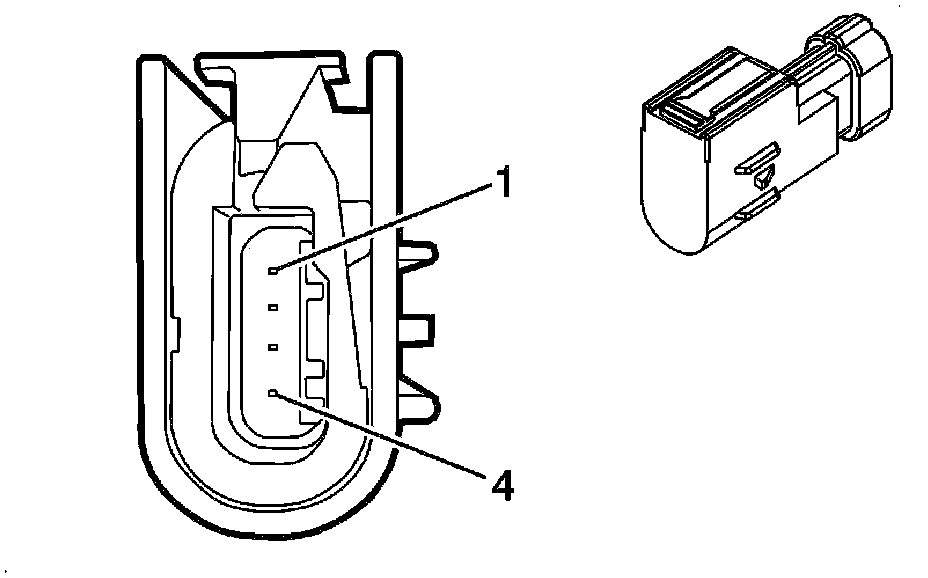

Component Connector End Views

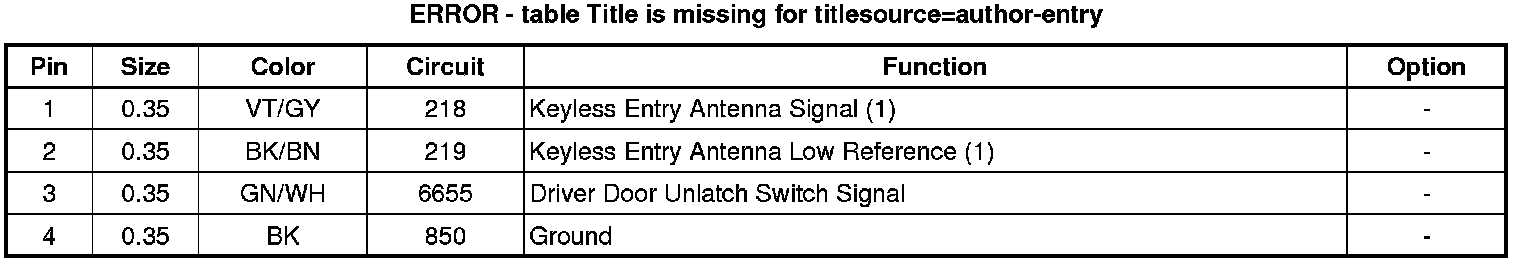

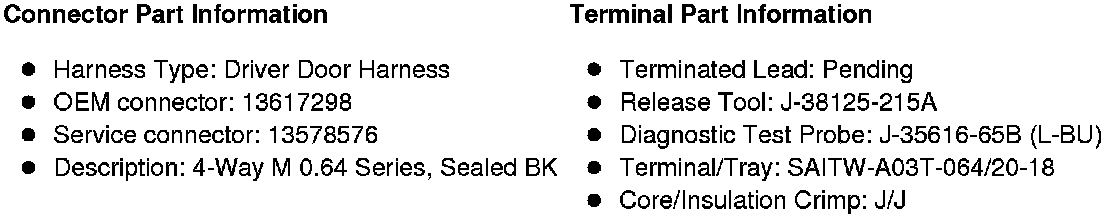

A24D Door Handle Assembly - Driver Exterior
