Front Door Handle
>>
Door Handle Assembly - Passenger Exterior
Door Handle Assembly - Passenger Exterior
Component Connector End Views

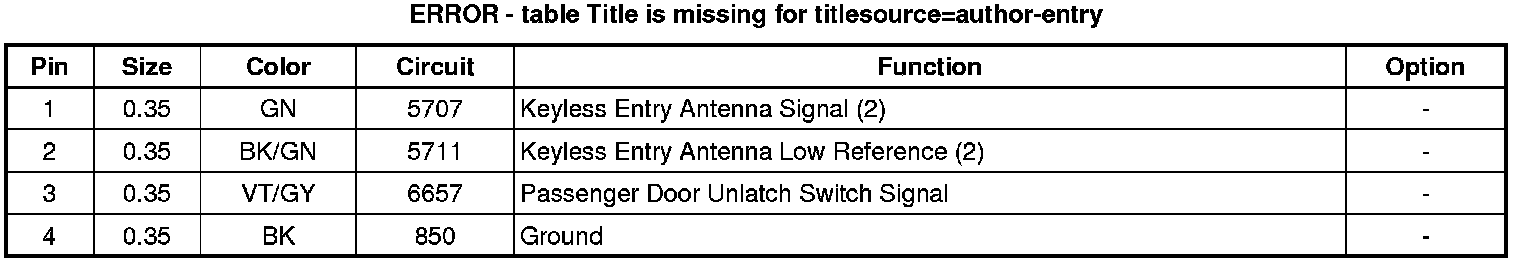

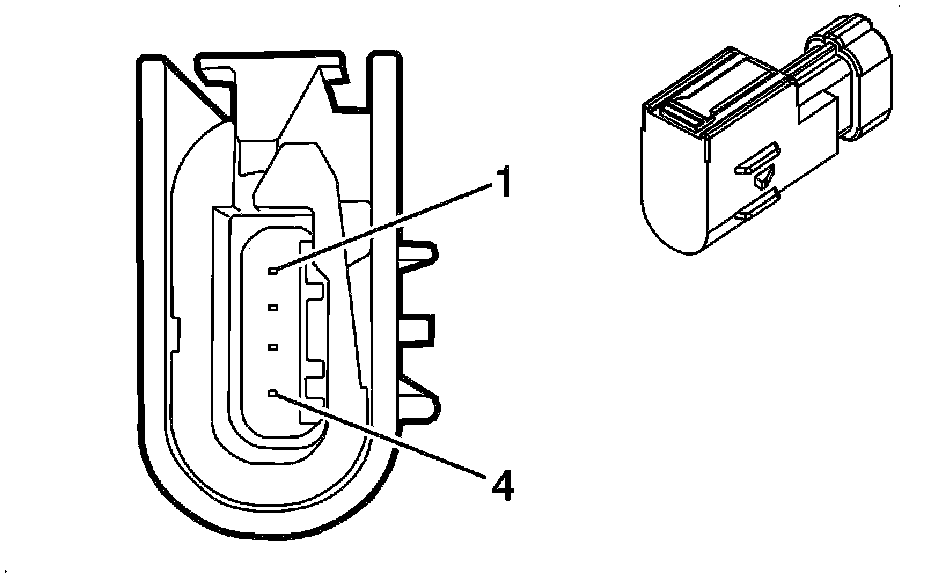

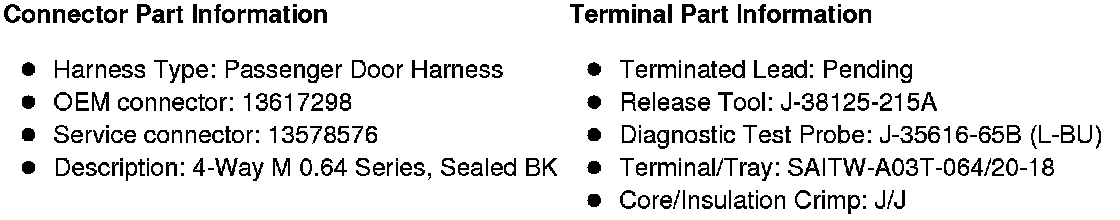

A24P Door Handle Assembly - Passenger Exterior
