Hybrid Battery Bus / Cable

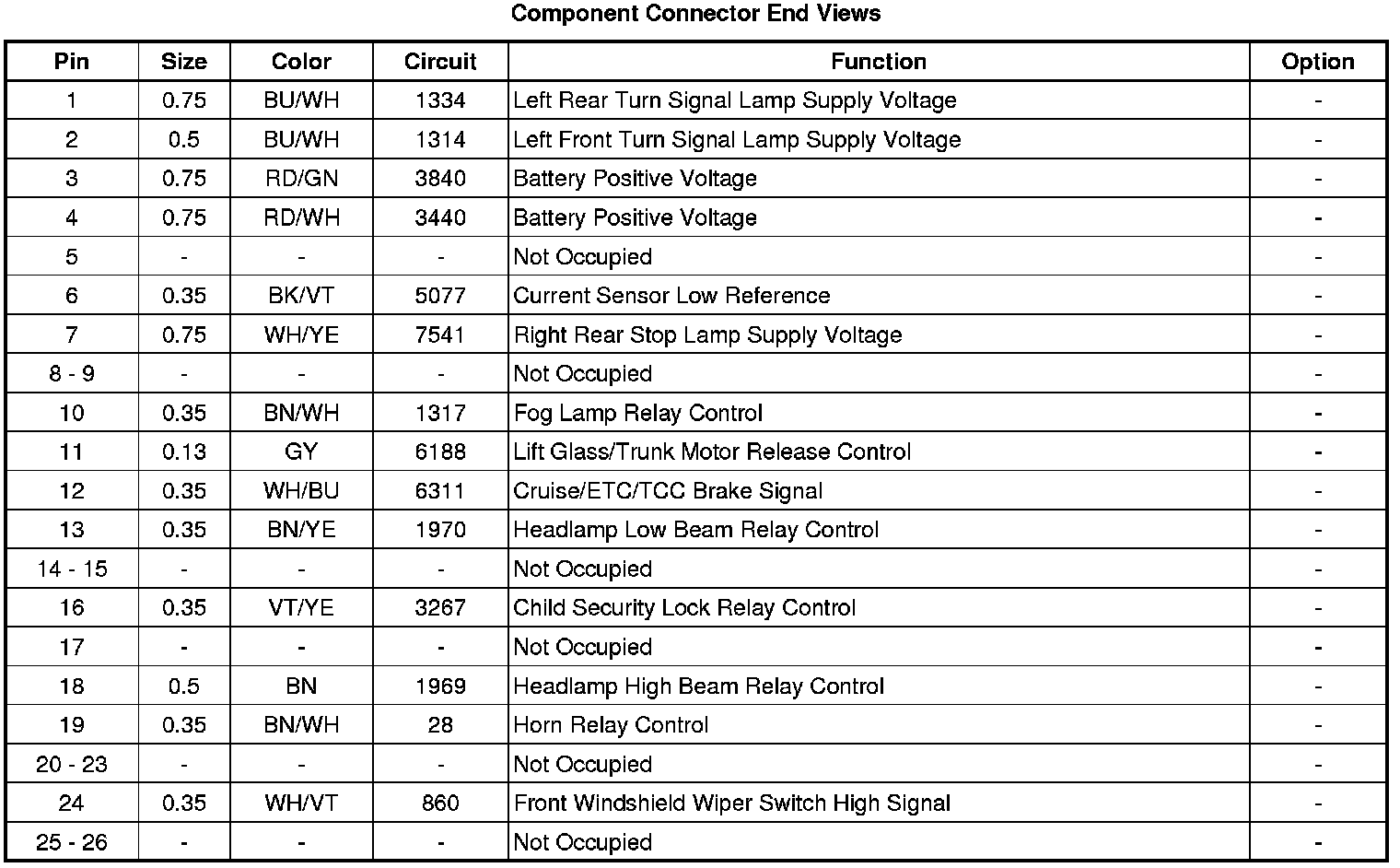

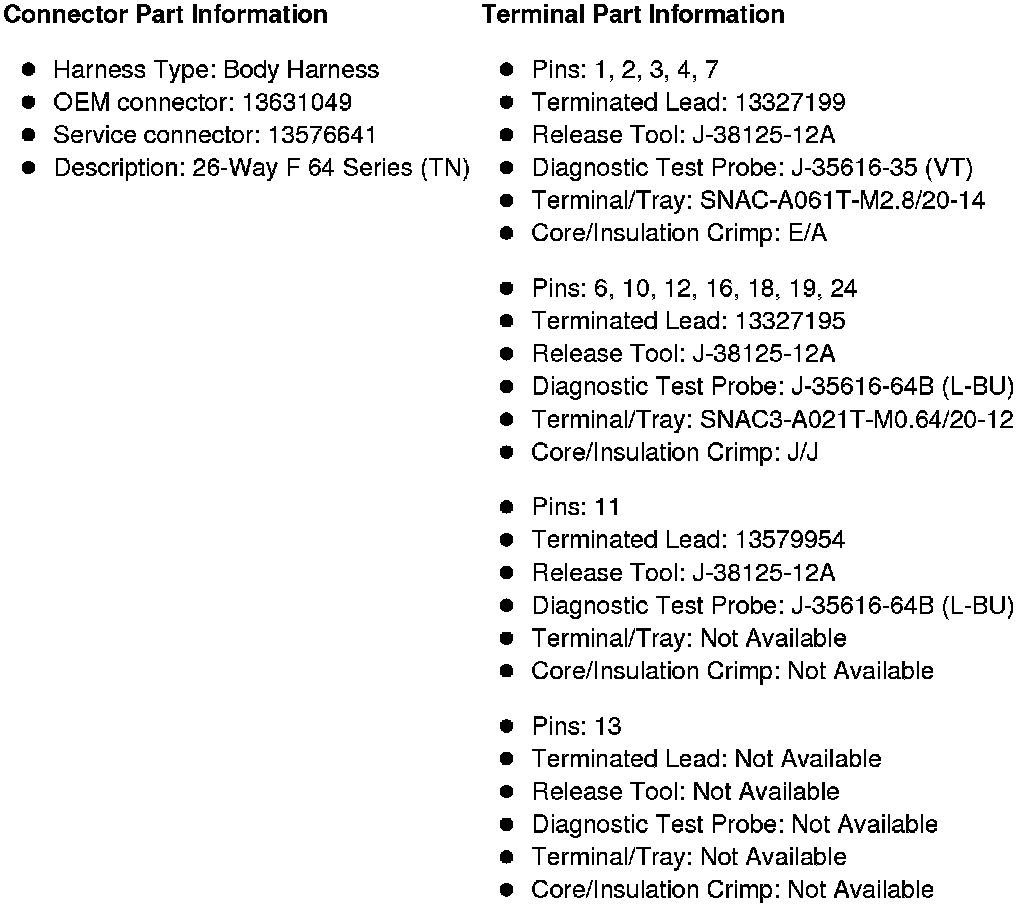

Component Connector End Views

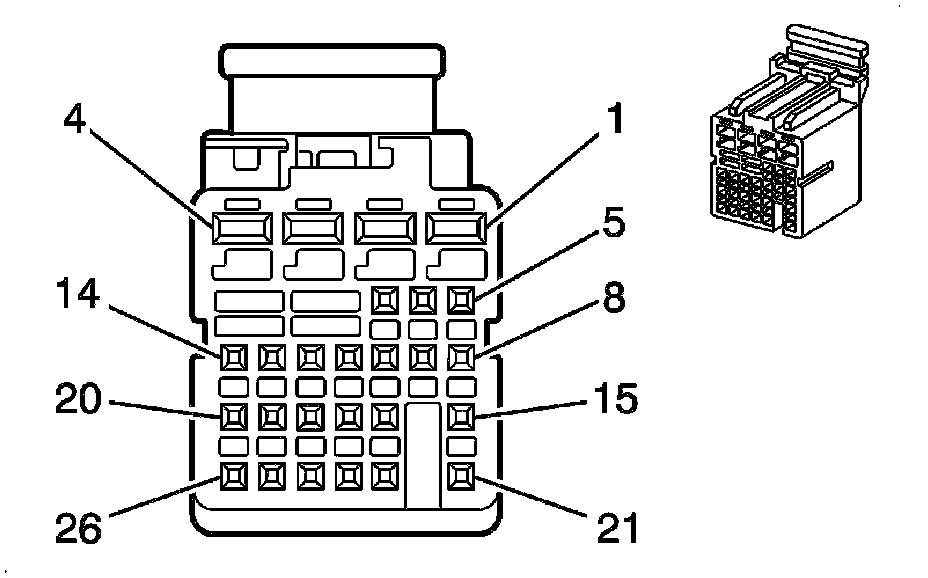

F102 Hybrid/EV Battery Pack Cable Cover (HP6)
