Outside Rearview Mirror Motor - Driver
Outside Rearview Mirror Motor - Driver

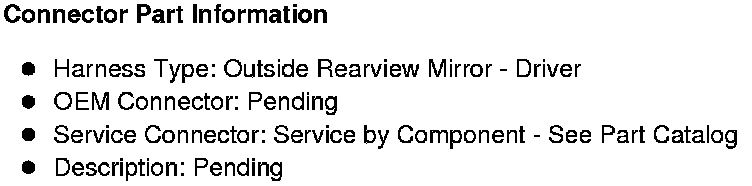

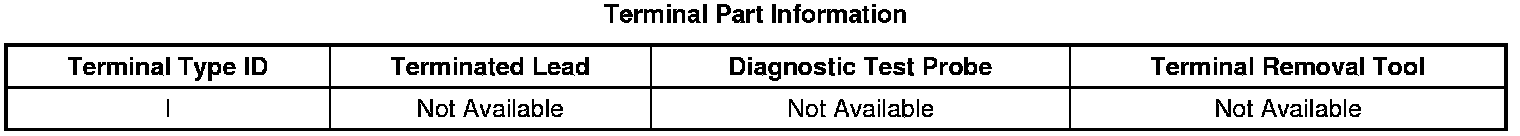

Component Connector End Views

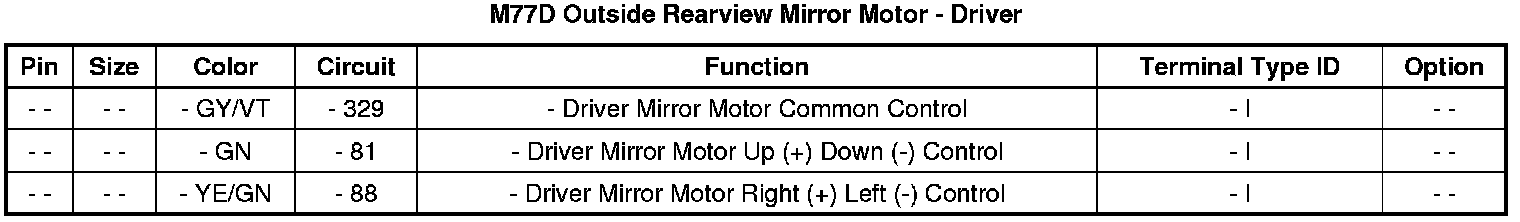

M77D Outside Rearview Mirror Motor - Driver
