Chevrolet
>>
2013
>>
Malibu L4-2.4L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
>>
Radio/HVAC Controls
Radio/HVAC Controls

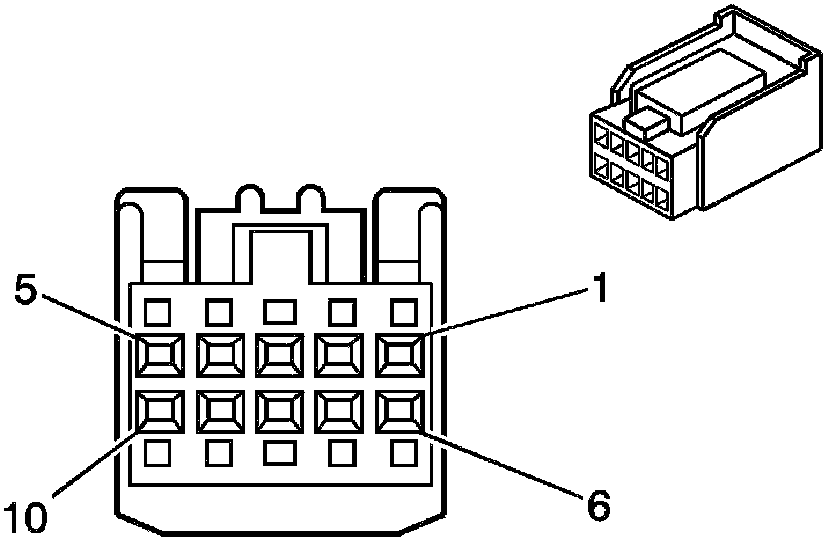

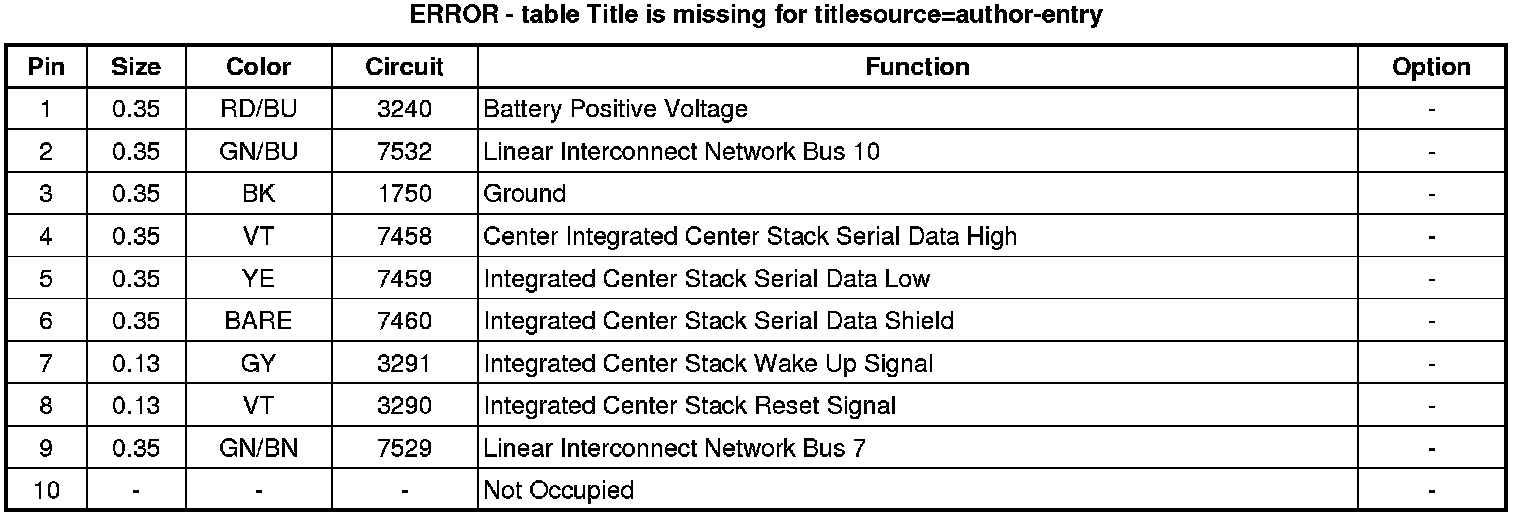

Component Connector End Views
A20 Radio/HVAC Controls
