Rear Door Handle Switch
>>
Door Handle Switch - Right Rear Exterior
Door Handle Switch - Right Rear Exterior
Component Connector End Views

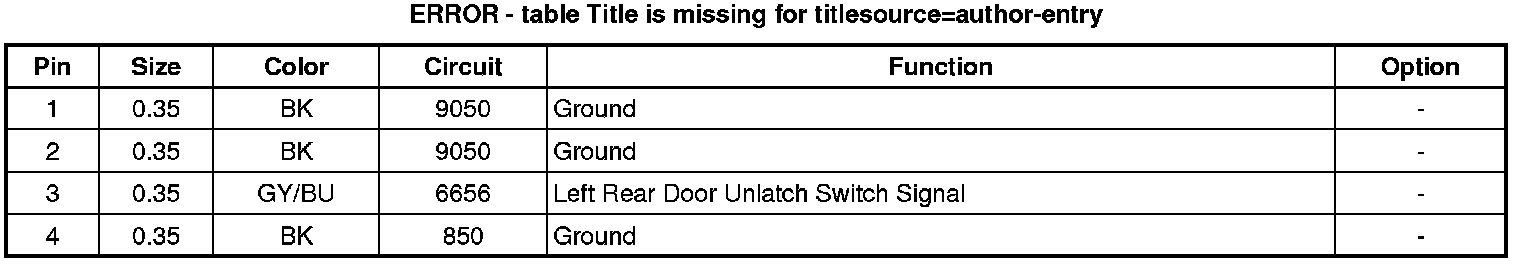

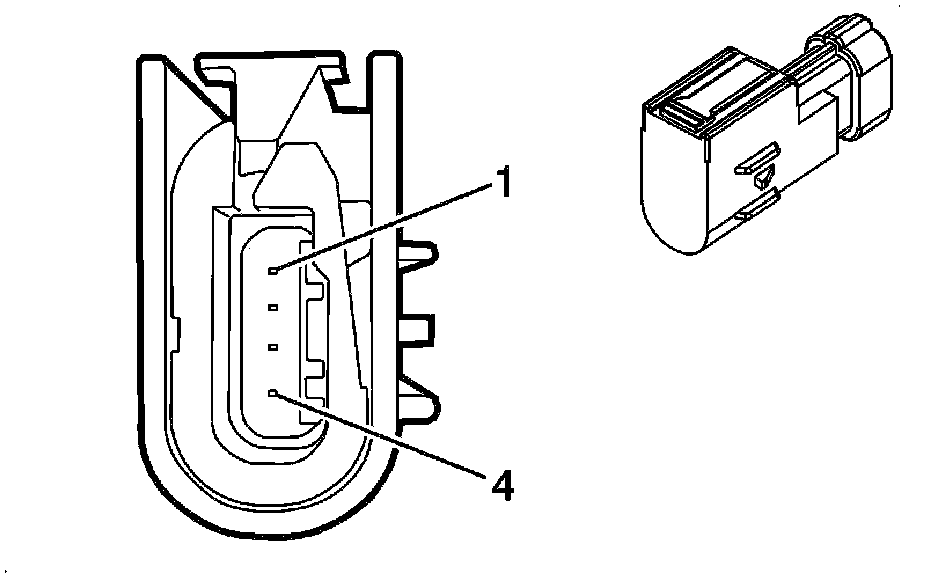

B27RR Door Handle Switch - Right Rear Exterior
