Speaker - Left Front Tweeter (UQA)
Speaker - Left Front Tweeter (UQA)

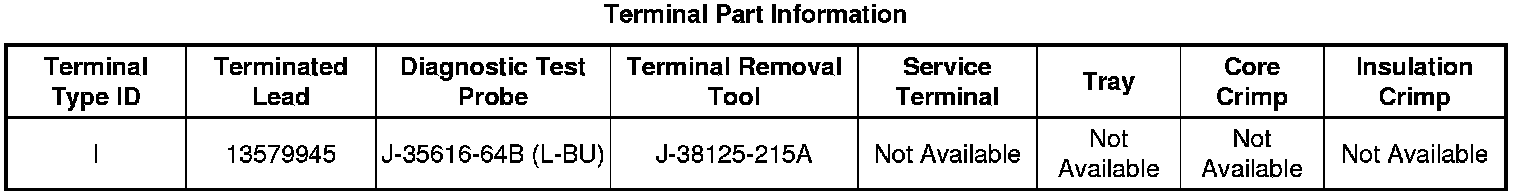

Component Connector End Views

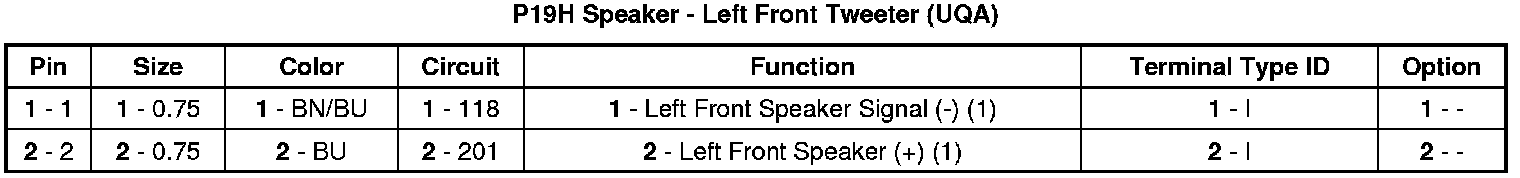

P19H Speaker - Left Front Tweeter (UQA)
