Transmission Shift Position Indicator Lamp
Transmission Shift Position Indicator Lamp
Component Connector End Views

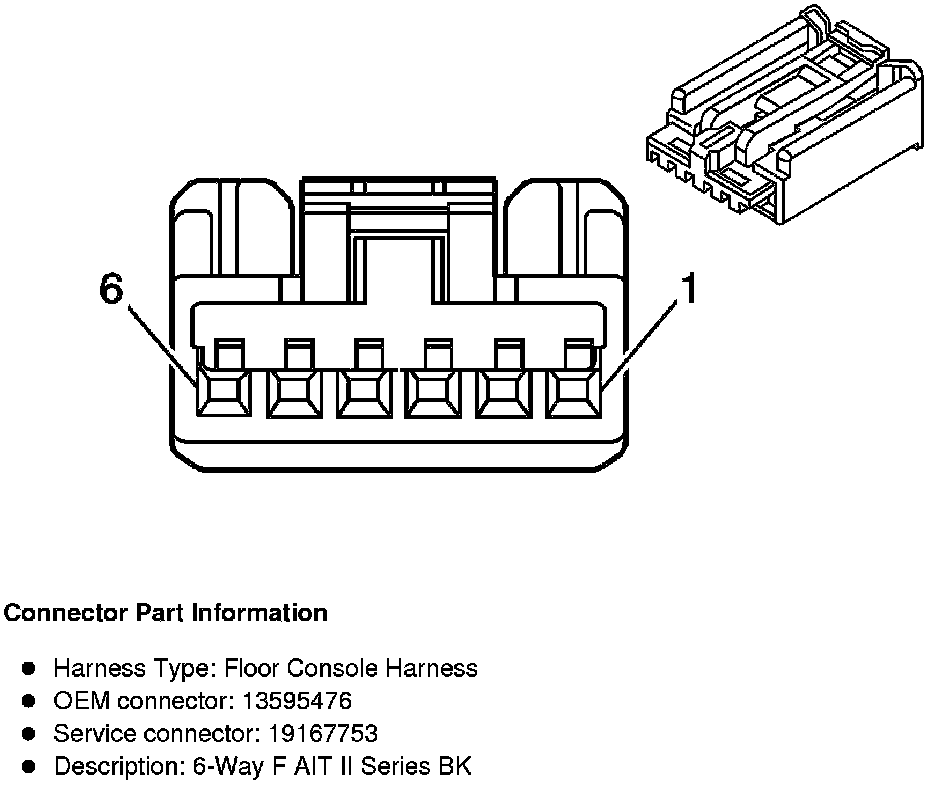

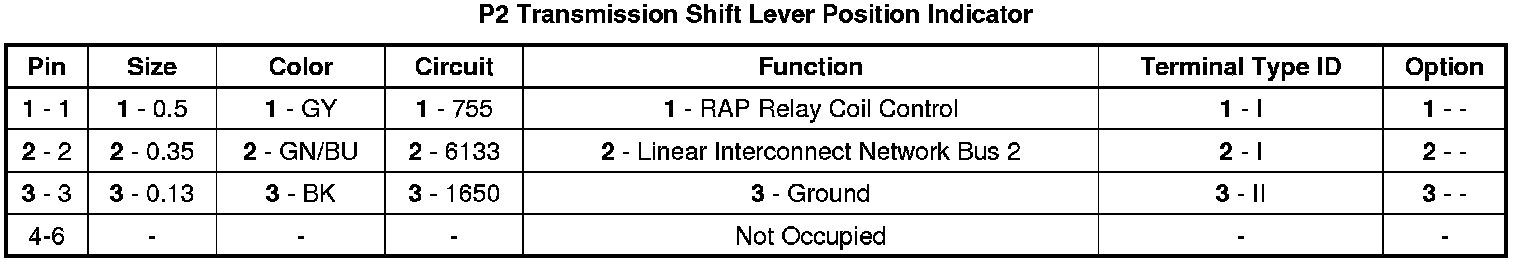

P2 Transmission Shift Lever Position Indicator
