HVAC - Automatic

HVAC Schematics

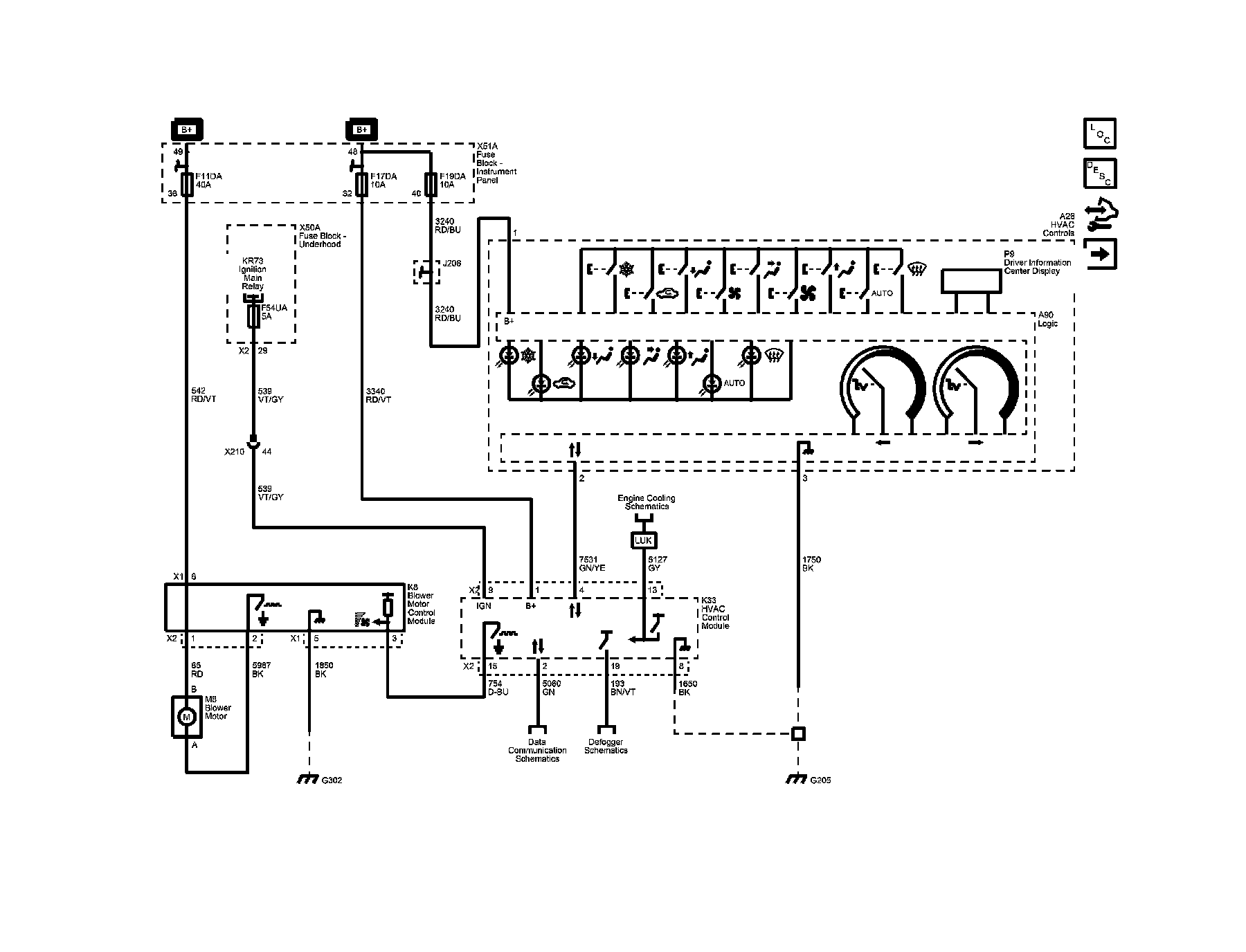

Power, Ground, Serial Data, HVAC and Blower Controls

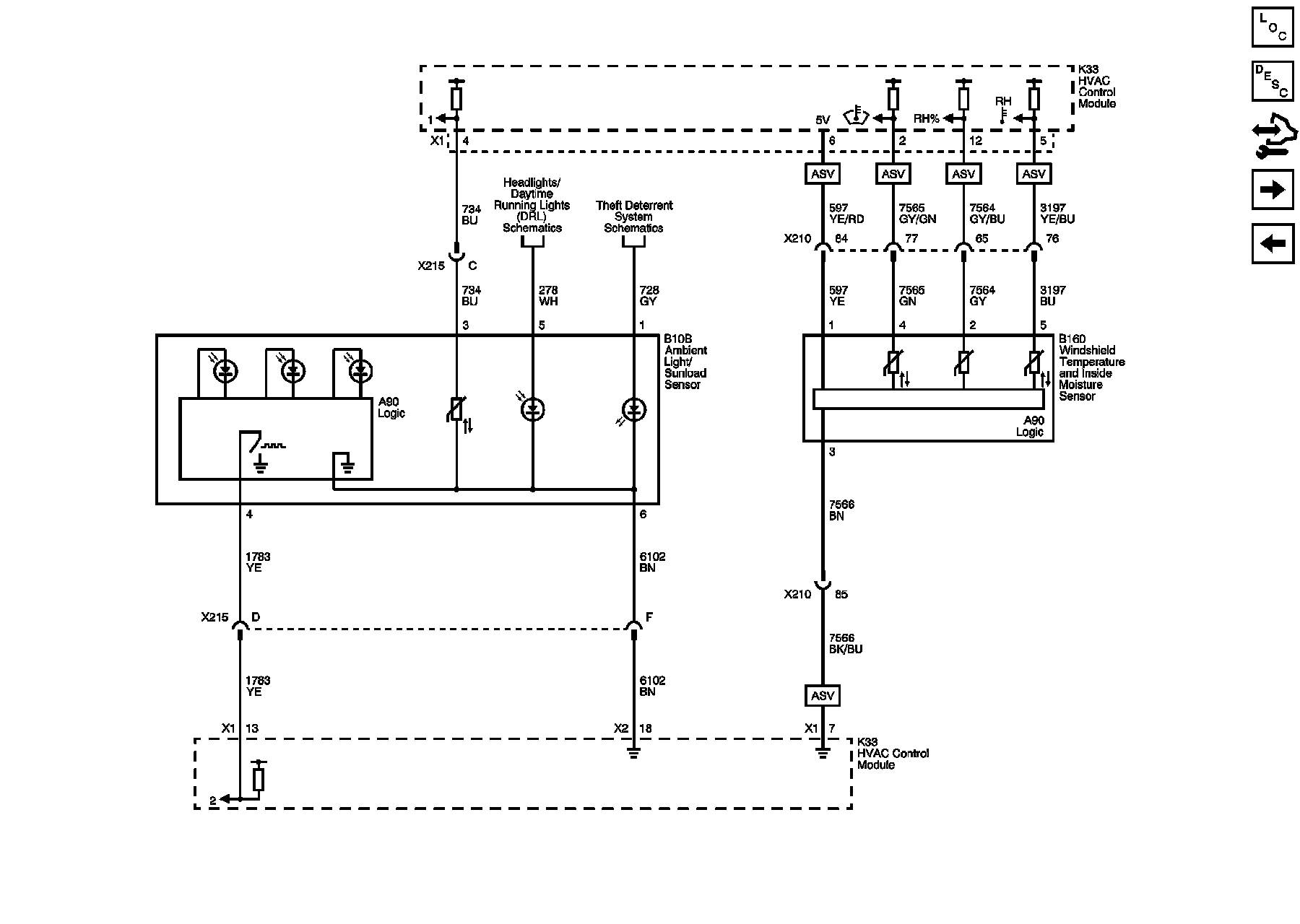

Ambient Light/Sunload, and Windshield Sensors (CJ2)

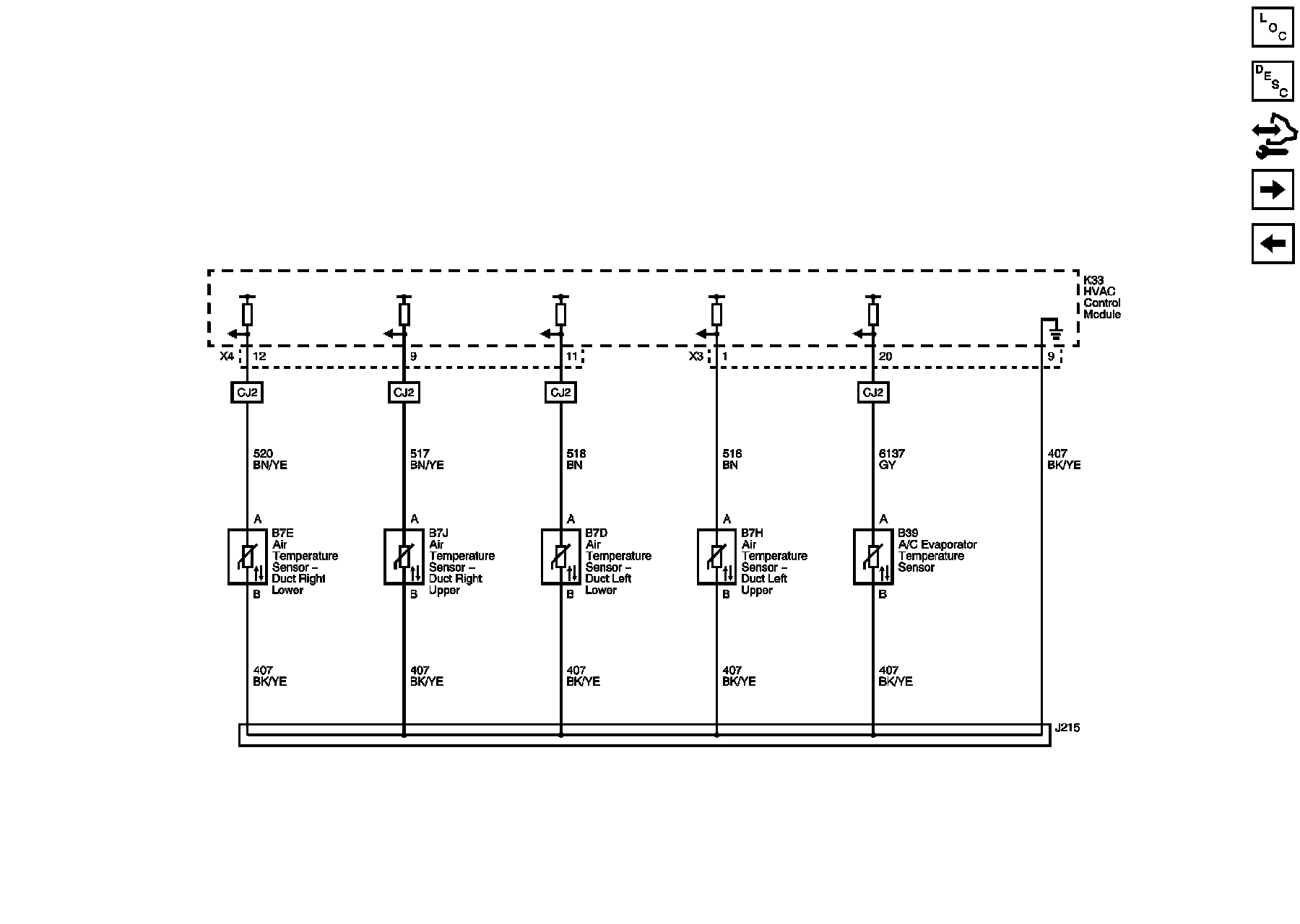

Temperature Sensors, Compressor Controls and Heater Coolant Pump

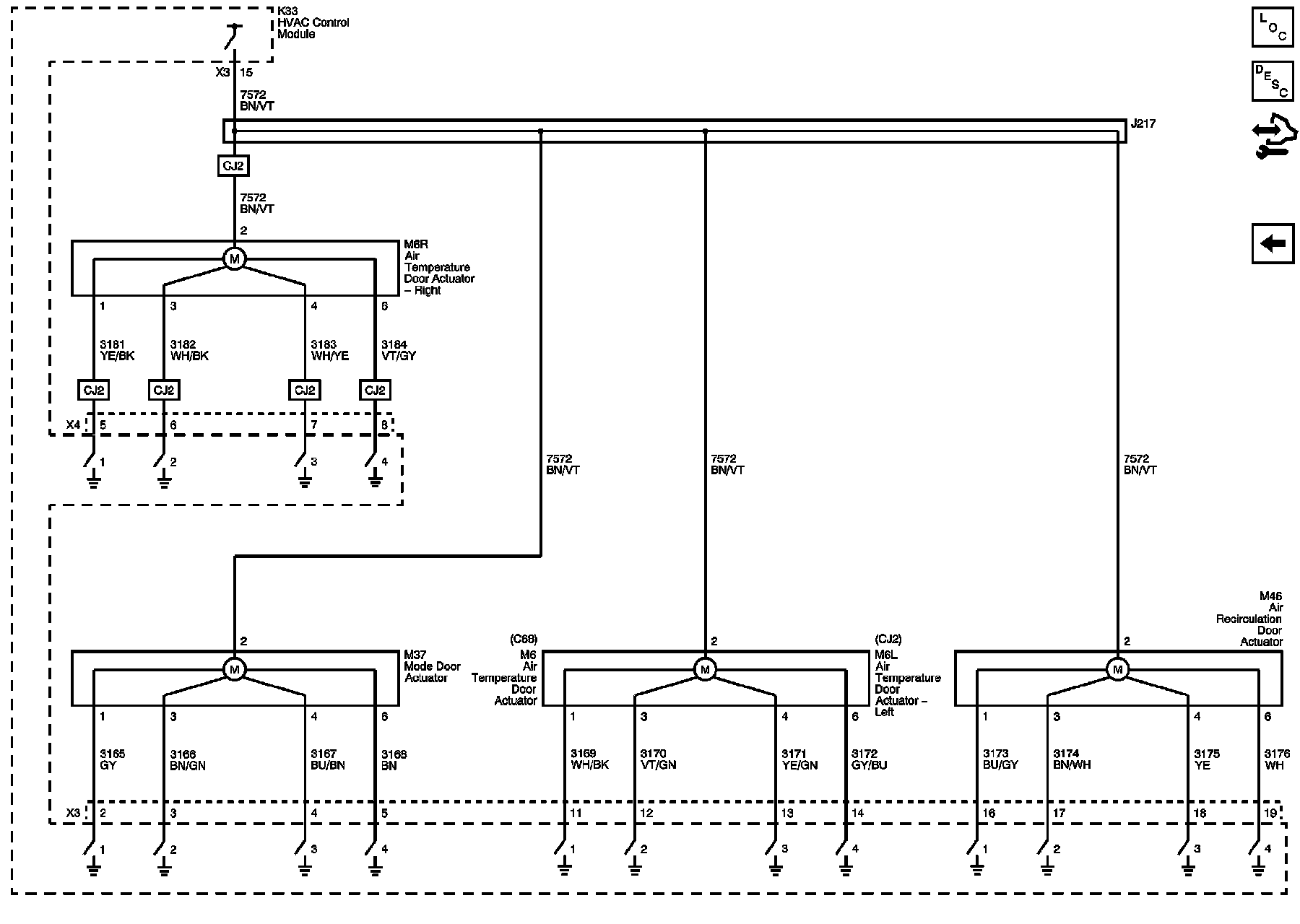

Mode and Temperature Control Actuators
