HVAC - Manual





HVAC Schematics

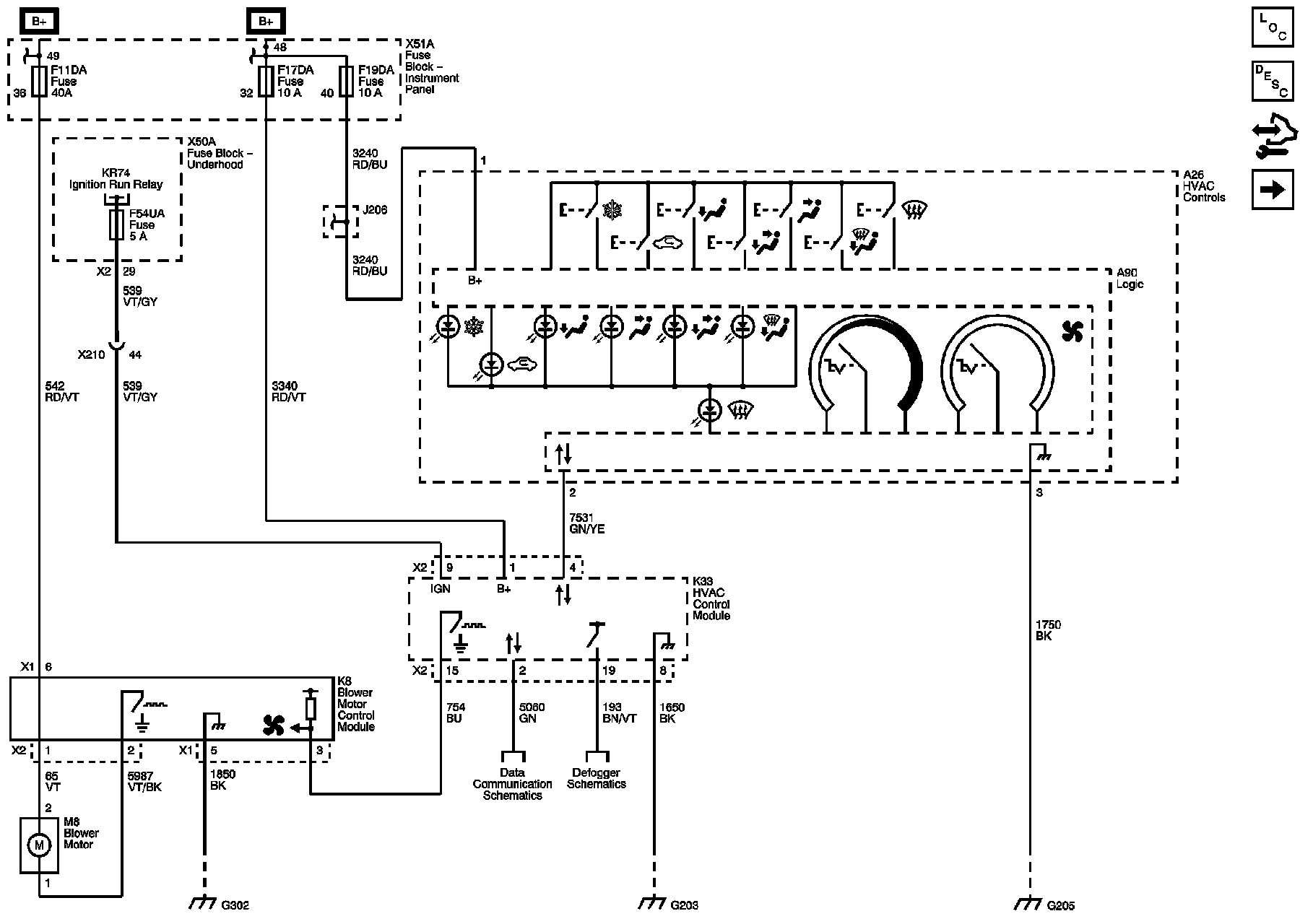

Power, Ground, Serial Data, Blower Control and HVAC Controls

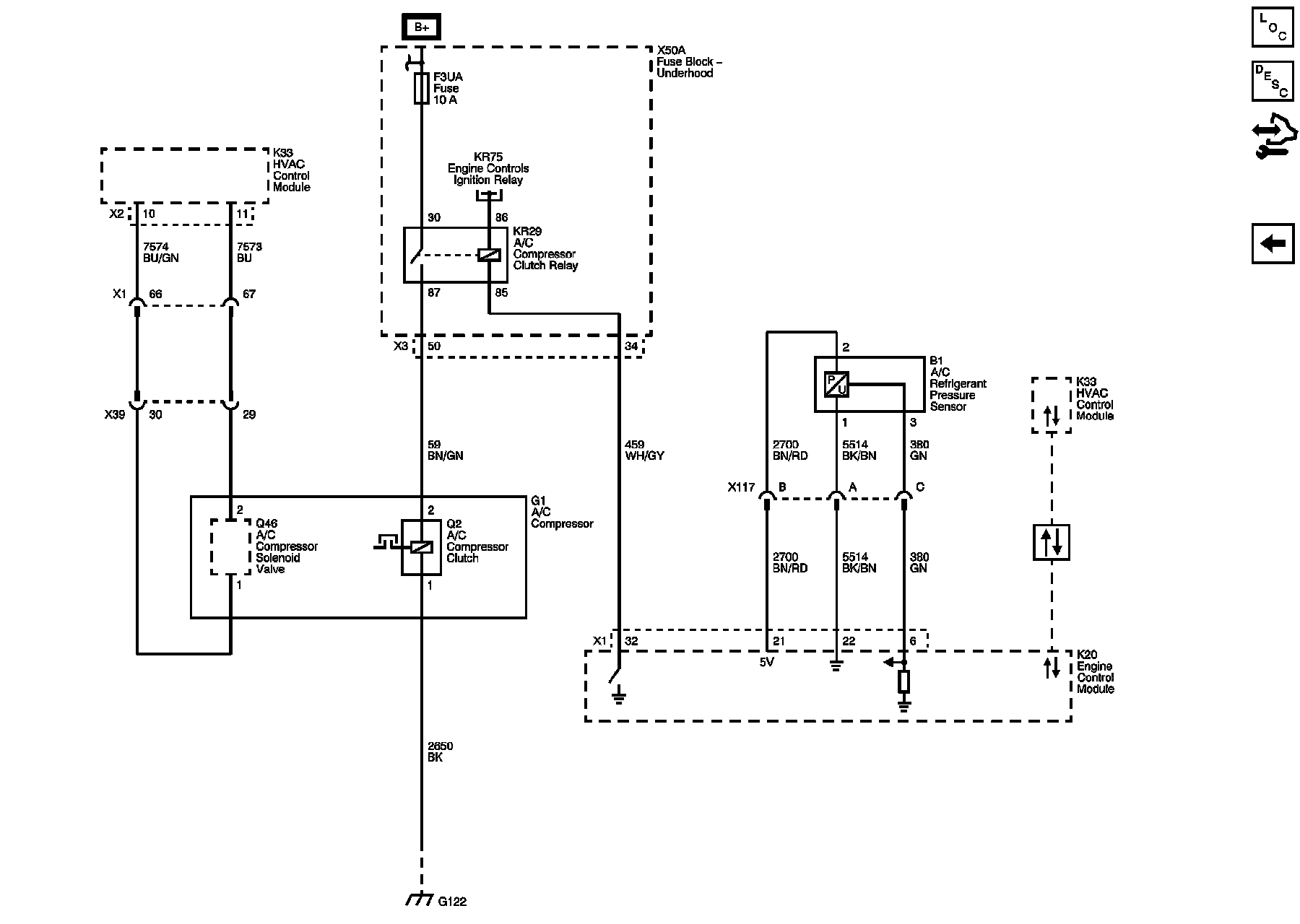

A/C Compressor Controls

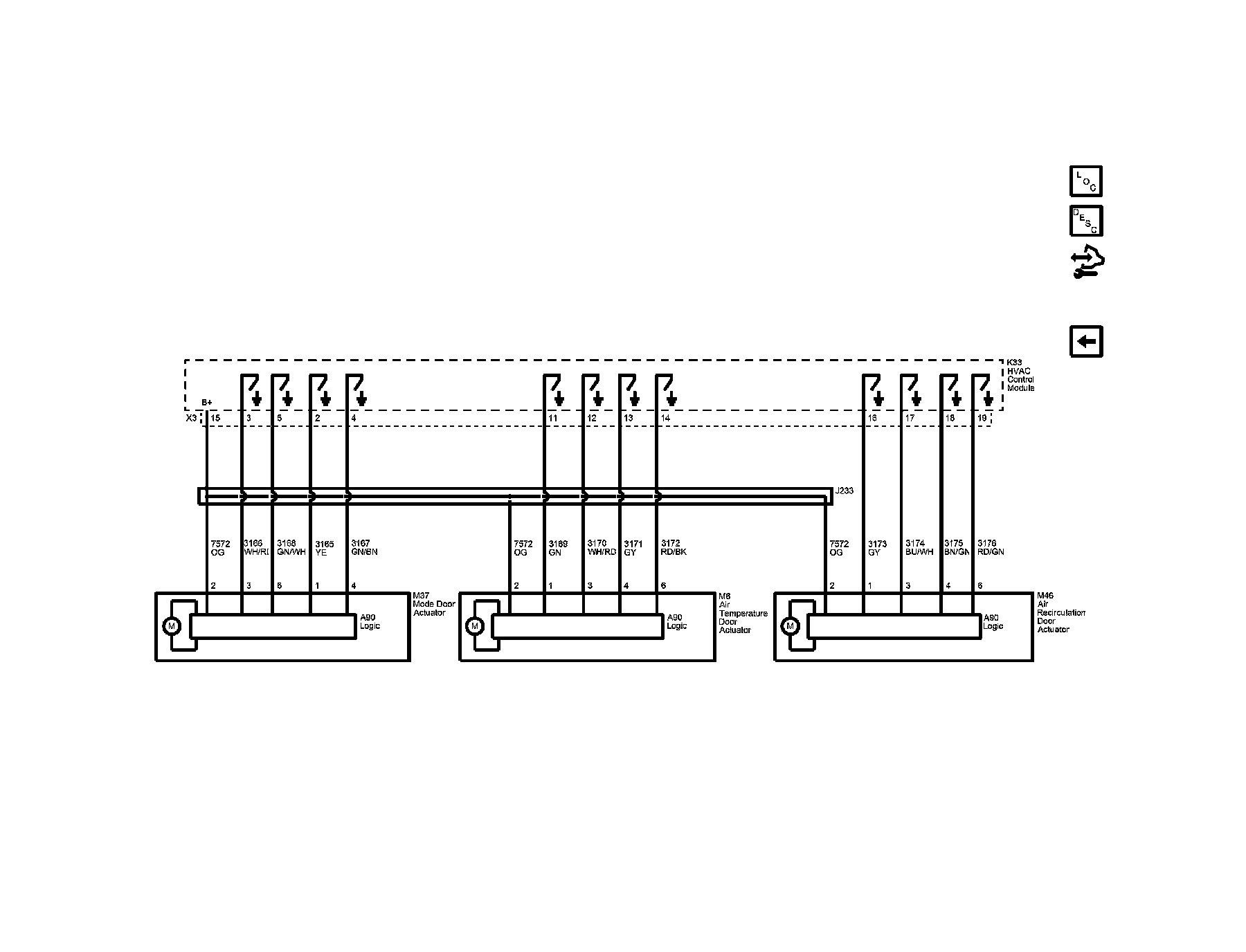

Mode and Temperature Control Actuators
