Seat Temperature Element





Heated/Cooled Seat Schematics

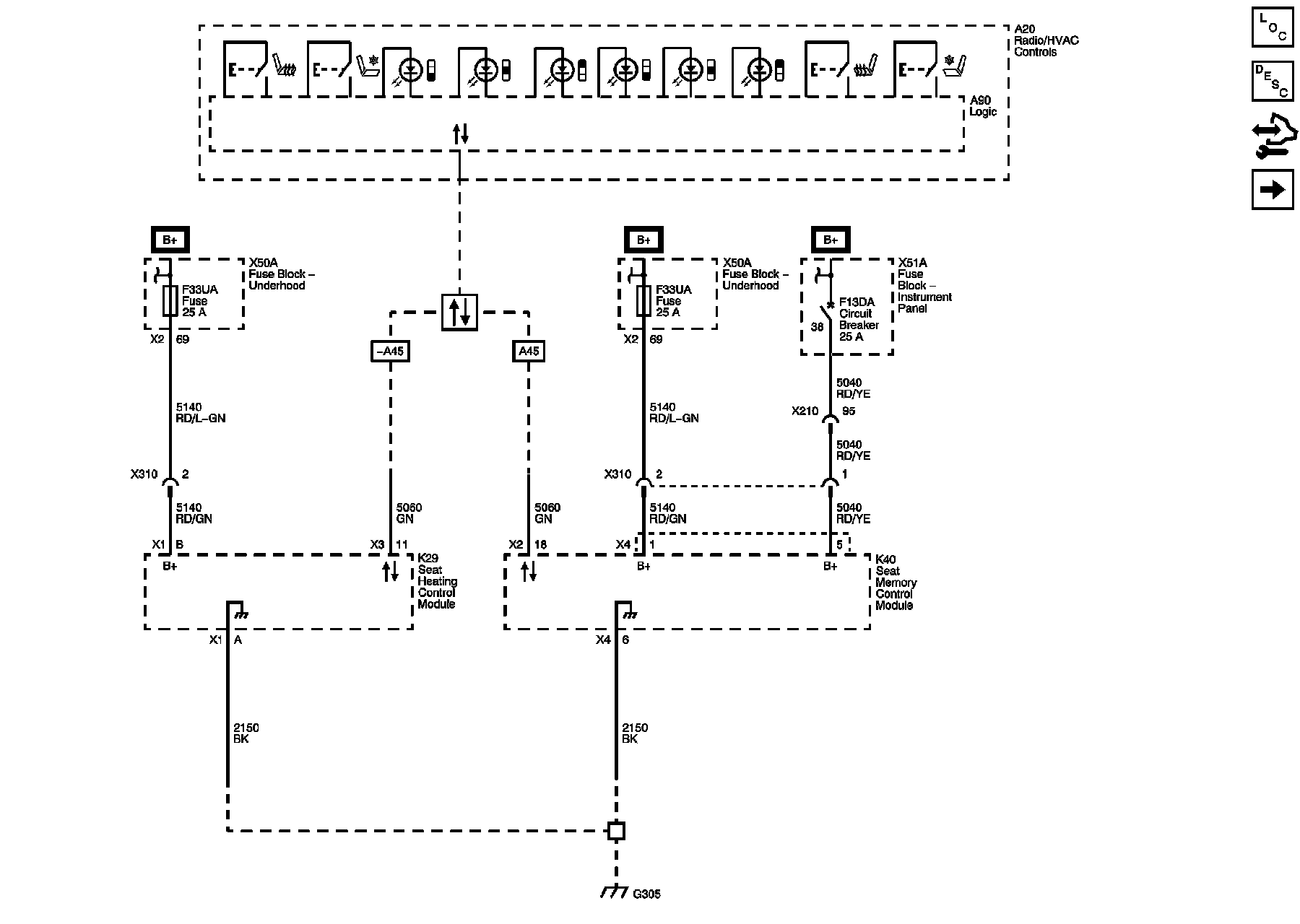

Power, Grounds, Serial Data, and Controls

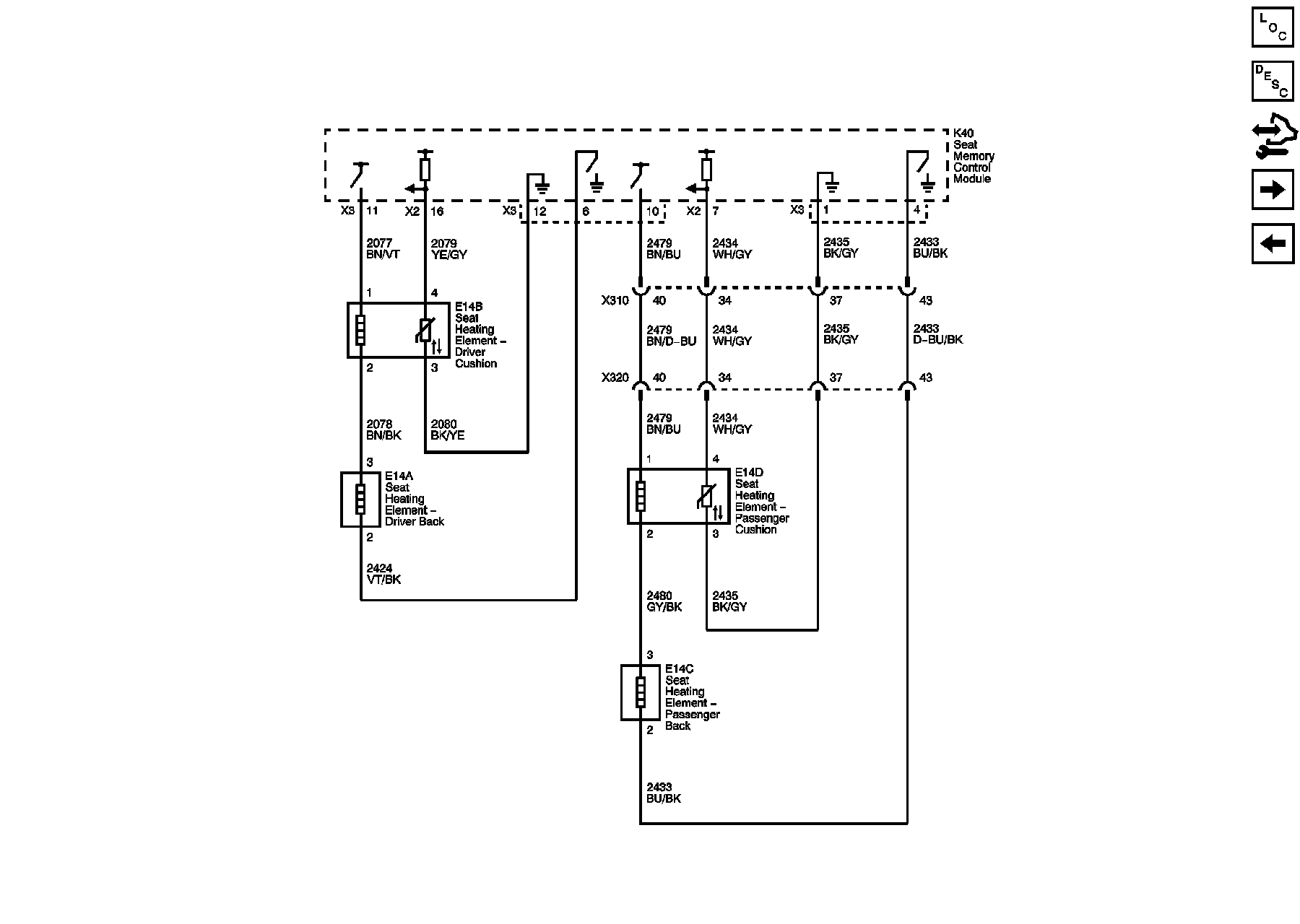

Seat Heating (KA1 with A45)

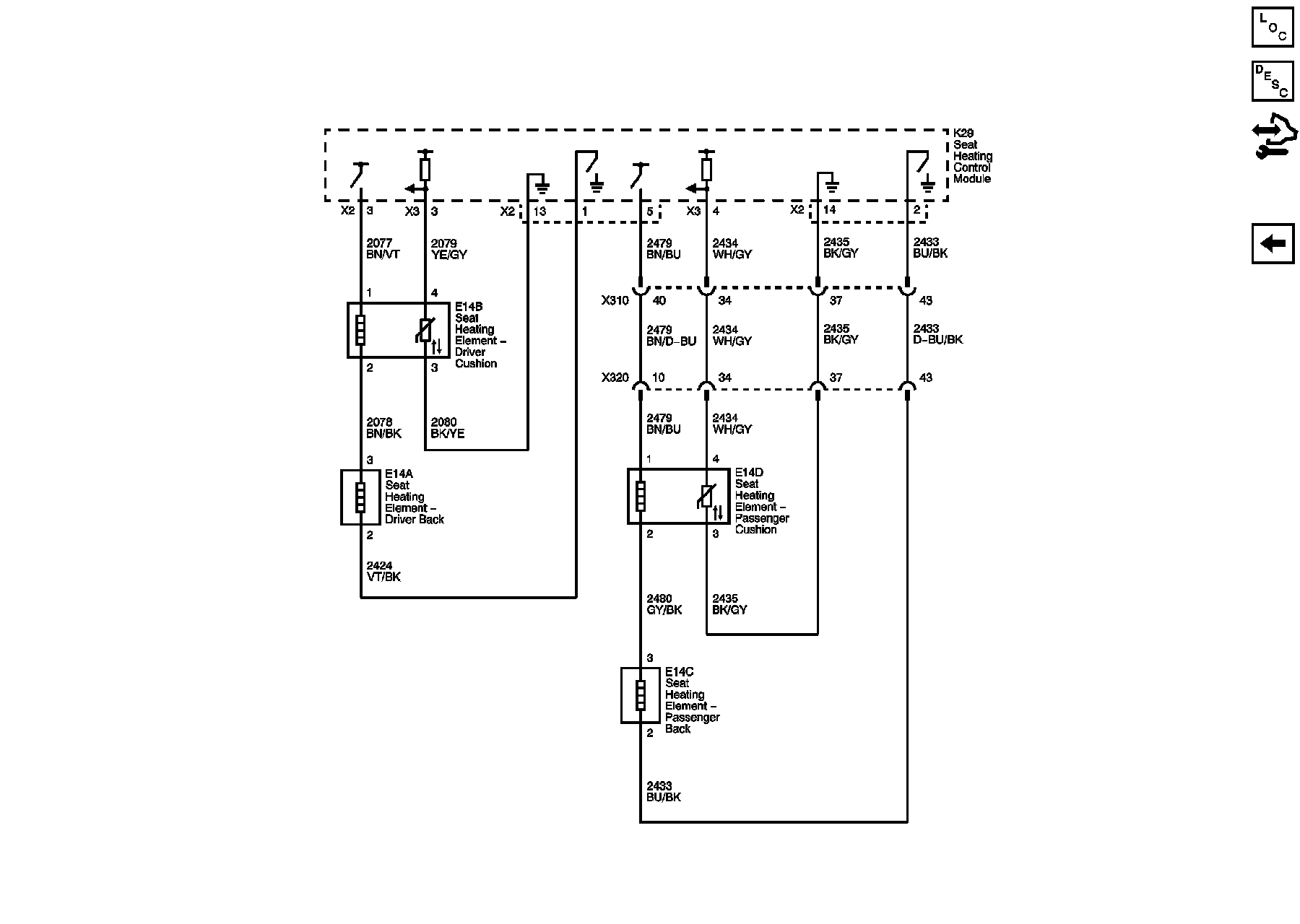

Seat Heating (KA1 without A45)
