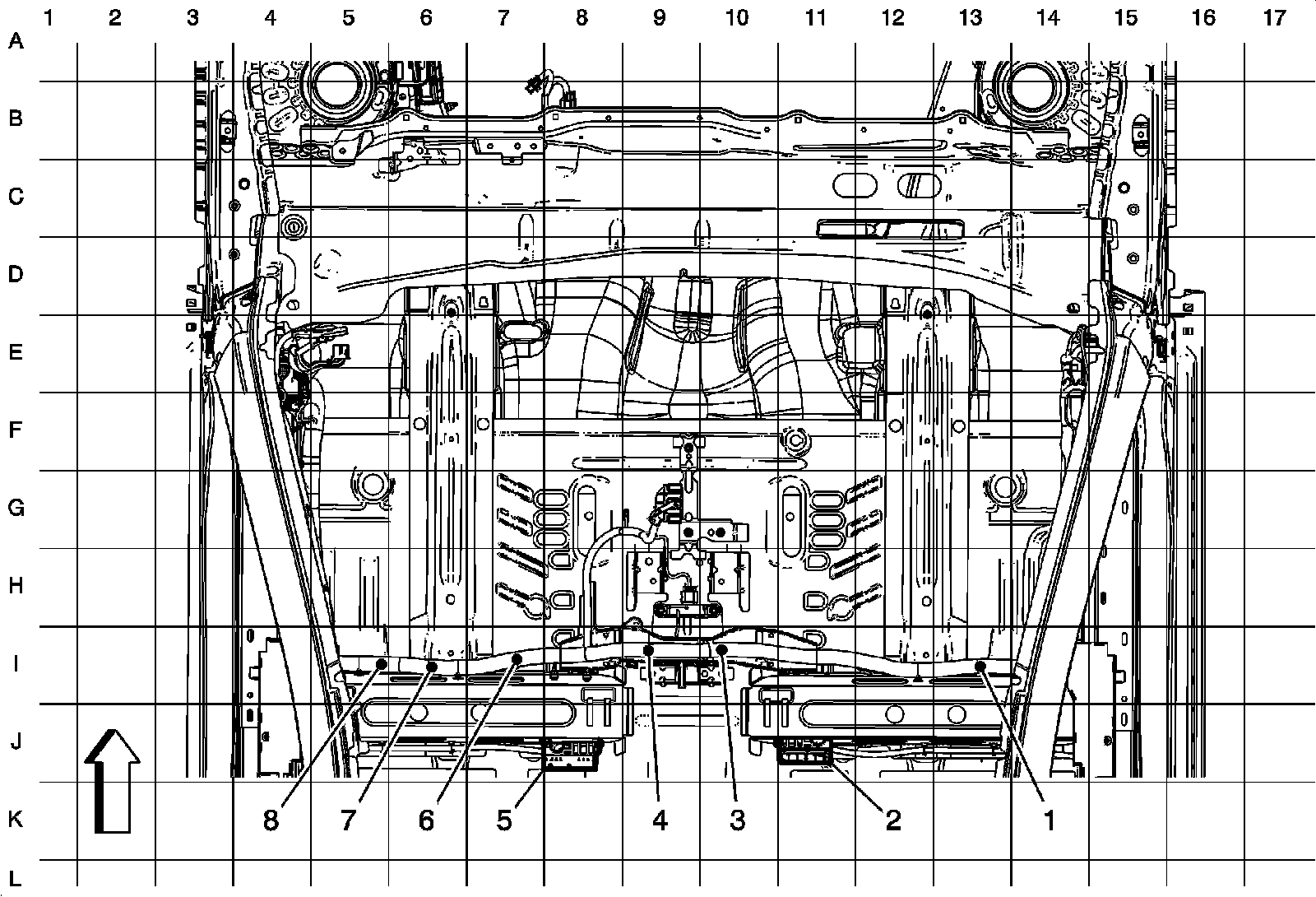

Floor of Passenger Compartment Harness Routing
Floor of Passenger Compartment Harness Routing

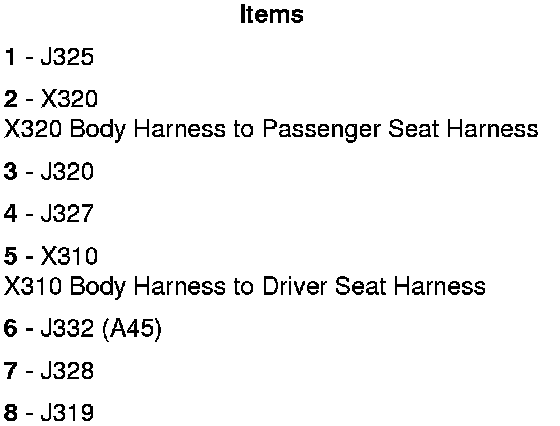

Harness Routing Views
Floor of Passenger Compartment Harness Routing
