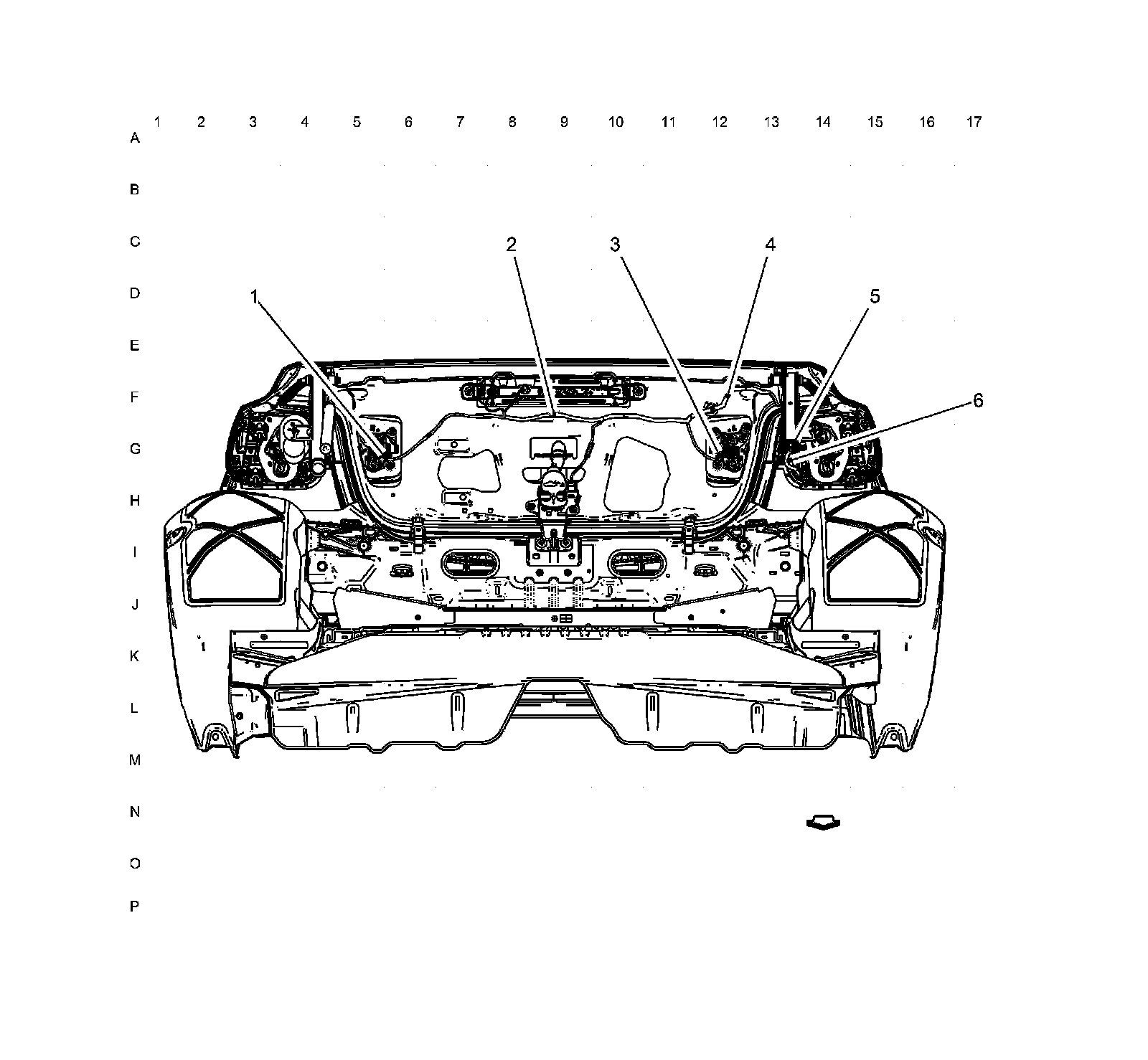

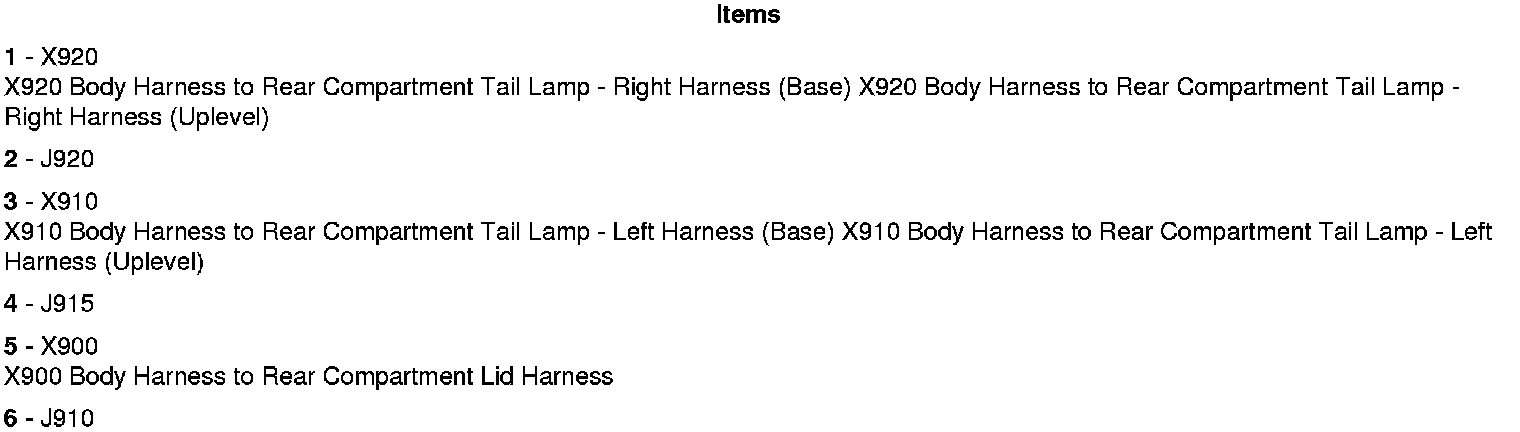

Rear Compartment Harness Routing Views
Rear Compartment Harness Routing Views
Harness Routing Views
Rear Compartment Harness Routing Views
