Hybrid/EV Cooling Schematics
Hybrid/EV Cooling Schematics
Hybrid/EV Cooling Schematics

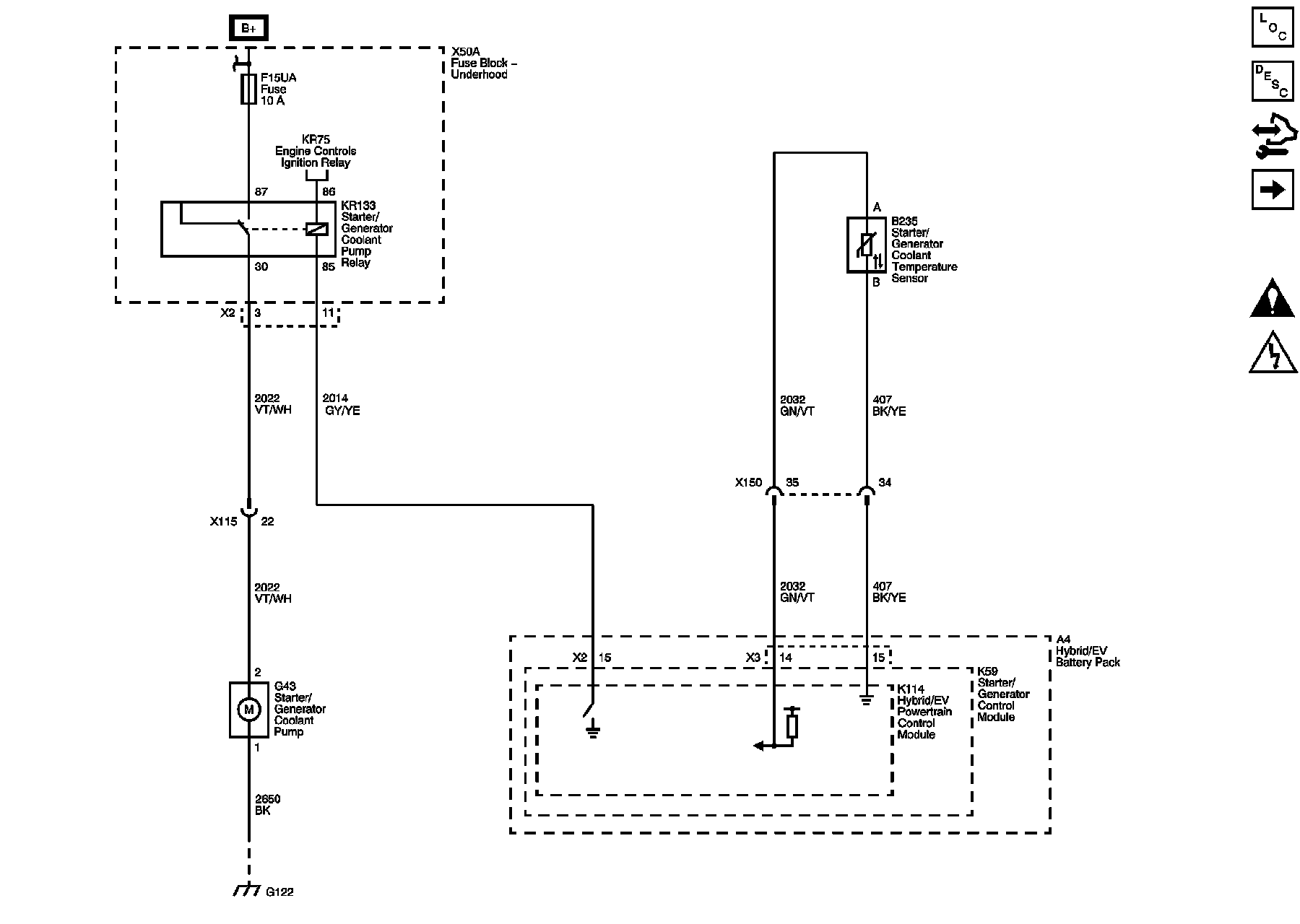

Starter/Generator

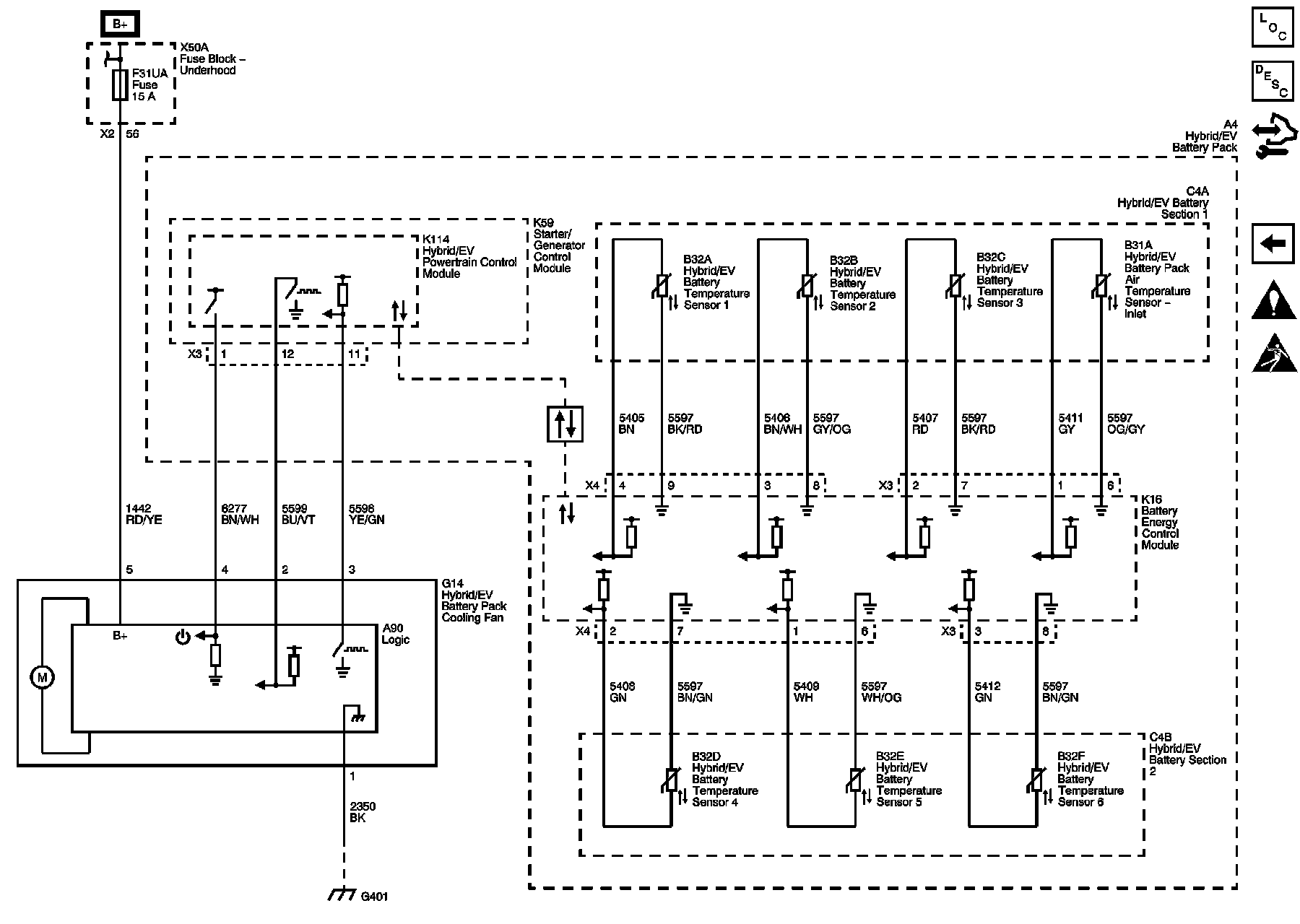

Battery Pack
