Accent Lamp - Left Instrument Panel
Accent Lamp - Left Instrument Panel

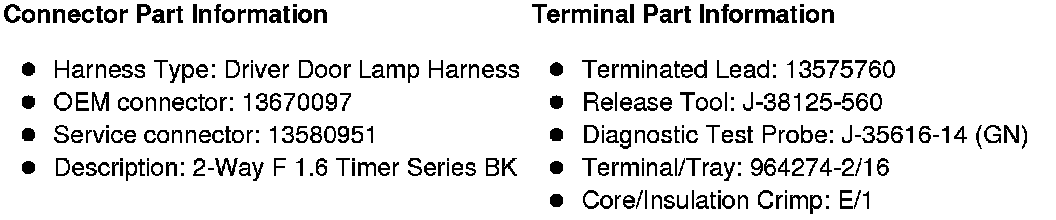

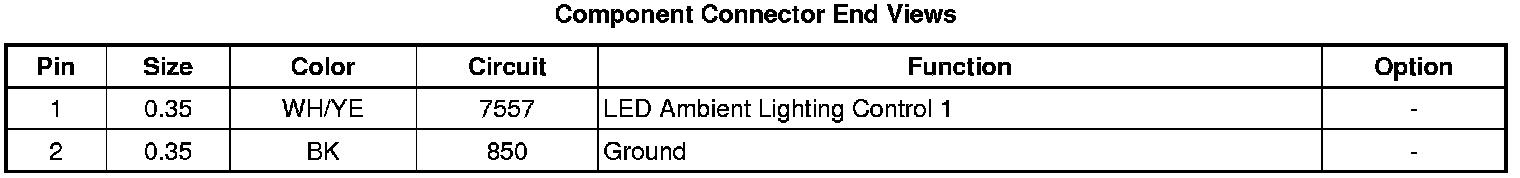

Component Connector End Views

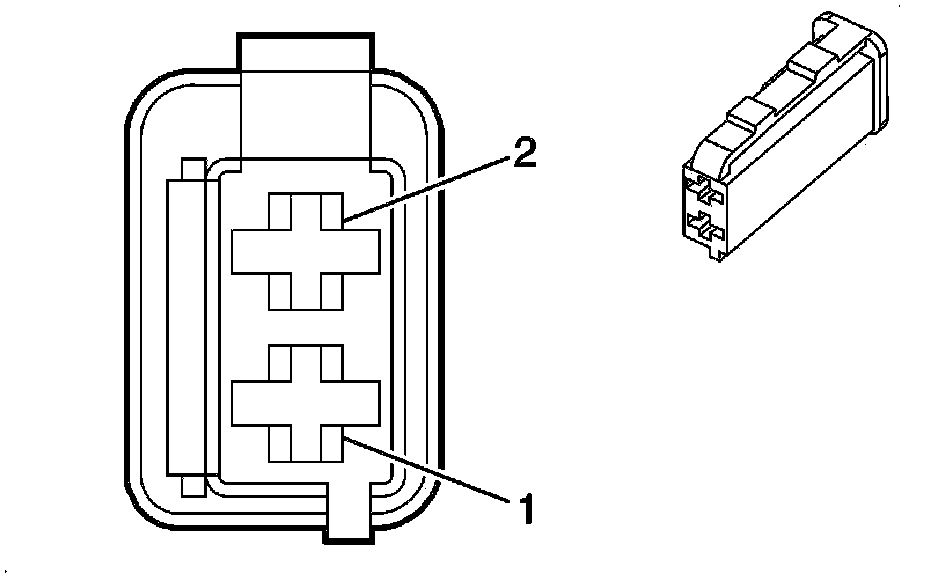

E1G Accent Lamp - Left Instrument Panel
