Dome/Reading Lamps - Front Overhead Console Right Front
Dome/Reading Lamps - Front Overhead Console Right Front
Component Connector End Views

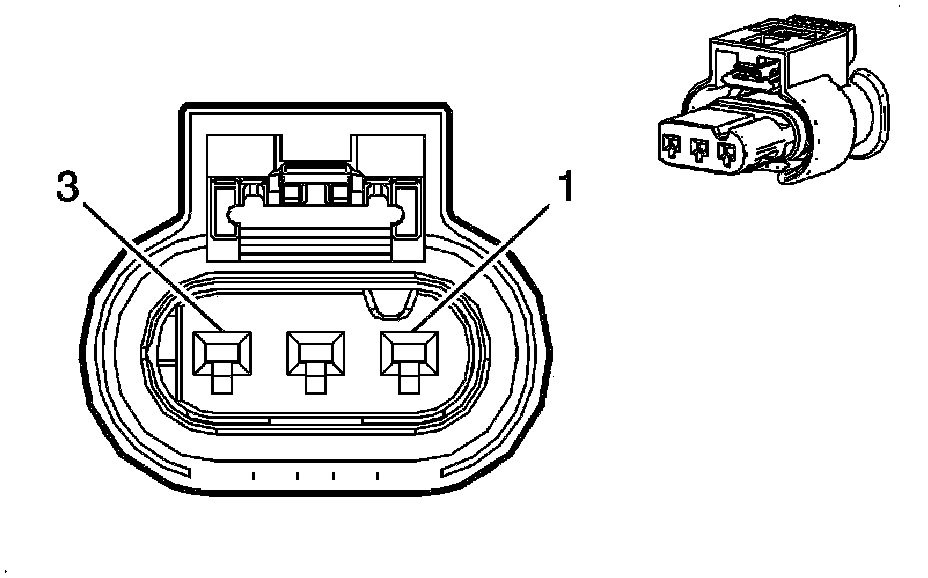

E37ER Dome/Reading Lamps - Front Overhead Console Right Front
