High Beam Solenoid Actuator - Left
High Beam Solenoid Actuator - Left

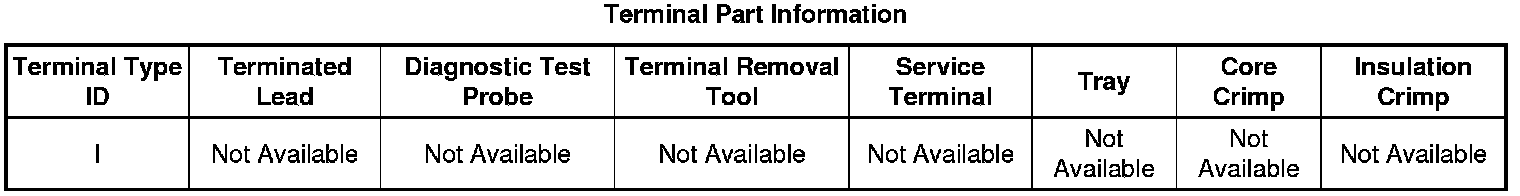

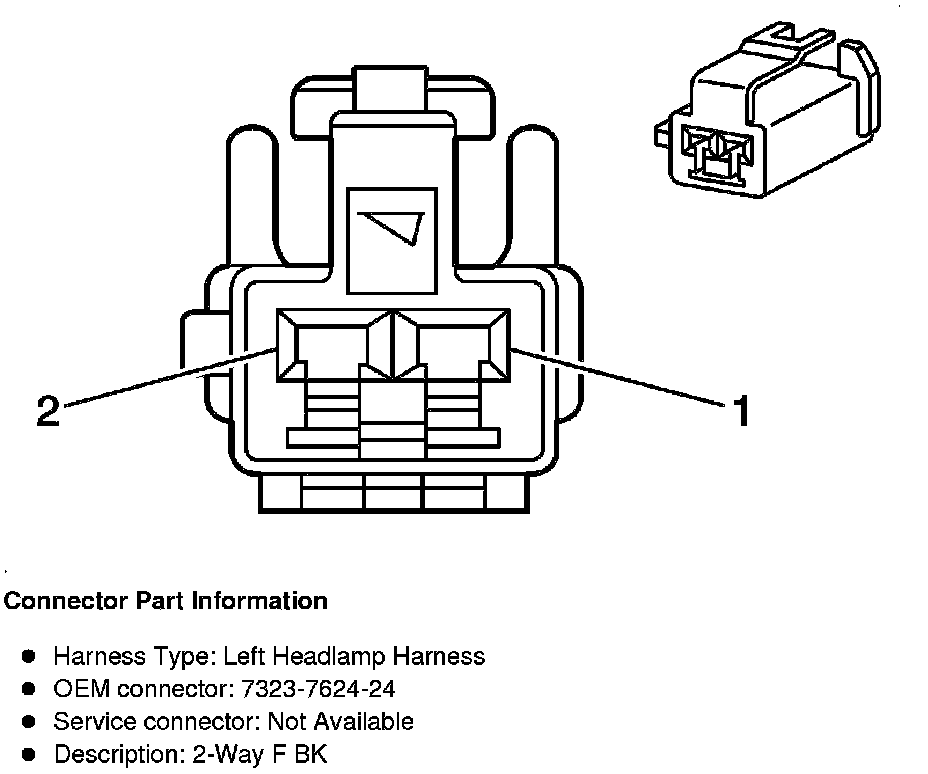

Component Connector End Views

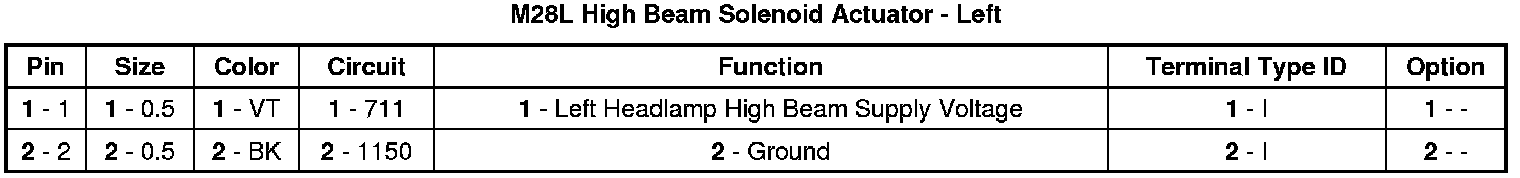

M28L High Beam Solenoid Actuator - Left
