High Beam Solenoid Actuator - Right
High Beam Solenoid Actuator - Right

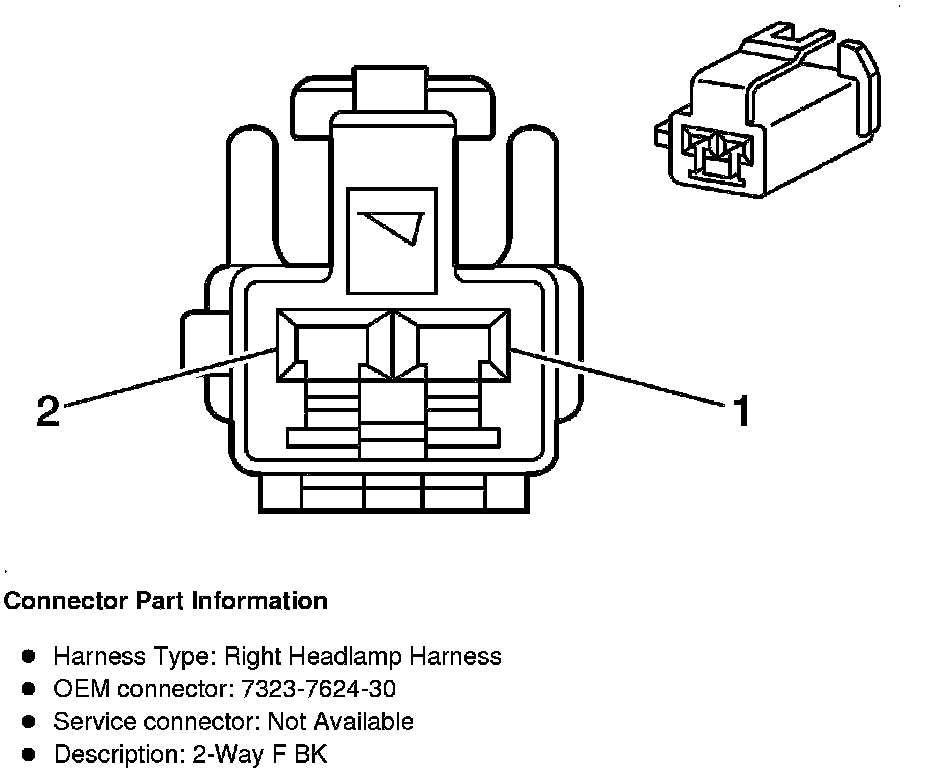

Component Connector End Views

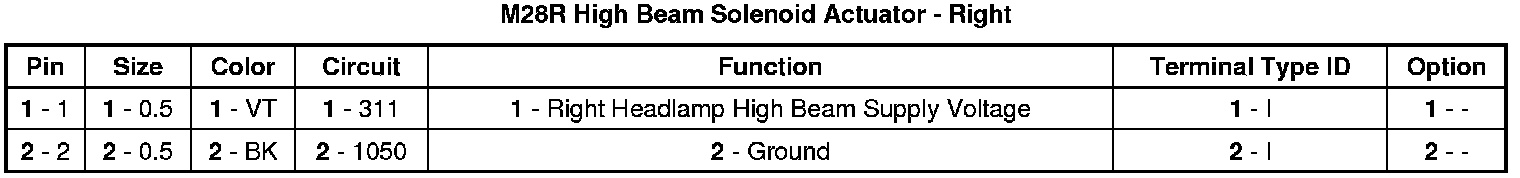

M28R High Beam Solenoid Actuator - Right
