Interior Backlighting Malfunction
Interior Backlighting Malfunction
Diagnostic Instructions
* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.
* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.
* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

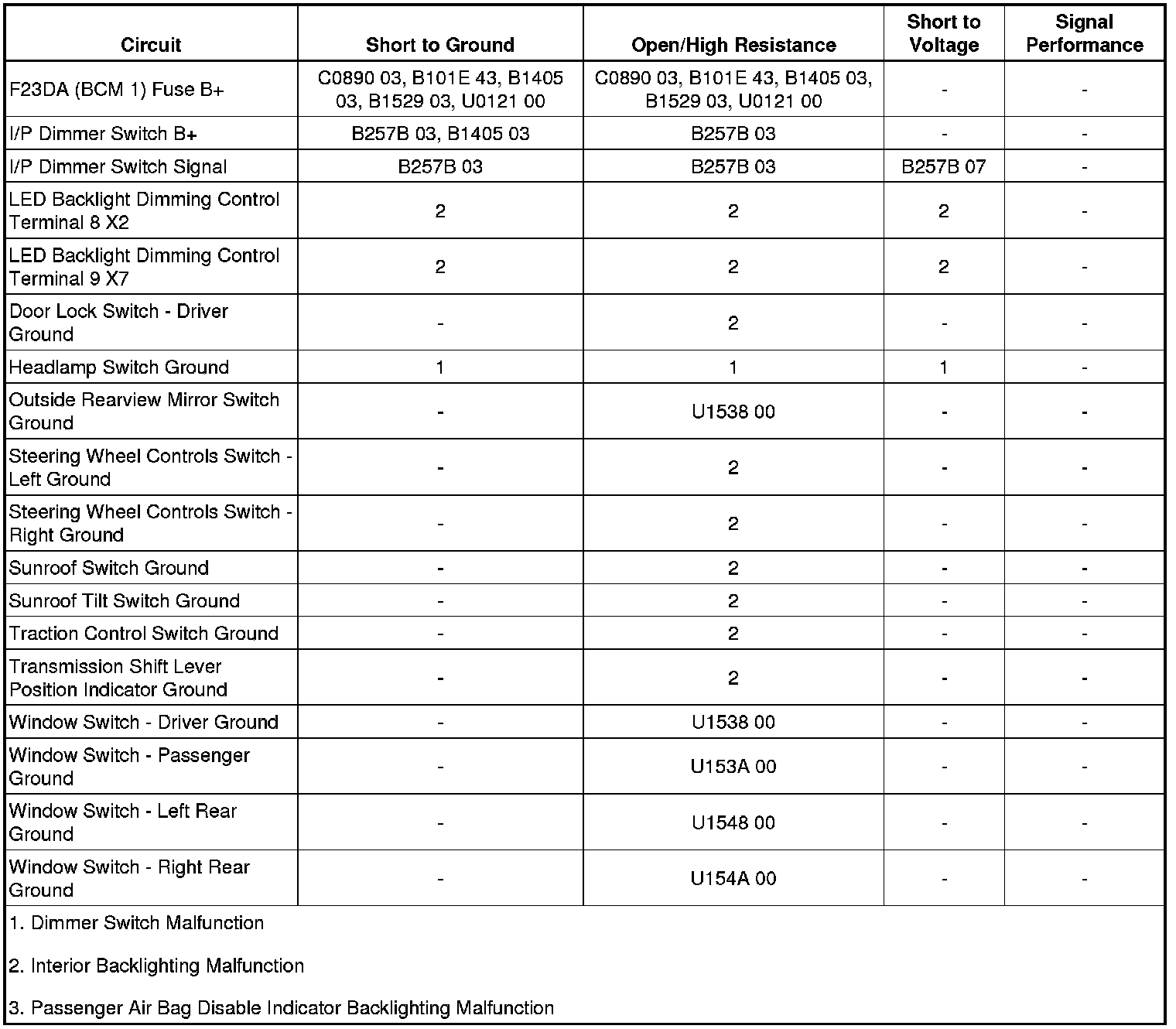

Diagnostic Fault Information
Circuit/System Description
The instrument panel (I/P) dimmer switch is used to increase and decrease the brightness of the interior backlighting components. The I/P dimmer switch provides a voltage signal to the body control module (BCM) that will increase as the brightness of the lights are increased and decrease as the brightness of the lights are decreased. The BCM provides a low reference signal and a B+ circuit to the I/P dimmer switch. When the I/P dimmer switch is placed in the desired position, the dimmed voltage setting is applied from the I/P dimmer switch through the I/P dimmer switch signal circuit to the BCM. The BCM interprets the signal and applies a pulse width modulated (PWM) voltage through the light emitting diode (LED) dimming 1 and dimming 2 control circuits illuminating the interior backlighting to the requested level of brightness.
Reference Information
Schematic Reference
* Interior Lights Dimming Schematics Interior Lights Dimming Schematics
* Automatic Transmission Controls Schematics 6T40 (MH8,MHH) - Automatic Transmission
Connector End View Reference
Component Connector End Views Sunshade - Left
Description and Operation
Interior Lighting Systems Description and Operation Interior Lighting Systems
Electrical Information Reference
* Circuit Testing Circuit Testing
* Connector Repairs Connector Repairs
* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections
* Wiring Repairs Wiring Repairs
Scan Tool Reference
Control Module References Control Module References for scan tool information
Circuit/System Verification
1. Ignition ON.
2. Verify the scan tool LED Backlight Dimming Command parameter changes between a high percentage to a low percentage while operating the dimmer switch from high to low.
• If the parameter does not change
Refer to Dimmer Switch Malfunction.
• If the parameter changes
3. Verify the backlighting components turn ON and OFF while commanding the LED Backlight Dimming ON and OFF with a scan tool.
• If the backlighting components do not turn ON and OFF
Refer to Interior Backlighting Malfunction.
• If the backlighting components turn ON and OFF
4. All OK.
Circuit/System Testing
Dimmer Switch Malfunction
1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector at the S30 Headlamp Switch, ignition ON.
2. Test for B+ between the B+ circuit terminal 1 and ground.
• If less than B+
1. Ignition OFF, disconnect the X3 harness connector at the K9 Body Control Module.
2. Test for infinite resistance between the B+ circuit and ground.
• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance
3. Test for less than 2 ohms in the B+ circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 Body Control Module.
• If B+
3. Verify a test lamp does not illuminate between the B+ circuit terminal 1 and the signal circuit terminal 12.
• If the test lamp illuminates
1. Ignition OFF, disconnect the X1 harness connector at the K9 Body Control Module.
2. Test for infinite resistance between the signal circuit and ground.
• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance, replace the K9 Body Control Module.
• If the test lamp does not illuminate
4. Test for B+ between the B+ circuit terminal 1 and the signal circuit terminal 12.
• If less than B+
1. Ignition OFF, disconnect the X1 harness connector at the K9 Body Control Module, ignition ON.
2. Test for less than 1 V between the signal circuit terminal 12 and ground.
• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V
3. Test for less than 2 ohms in the signal circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 Body Control Module.
• If B+
5. Test or replace the S30 Headlamp Switch.
Interior Backlighting Malfunction
Note: Each component with backlighting may need to be disconnected to isolate a short to voltage or short to ground. Use the schematics to identify the following:
* Backlighting components the vehicle is equipped with
* Each component's control and ground circuit terminals
* Component locations on the backlighting control circuit
1. Ignition OFF, scan tool disconnected, all doors closed, all accessories OFF, disconnect the harness connector at the component with inoperative backlighting. It may take up to 2 minutes for all vehicle systems to power down.
2. Test for less than 15 ohms between the appropriate ground circuit terminal and ground.
• If 15 ohms or greater
1. Ignition OFF.
2. Test for less than 2 ohms in the ground circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, repair the open/high resistance in the ground connection.
• If less than 15 ohms
3. Connect a test lamp between the appropriate control circuit terminal and ground.
4. Verify the test lamp turns ON and OFF when commanding the LED Backlight Dimming ON and OFF with a scan tool.
• If the test lamp is always OFF
1. Ignition OFF, disconnect the appropriate harness connector at the K9 Body Control Module.
2. Test for infinite resistance between the control circuit and ground.
• If less than infinite resistance, repair the short to ground on the circuit.
• If infinite resistance
3. Test for less than 2 ohms in the control circuit end to end.
• If 2 ohms or greater, repair the open/high resistance in the circuit.
• If less than 2 ohms, replace the K9 Body Control Module.
• If the test lamp is always ON
1. Ignition OFF, disconnect the appropriate harness connector at the K9 Body Control Module, ignition ON.
2. Test for less than 1 V between the control circuit terminal and ground.
• If 1 V or greater, repair the short to voltage on the circuit.
• If less than 1 V, replace the K9 Body Control Module.
• If the test lamp turns ON and OFF
5. Test or replace the component with inoperative backlighting.
Repair Instructions
Perform the Diagnostic Repair Verification Verification Tests after completing the repair.
* Headlamp Switch Replacement Service and Repair
* Dome and Reading Lamp Switch Replacement Dome and Reading Lamp Switch Replacement
* Instrument Panel Multifunction Switch Replacement Service and Repair
* Control Module References Control Module References for BCM replacement, programming, and setup
